| Item | Specifications |
| LCD Panel Characteristics | |
| Screen Size | 10.1″ (7″ to 55″ available upon request) |
| Resolution | 1280× 800 Full HD |
| Aspect Ratio | 4:3 |
| Brightness | 1000–1500 cd/m² (Sunlight Readable) |
| Viewing Angle | 80°/80° (H), 80°/80° (V) / Full Viewing Angle Optional |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | ≥ 50,000 Hours |
| Touchscreen Characteristics (Optional) | |
| Touch Type | Projected Capacitive (PCAP) / 5-Wire Resistive / Infrared (IR) / Non-Touch |
| Surface Hardness | ≥ 7H (PCAP) / ≥ 3H (Resistive) |
| Touch Durability | ≥ 50 Million Touches (PCAP) / ≥ 35 Million Touches (Resistive) |
| Light Transmission | ≥ 88% (Resistive) / ≥ 90% (PCAP) |
| I/O & Power Interface | |
| Video Inputs | 1 × HDMI, 1 × VGA (Optional: DVI, DisplayPort) |
| Touch Interface | 1 × USB (Type-B / Type-A) or RS232 COM for touch controller |
| Audio | 1 × 3.5mm Audio In/Out (Built-in Speakers Optional) |
| Power Input | Standard DC 12V / Optional DC 9–36V Wide Voltage Input |
| Mechanical & Environmental | |
| Enclosure Material | Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal |
| Surface Finish | Sandblasted Anodized / Powder Coated / CNC Brushed |
| Housing Color | Default Black / Silver / Custom RAL Colors |
| IP Protection | Front Panel IP65 (Full Enclosure IP65/IP67/IP69K Optional) |
| Mounting Options | VESA 75×75 / 100×100 mm, Panel Mount, Open Frame, Desktop Stand |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Certifications | CE, FCC, RoHS Compliant |
High Brightness Monitor, Stainless Steel Monitor, Touch Screen Monitor, Waterproof Monitor

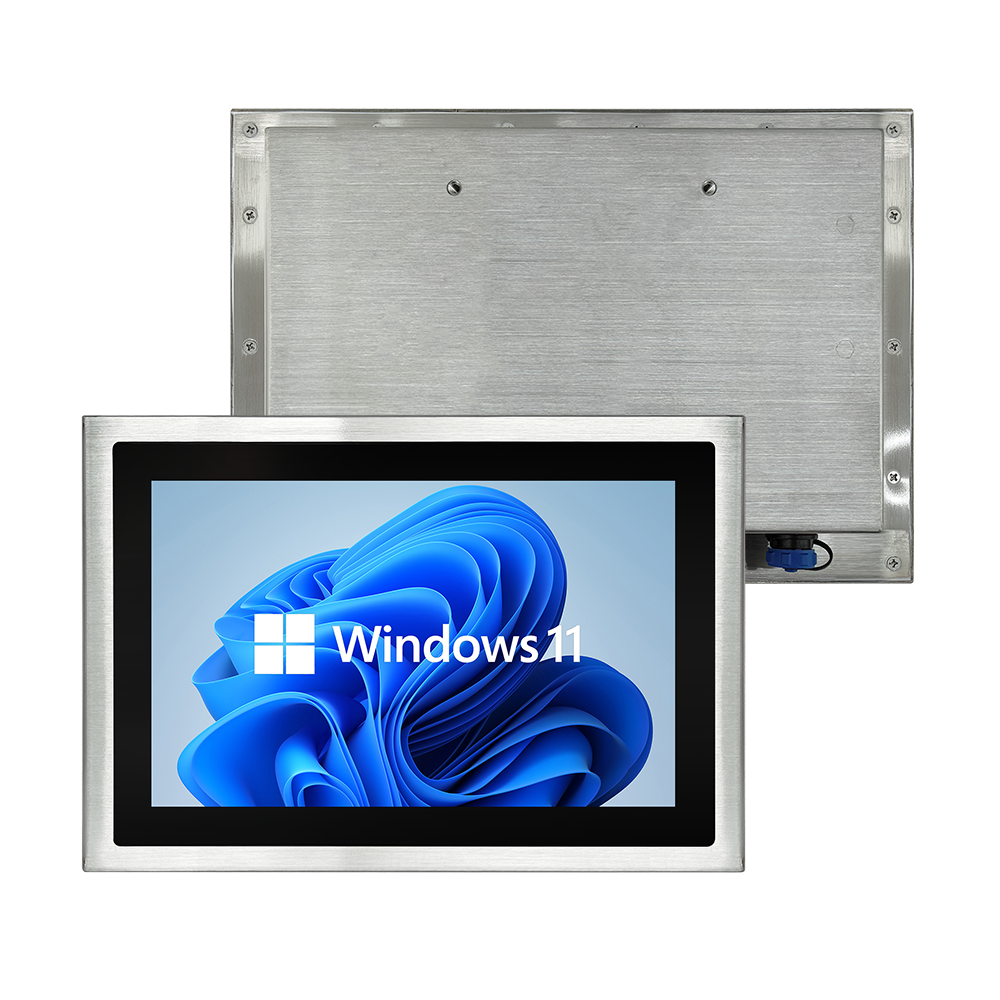

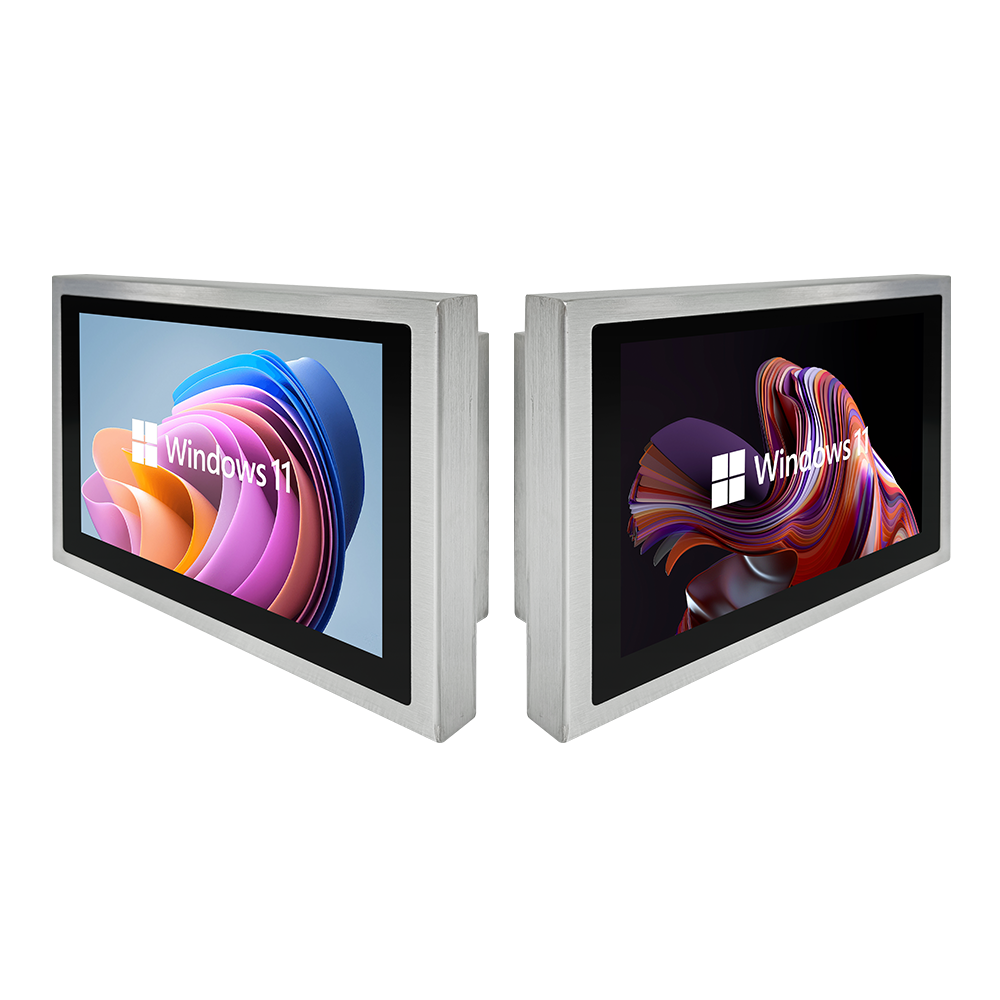

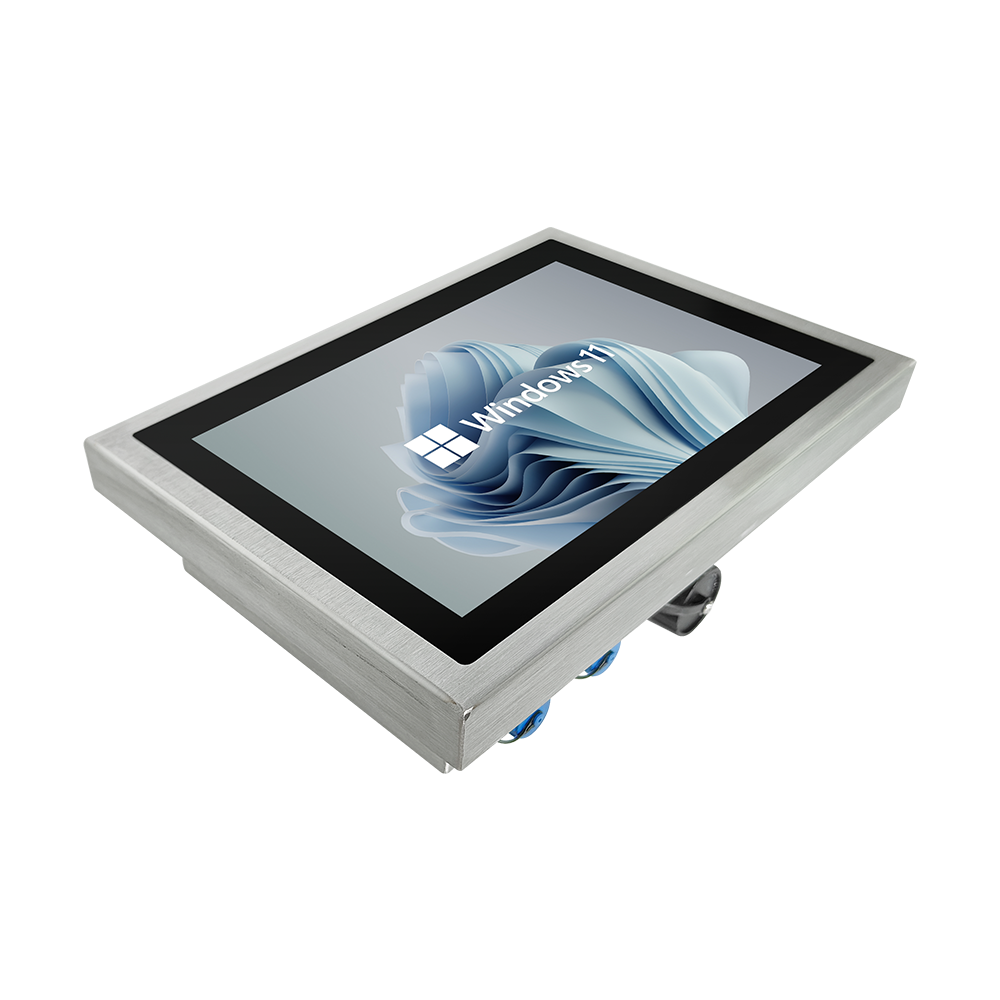

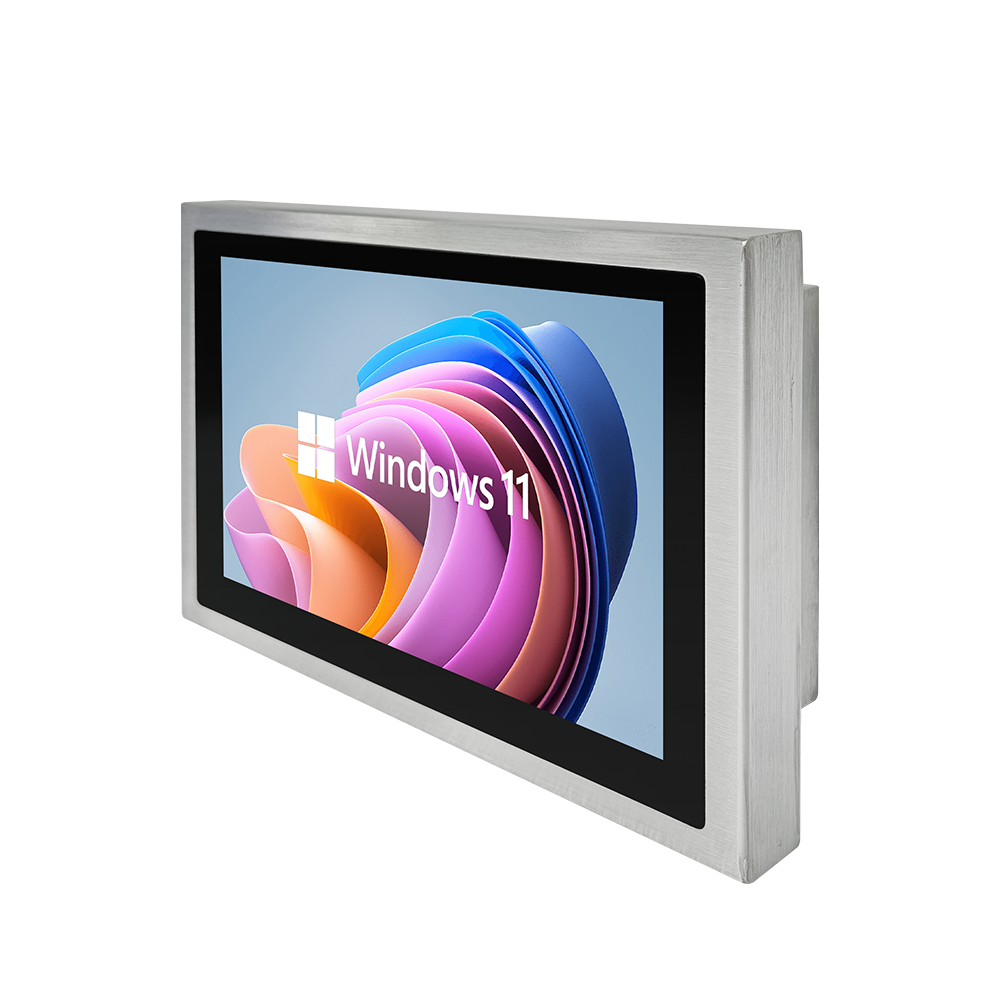

10.1″ Full IP67 Stainless Steel Touch Industrial Monitor
-

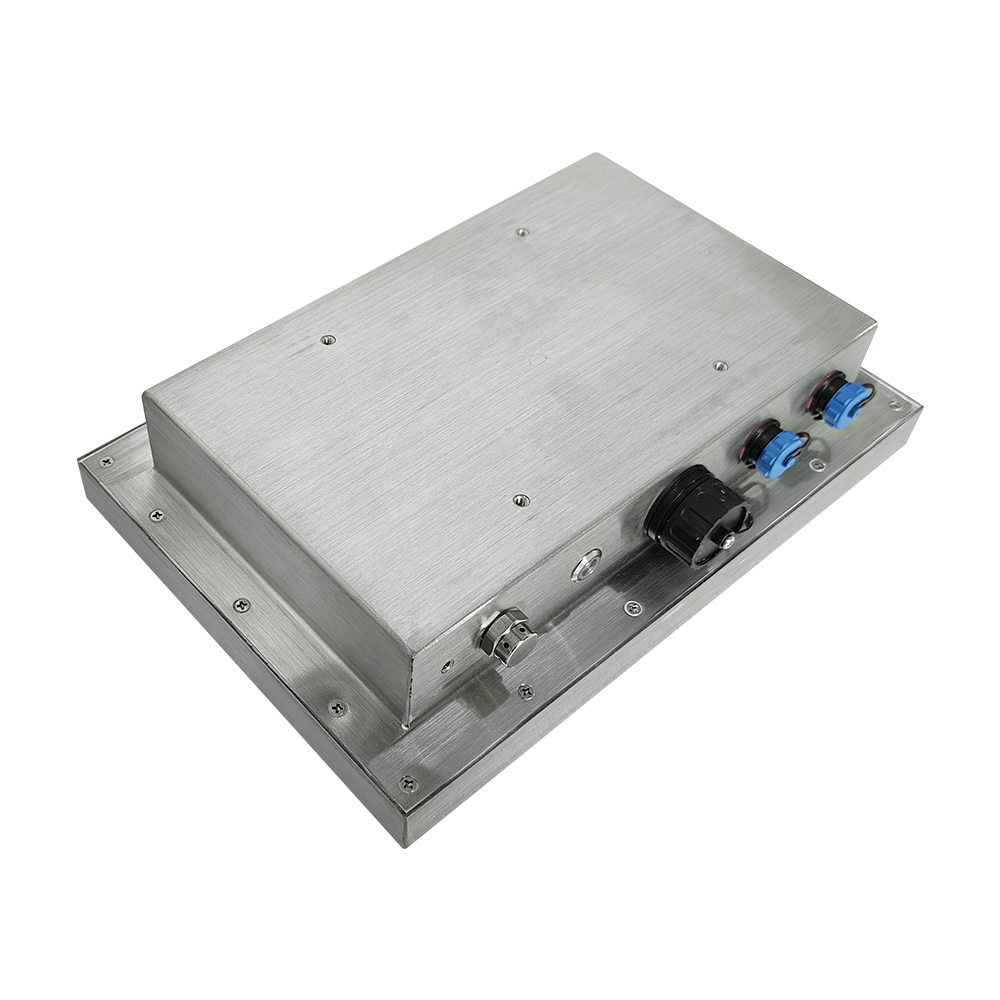

Full 304/316 Stainless Steel Enclosure: Complete 6-sided sealed corrosion-proof housing engineered to resist high-pressure caustic chemical washdowns and steam sanitation.
-
Integrated Breathable Equalization Valve: Equipped with a waterproof breathing valve to prevent internal condensation and balance pressure during extreme temperature shifts.
-

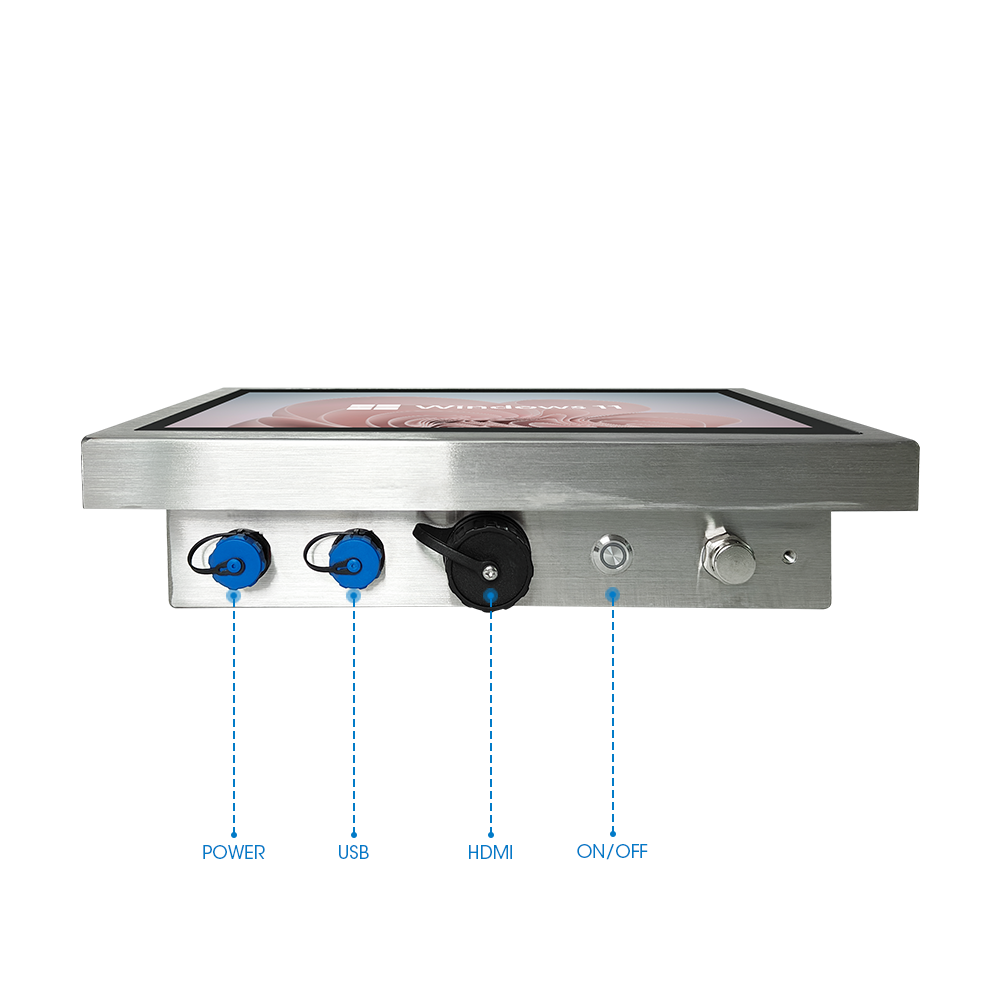

Sealed Aviation I/O & Metal Controls: Bottom-exit circular locking connectors (DC Power, USB Touch, HDMI video) and an IP67 metal power button with protective dust caps.
-
Compact High-Density Capacitive Touch: 10.1″ 16:10 widescreen LCD with responsive projected capacitive (PCAP) multi-touch, supporting seamless gloved and wet-hand operation.
-
Target Applications: Engineered for pharmaceutical powder filling machines, commercial bakery dough shapers, biotech freeze dryers, automated aquaculture feeders, and surgical instrument ultrasonic washers.
