The INNODA 17.3-inch Full IP67/IP69K Waterproof Industrial Panel PC combines high-precision mechanical craftsmanship with robust computational reliability. Engineered specifically for harsh operational environments—including outdoor solar/mining operations, marine vessel bridges, food and beverage washdown lines, and CNC machine shops—this system delivers continuous 24/7 performance under severe environmental exposure.
Featuring a hybrid chassis architecture, the unit pairs a high-precision CNC-milled silver aluminum front bezel with a heavy-duty powder-coated solid steel rear enclosure. Driven by the energy-efficient Intel Celeron J6412 quad-core processor, the terminal provides modern x86 processing power without requiring internal cooling fans or unsealed cabinet ventilation slots.
Key Architectural & Engineering Highlights

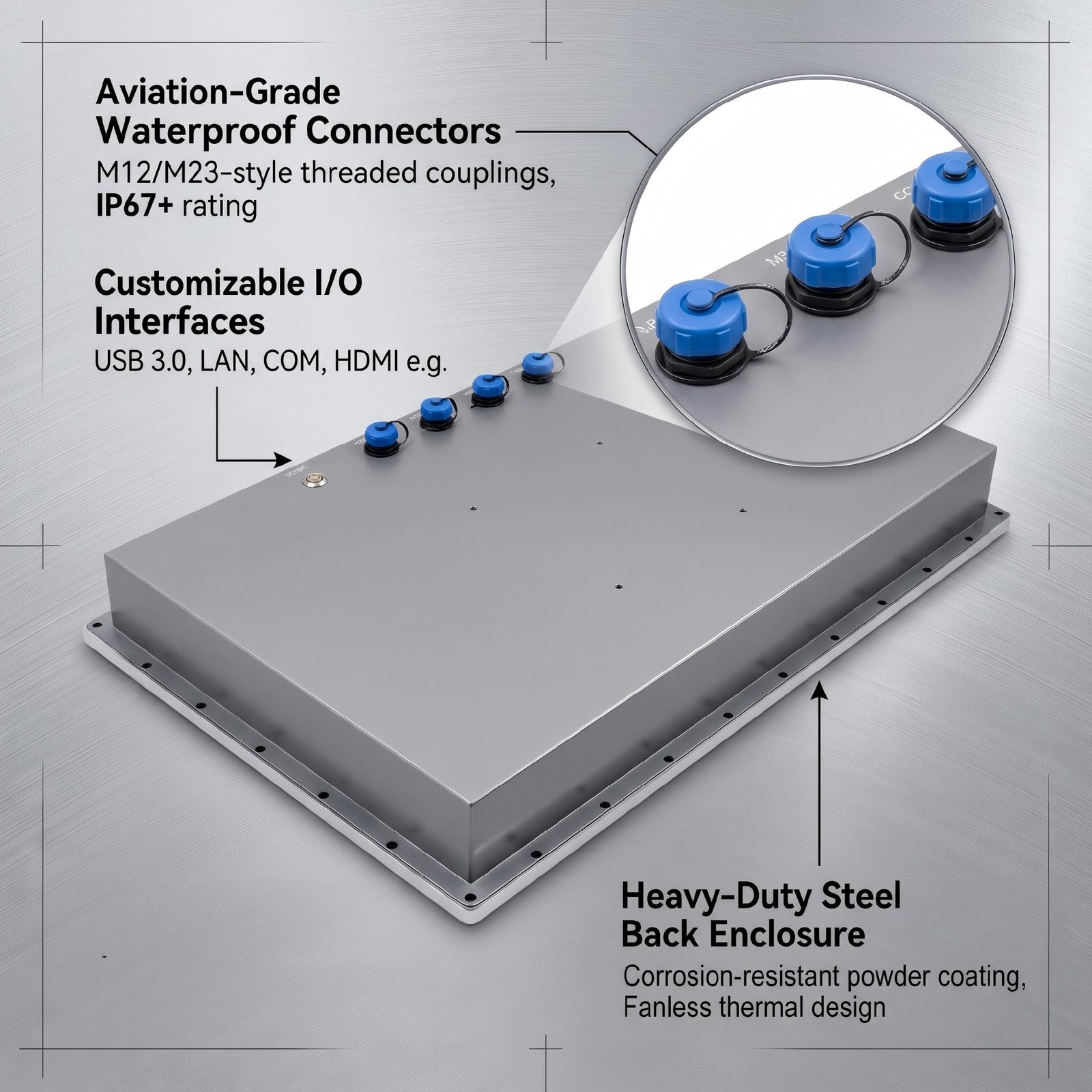

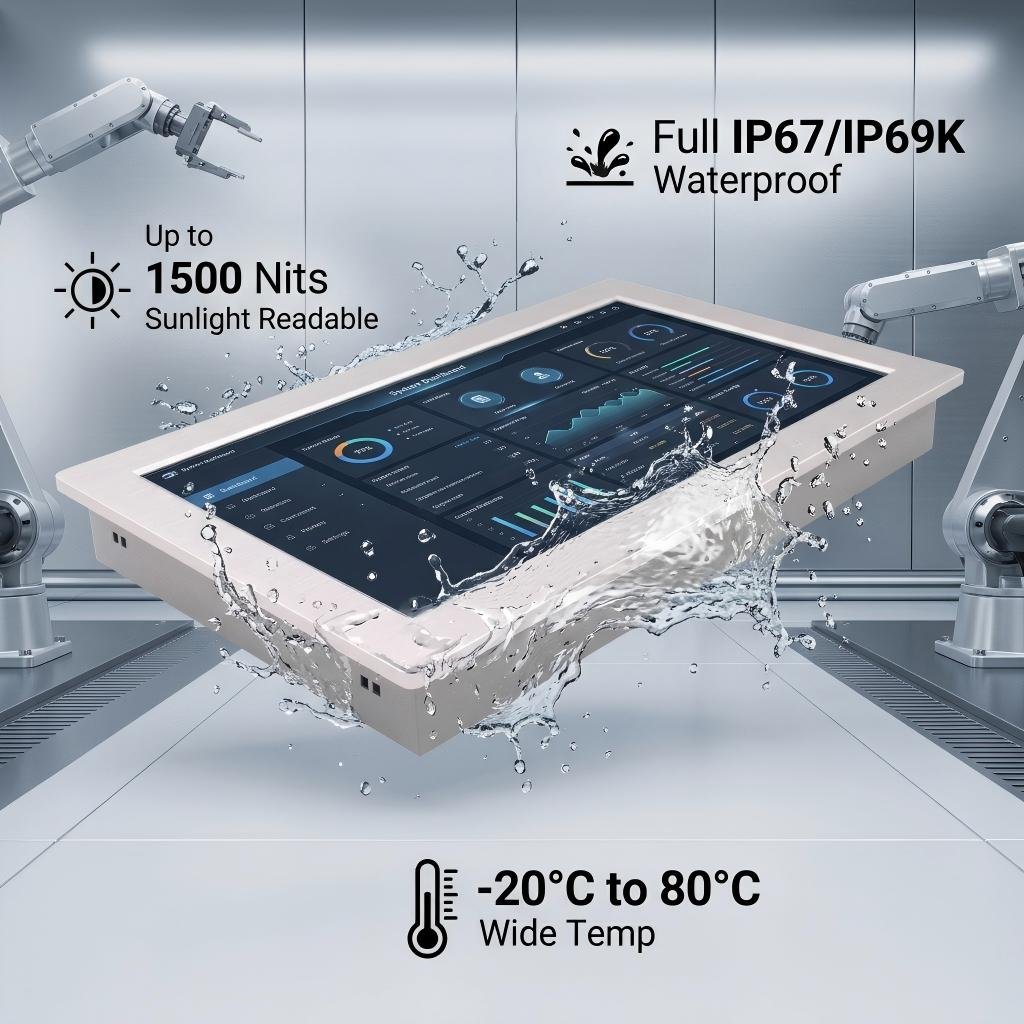

- Full Hermetic IP67 / IP69K Sealing: Fully protected against dust ingress, continuous high-pressure hot water jets (IP69K up to 100 bar at 80°C), and temporary water submersion. External interfaces utilize circular metal aviation connectors with threaded locking couplings that maintain airtight integrity.

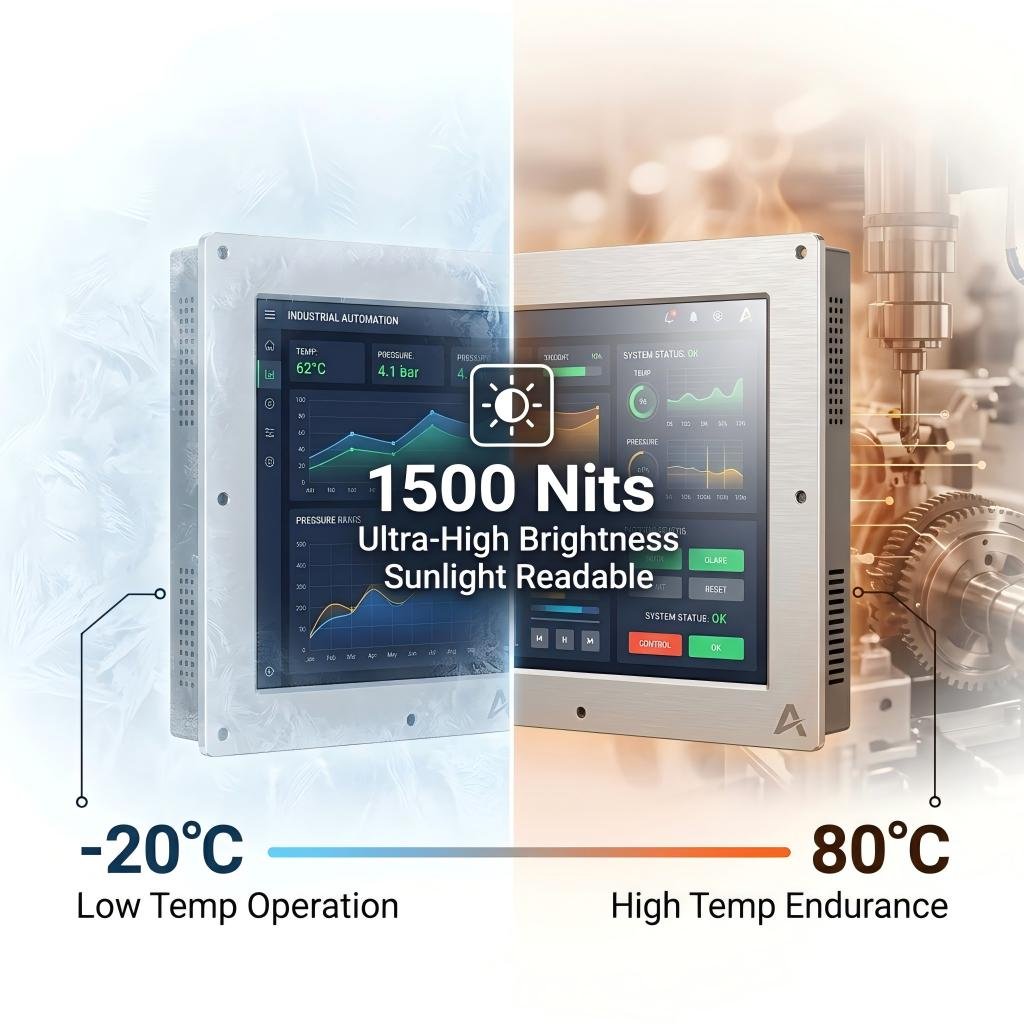

- 1500 Nits Sunlight Readability: Equipped with an ultra-high brightness LED backlight delivering up to 1500 cd/m² luminance, overcoming ambient glare on open-air marine decks and outdoor service kiosks.
- Wide Temperature Resilience (-20°C to 80°C): Built with industrial-grade solid-state components, wide-temperature liquid crystal fluid, and an integrated thermal dissipation structure that withstands winter freezes and hot engine cabin environments.

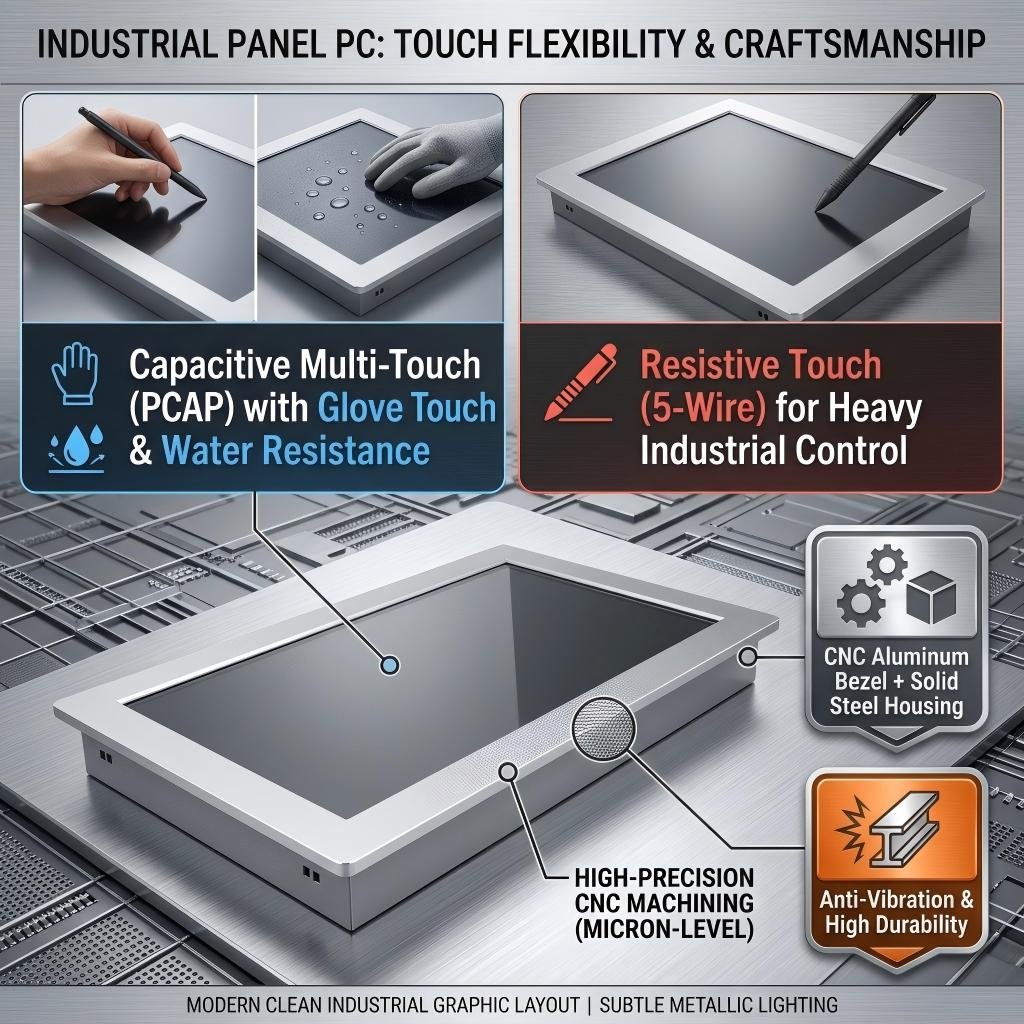

- Dual Touch Flexibility: Available with 10-point Projected Capacitive (PCAP) multi-touch featuring advanced glove and water-film rejection algorithms, or 5-Wire Resistive touch for heavy single-point industrial stylus and work gauntlet operation.
- 9V–36V Wide DC Voltage Input: Built-in buck-boost power conditioning protects onboard electronics from vehicle battery cranking sags, transient inductive spikes, and fluctuating 24V industrial bus rails.

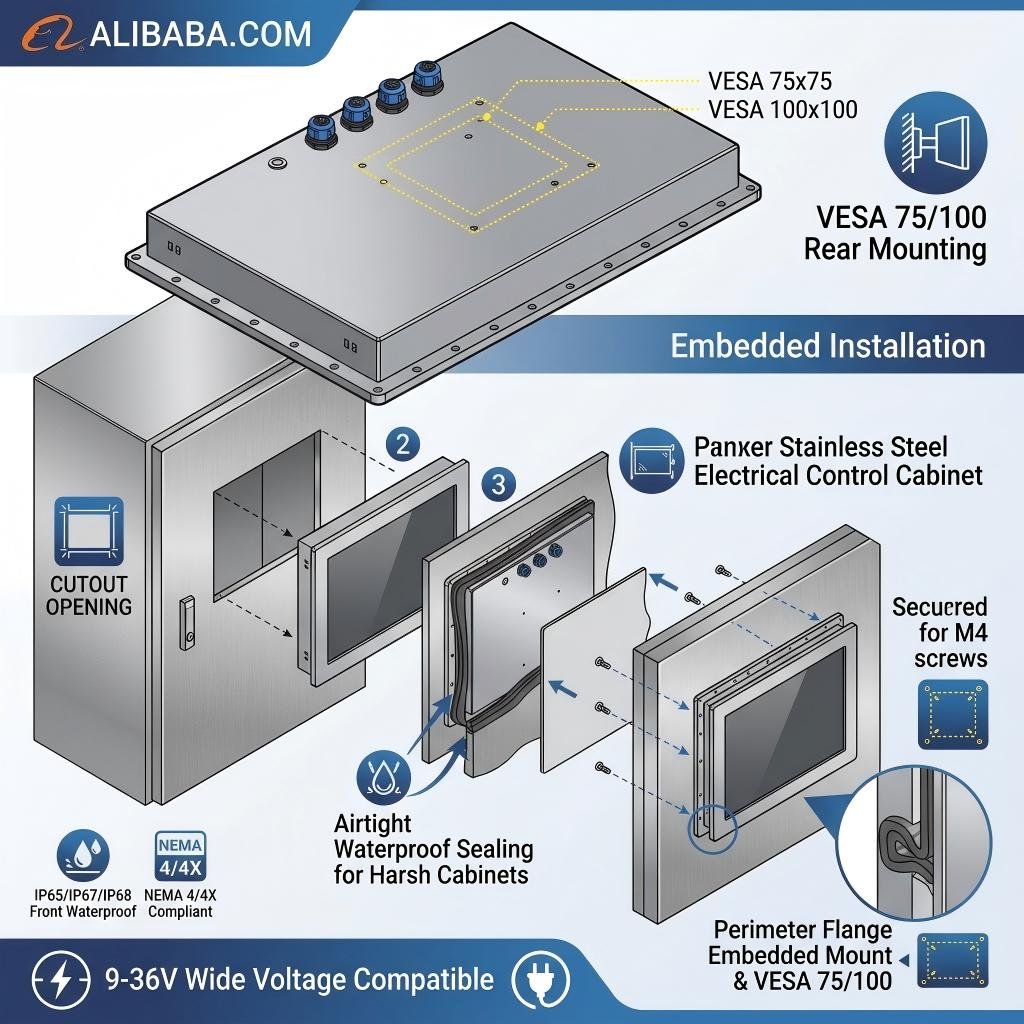

- Flexible Mechanical Integration: Supports perimeter flange embedded installation using M4 retention screws for seamless NEMA 4/4X cabinet doors, alongside rear VESA 75×75 / 100×100 mm mounting brackets.
Technical Specifications Matrix
| System Category | Technical Specifications |
|---|---|
| Screen Size & Aspect Ratio | 17.3-inch Active Matrix TFT LCD, 16:9 Widescreen |
| Native Resolution | Full HD 1920 × 1080 pixels |
| Luminance / Brightness | Standard 350 nits / Optional Ultra-High Brightness up to 1500 nits |
| Viewing Angles & Contrast | 89°/89°/89°/89° Full Viewing Angle; 1000:1 Contrast Ratio |
| Processor (CPU) | Intel Celeron J6412 (4 Cores, up to 2.60 GHz, 10W TDP) |
| System Memory (RAM) | 1 × DDR4 SO-DIMM Slot, up to 32GB 3200MHz |
| Storage Options | 1 × M.2 2280 NVMe/SATA SSD slot + optional 2.5″ SATA SSD/HDD bay |
| Operating System Support | Windows 10 / Windows 11 IoT Enterprise, Linux (Ubuntu, Debian) |
| Touchscreen Sensor | 10-Point PCAP Multi-Touch (7H Surface Hardness) / 5-Wire Resistive Touch |
| Enclosure Construction | CNC Silver Anodized Aluminum Front Bezel + Corrosion-Resistant Powder-Coated Steel Back Cover |
| Sealed I/O Interfaces | Threaded M12/M23 Aviation Sockets (Breakout cables: 2×USB 3.0, 2×GbE LAN, 2×COM RS232/485, 1×HDMI, 1×DC-In) |
| Ingress Protection (IP) | Full IP67 / IP69K / NEMA 4X compliant |
| Power Input Range | DC 9V–36V Wide Input with reverse polarity & TVS surge protection |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) wide environmental tolerance |
| Storage Temperature | -30°C to 85°C (-22°F to 185°F) |
| Mounting Options | Perimeter Flange Embedded Panel Mount (M4 Screws) & VESA 75×75 / 100×100 mm |
| OEM / ODM Customization | Custom I/O pinouts, optical bonding, anti-reflective (AR) glass, client brand logo silkscreen |
Target Industry Applications
- Food, Beverage & Pharmaceutical Processing: Withstands daily high-pressure chemical washdowns (IP69K steam sanitation at 80°C) without chemical degradation.
- Outdoor Mining & Construction Fleets: 1500-nit high-brightness panel overcomes midday glare on drilling rigs, stone crushers, and excavator cabins.
- Commercial Marine & Offshore Platforms: Resistant to airborne salt spray, humidity, and wide ambient temperature shifts from tropical sun to arctic spray.
- Petrochemical & Heavy Automation Control: Sealed enclosure protects internal electronics from explosive combustible airborne dust and harsh industrial solvents.
Need custom aviation connector cable lengths, custom motherboard I/O pinouts, or 3D STEP models for cabinet design? Contact INNODA’s technical engineering team to review engineering datasheets and sample availability.
