Precision CNC Aluminum Craftsmanship & Ergonomic Front-Panel Control
The 19-inch rackmount industrial monitor is specifically designed for mission-critical visualization in standard 19-inch server racks, industrial DCS control rooms, broadcasting setups, marine navigation bridges, and CNC machine consoles. The front bezel is precision-machined from solid CNC aluminum alloy with a durable black anodized brushed finish, delivering outstanding impact resistance and electromagnetic compatibility (EMC). Integrated side mounting ears allow direct, rigid bolting into standard 19-inch industrial rack cabinets or embedded control desks.

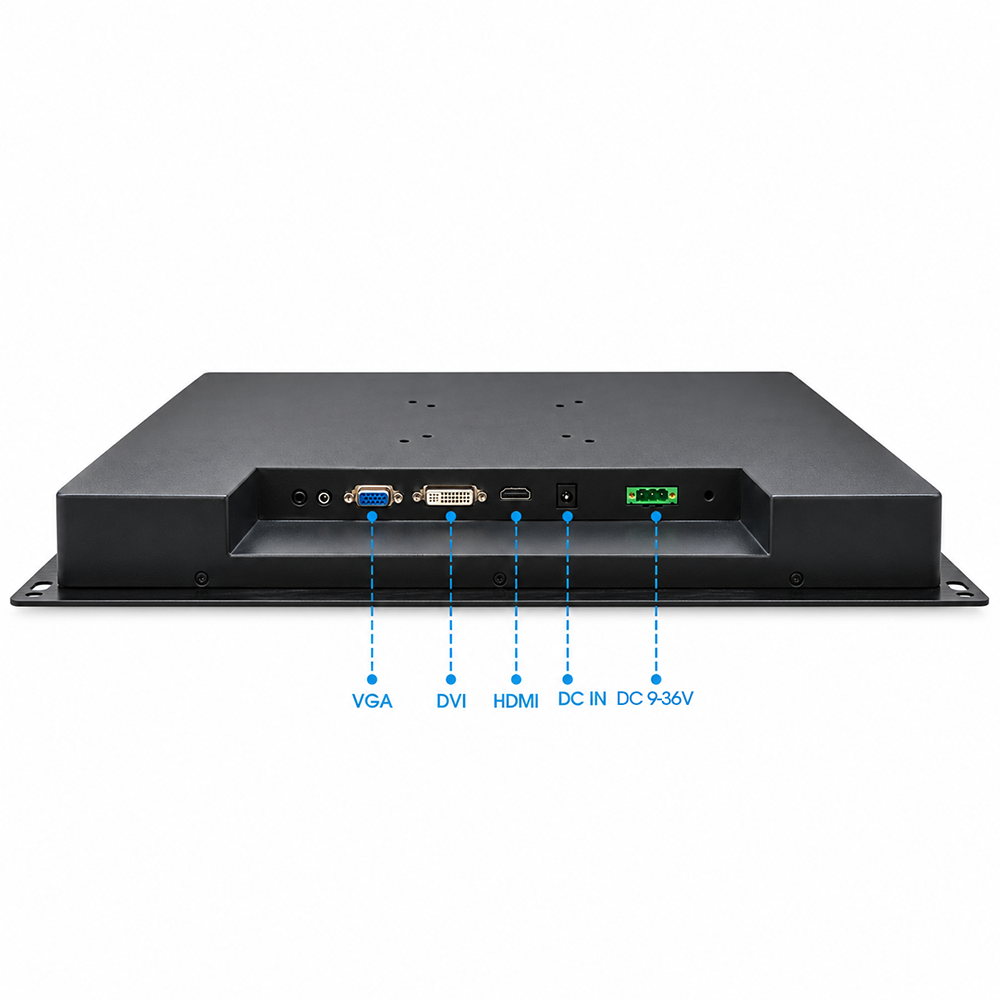

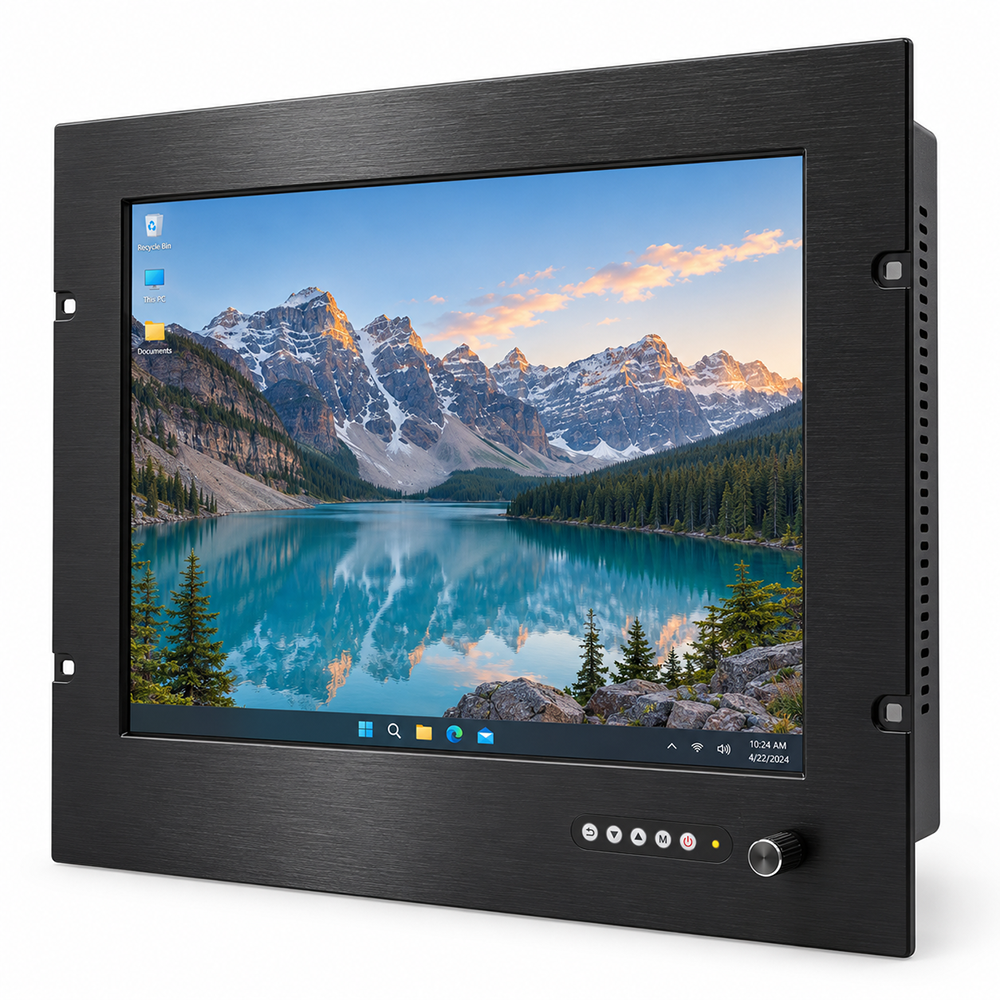

Unlike standard displays with hard-to-reach rear buttons, this monitor incorporates an ergonomic front-panel control suite: five tactile OSD keys alongside an industrial-grade rotary brightness potentiometer. Operators can instantly adjust screen brightness from complete darkness (0%) to full luminance (100%) on the fly—essential for darkroom command centers, nighttime marine navigation, and high-glare daytime monitoring. The rear interface includes VGA, DVI, and HDMI video inputs, dual audio jacks, and dual power input configurations (standard DC jack plus a 3-pin Phoenix terminal for 9V~36V wide DC power).
Comprehensive Hardware Specifications
| Display & Optical Specifications | |
| Screen Size & Ratio | 19.0-inch Industrial Grade A+ TFT-LCD / 5:4 Classic Industrial Aspect Ratio |
| Native Resolution | 1280 × 1024 SXGA (Sharp text and industrial SCADA rendering) |
| Standard Luminance | 300 nits (cd/m²) standard (Optional: 1000 / 1200 / 1500 nits Sunlight Readable High-Brightness customization) |
| Contrast & View Angle | 1000:1 Contrast Ratio / 85°/85°/80°/80° (L/R/U/D) Wide Viewing Angles |
| Manual Dimming Control | Front-mounted metal rotary knob for stepless 0%–100% backlight dimming (Ideal for marine and darkroom monitoring) |
| Touch Options | Non-touch standard (Optional: Projected Capacitive PCAP 10-point multi-touch / 5-Wire Resistive touch with USB/RS232 interface) |
| Controls & Input/Output Connectivity | |
| Front Control Panel | • 5x Tactile OSD Buttons (Power On/Off with LED indicator, Menu, Up, Down, Auto-Adjust/Exit) • 1x Heavy-duty precision rotary potentiometer knob for instant backlight brightness adjustment |
| Video Signal Inputs | • 1x HDMI Port (Digital High Definition) • 1x DVI-D Port (Digital Visual Interface) • 1x VGA 15-Pin D-Sub (Analog RGB legacy input) |
| Audio Interfaces | 1x 3.5mm PC Audio-in jack + 1x 3.5mm Audio-out jack (Optional internal stereo speakers) |
| I/O Cavity Design | Recessed bottom-facing interface compartment preventing cable bending and accidental disconnection |
| Power, Mechanical & Environmental | |
| Dual Power Input Modes | • 1x Standard 2.5mm DC-in Jack (DC 12V Input, 100~240V AC adapter included) • 1x Industrial 3-Pin Phoenix Screw Terminal (Supports Wide DC 9V ~ 36V input with over-voltage and reverse-polarity protection) |
| Chassis Construction | Precision CNC-machined anodized aluminum front bezel with brushed finish + heavy-gauge powder-coated structural steel rear cover |

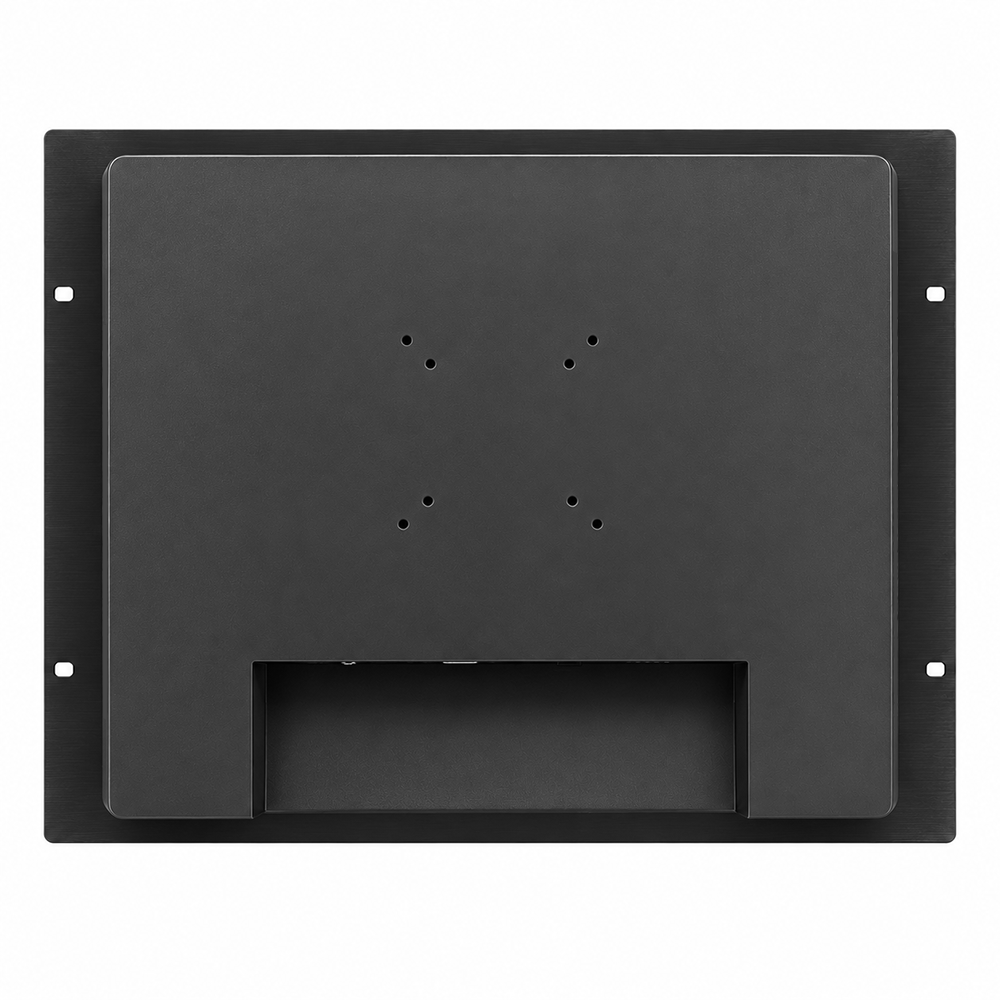

| Mounting Configurations | • Standard 19-inch rackmount installation via side flange screw-slots • Rear VESA 75×75mm and 100×100mm mounting holes for desktop stands, swing arms, and wall mounts |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) wide industrial operating temperature (Storage: -30°C to 80°C) |
| Certifications & Quality | CE, FCC Class A, RoHS, ISO9001 Compliant |
