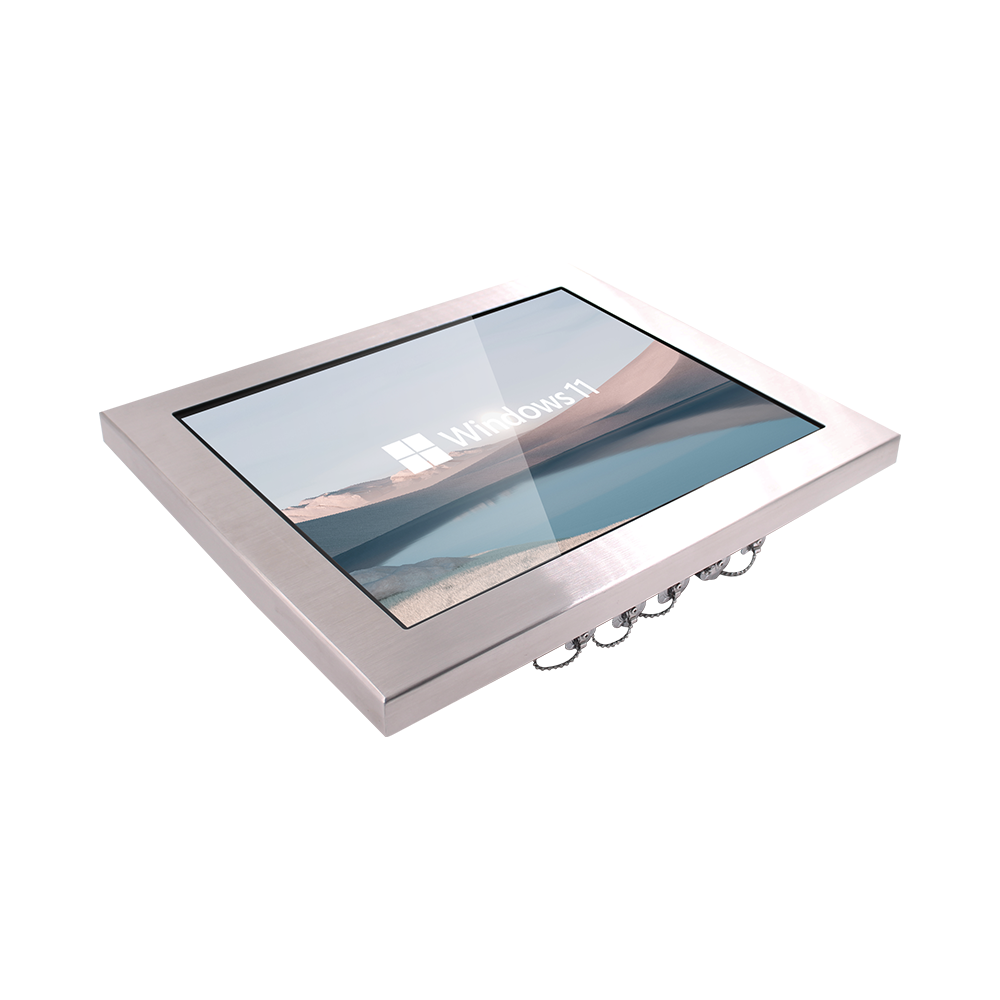

Seamless true flat stainless steel front bezel and scratch-resistant capacitive multi-touch screen of 19 inch cleanroom HMI

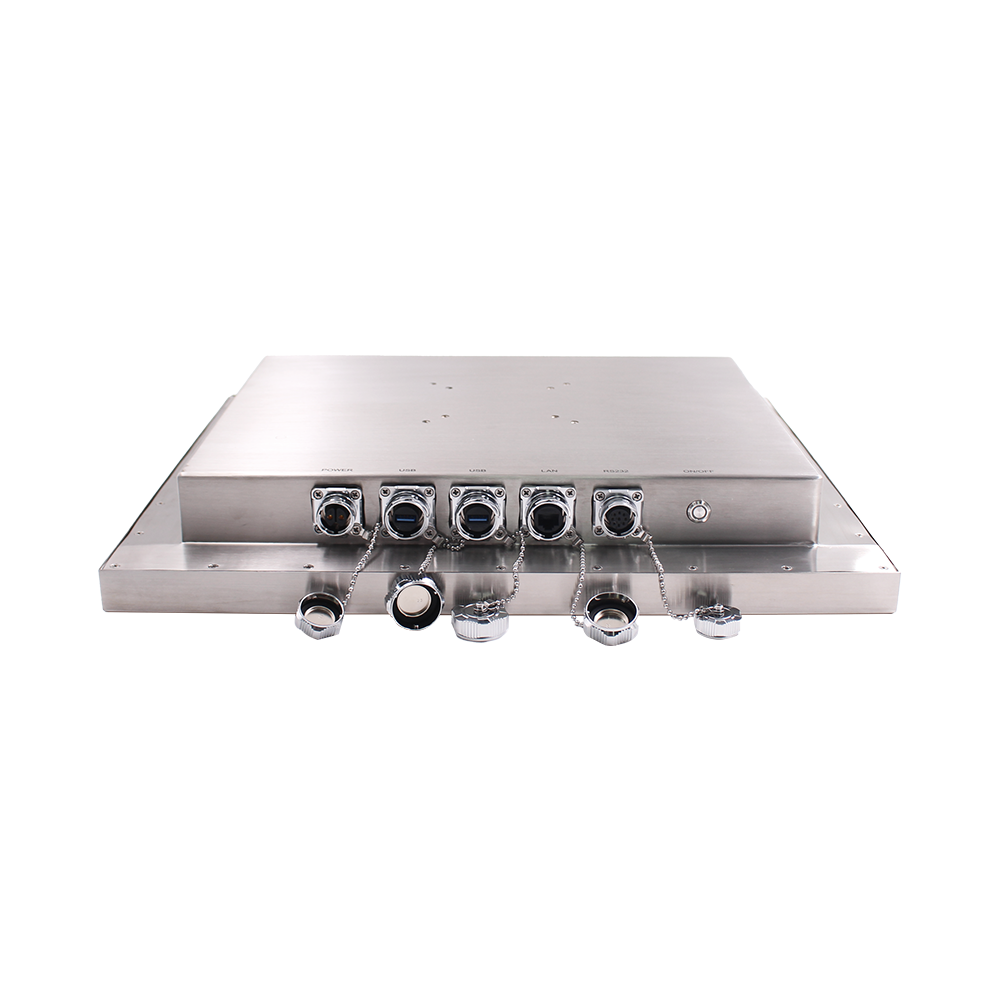

Rear SUS304 SUS316L stainless steel fanless housing with chained metal waterproof sealing caps and VESA 75 100 mounting holes

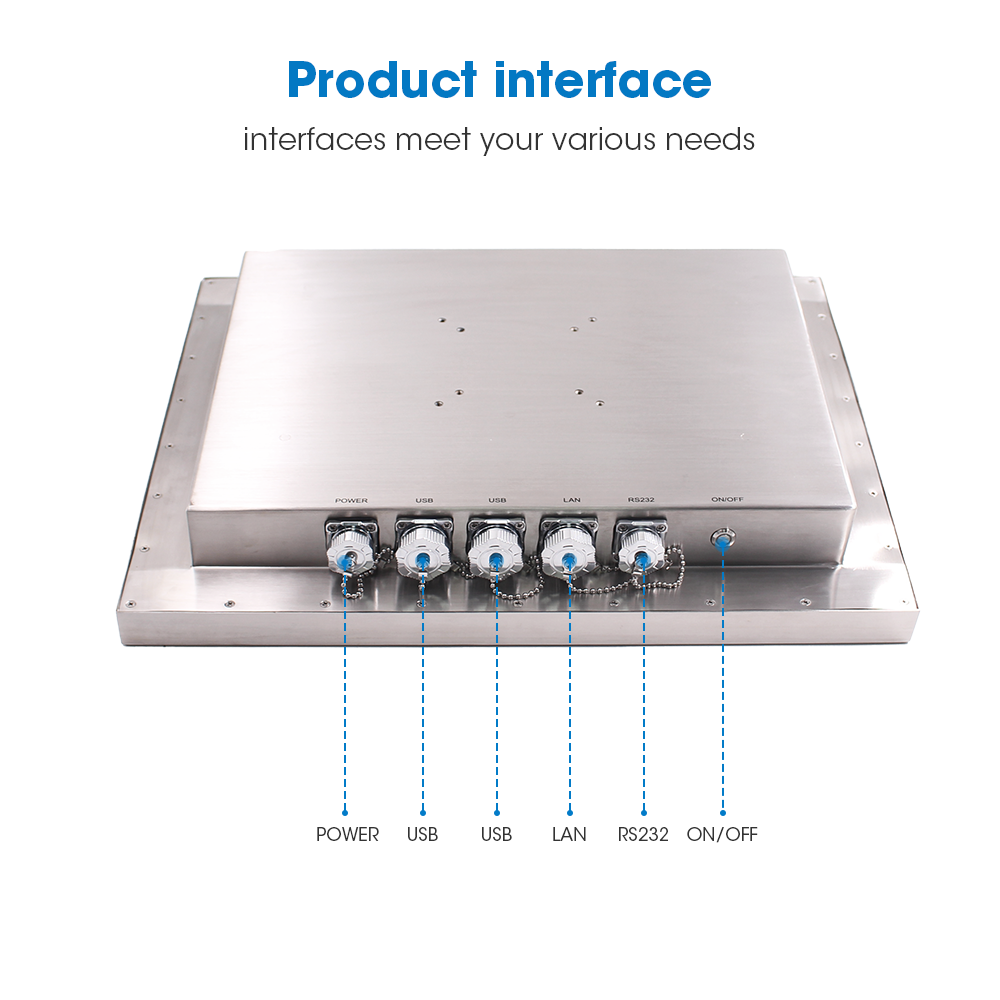

Full waterproof screw locking I/O interface layout with Power 2x USB LAN RS232 and IP67 power switch on stainless steel PC
, , ,

19″ Full IP66/IP69K Waterproof Stainless Steel Industrial Panel PC, SUS304/316L Fanless Touch Computer with M12 Aviation I/O, High Brightness Sunlight Readable Optional

Engineered for high-hygiene food processing, pharmaceutical cleanrooms, and chemical automation, this 19-inch fully enclosed stainless steel industrial panel PC delivers complete IP66/IP69K washdown ingress protection, heavy-duty M12 circular waterproof connectors, and robust fanless thermal management.

  • SUS304 / SUS316L Stainless Steel Construction: Laser-welded food-grade stainless steel housing offering superior corrosion resistance against caustic washdown chemicals, acid-alkali sanitizers, and high-pressure hot water spray (CIP/SIP).
  • Full IP66 / IP69K Ingress Protection: Completely sealed 6-sided design with an anti-microbial flat front surface, eliminating bacteria-trapping crevices and dirt traps.
  • Screw-Locking M12 Waterproof Aviation I/O: Industrial circular waterproof connectors (Power, 2x USB, LAN, RS232) fitted with chain-tethered solid metal protective caps for fail-safe water/dust immunity.
  • 19″ Industrial Display & High Brightness Option: Standard 300 nits display with optional 1000~1500 nits optical bonding sunlight readable customization for intense light conditions.
  • Glove & Wet-Hand Compatible Touch: True-flat projected capacitive (PCAP) multi-touch screen with 7H tempered glass surface, supporting rubber/nitrile gloves and water-splash rejection.
  • 100% Fanless & Broad Temperature Operation: Passive chassis conduction cooling (no airborne dust circulation) supporting wide operating temperatures from -20°C to 70°C and 9V~36V wide DC power.
Categories: , , , Tags: , , , , , , , , , ,

Hygienic SUS304/SUS316L Stainless Steel Engineering & High-Pressure Washdown Defense

The 19-inch fully sealed stainless steel industrial panel PC is purpose-built for industries governed by strict hygiene standards and rigorous sanitization regimes—including meat processing, dairy production, pharmaceutical cleanrooms, and chemical manufacturing. Built with premium SUS304 or optional marine-grade SUS316L stainless steel, the chassis features continuous seamless welds and a crevice-free surface that actively prevents microbial growth and accumulation.

Engineered for complete IP66 and IP69K high-pressure washdown protection (withstands hot water jet sprays up to 80°C and 100 bar), the system eliminates external ventilation vents. All external data and power channels utilize rugged circular screw-locking waterproof aviation connectors, accompanied by chain-tethered chrome-plated brass sealing caps, ensuring completely impenetrable connection reliability during intensive factory washdowns.

Comprehensive Hardware Specifications

System & Computing Core
Processor Platform • Intel® Celeron® J6412 / J1900 Quad-Core (Ultra-Low Power Fanless Architecture)
• Intel® Core™ i3 / i5 / i7 (6th, 8th, 10th, 11th Gen U-Series) High Performance Computing
• Rockchip RK3568 / RK3588 (Optional for Stainless Steel Android HMI Solutions)
System Memory 1x DDR4 / DDR3L SO-DIMM slot, 4GB / 8GB / 16GB / 32GB Industrial Grade RAM
Storage Options • 1x High-speed mSATA / M.2 NVMe SSD (128GB / 256GB / 512GB / 1TB)
• 1x Internal anti-vibration 2.5″ SATA III SSD bay supported
Graphics & OS Support Integrated Intel® UHD / HD Graphics; Compatible with Windows 10/11 Pro, Windows 10 IoT Enterprise, Linux (Ubuntu, Debian), Android (for ARM models)
Display & Touch Panel
Screen Size & Ratio 19.0-inch Industrial Grade A+ TFT LCD / 5:4 Classic Industrial Aspect Ratio
Native Resolution 1280 × 1024 SXGA (High-Definition Industrial Display)
Luminance (Brightness) 300 nits standard (Optional: 1000 / 1200 / 1500 nits Sunlight Readable High-Brightness Customization with Auto-Dimming Light Sensor)
Contrast & View Angle 1000:1 Contrast Ratio / 85°/85°/80°/80° (L/R/U/D) Full Viewing Angles
Touch Technology • True-Flat Projected Capacitive (PCAP) Multi-Touch Screen, ≥7H Hardness Tempered Glass
• Anti-Glare (AG), Anti-Reflective (AR), Anti-Fingerprint (AF) Coating & Optical Bonding available
• Supports thick latex/nitrile gloves, wet-finger operation, and water droplet rejection
Chassis & Waterproof I/O
Chassis Material Brushed SUS304 Food-Grade Stainless Steel (Optional Medical/Marine Grade SUS316L for severe chemical & salt-spray environments)
Ingress Protection Full IP66 / IP69K (6-sided 360° dust-tight and high-temperature high-pressure water-jet proof)
Waterproof I/O Interfaces • 1x Screw-locking Waterproof DC Power Input Connector
• 2x Screw-locking Waterproof USB Ports (USB 2.0 / USB 3.0 Type-A internal connection)
• 1x Screw-locking Waterproof RJ45 Gigabit Ethernet Port
• 1x Screw-locking Waterproof DB9 RS-232 / RS-485 Serial COM Port
• All I/O equipped with heavy-duty metal waterproof sealing caps with stainless steel retention chains
• Optional: Waterproof M12 / Aviation cables customized to user length
Power Switch 1x IP67 Waterproof stainless steel push-button power switch with integrated LED status ring
Power, Cooling & Environmental
Power Input Range DC 12V Input (Optional DC 9V ~ 36V wide-range voltage input with over-voltage, over-current, and reverse-polarity protection)
Thermal Dissipation 100% Fanless thermal dissipation through stainless steel enclosure conduction (zero airborne particle dispersal, cleanroom certified)
Operating Temperature -20°C to 70°C (-4°F to 158°F) wide temperature operation (Optional -30°C to 80°C cold-storage customization)
Mounting Configurations Standard VESA 75×75mm / 100×100mm (Compatible with stainless steel swing arms, pedestal mount, and cleanroom desktop stands)
Certifications & Testing CE, FCC Class A, RoHS, IP66/IP69K Ingress Test Report, ISO9001
