15'' XGA Industrial IP65 Waterproof Panel Pc PCAP Touch Display
Features
1. Waterproof IP65 Panel pc With 2mm tempered multi-touch capacitive touchscreen
2. Fully sealed waterproof IP67(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included
4. Excellent performance motherboard, 7x24 continuous operation
5. Industrial LCD panel, wide viewing angle, high nits, true color.
6. Good cooling system--big heat sink inside of the machine
7. Stainless steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to
bacterial growth.
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz/ I3/I5/I7 | |
| Memory | 4G DDR3(up to 8G) | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 15inch LCD Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch/ IR touch optional | ||
| Resolution | 1024(H)x768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232(can add to 4*COM) | |
| USB | 2xUSB2.0(can add to 4*USB) | ||
| LAN | 1xRJ45, 10/100/1000 Mbps(can add to 2*RJ45) | ||
| DC jack | 1x DC jack | ||
| Function |
Full waterproof IP67/IP68 optional | ||
| Optional | Card Reader -NFC / RFID | ||
| WIFI (waterproof IP67 antenna imported from Germany) | |||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| AG glass / AR glass | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with waterproof cables | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | 1.5mm Stainless Steel SUS304(metal case option) | |
| Color | Gray/Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certifiactes | CE RoHS | ||

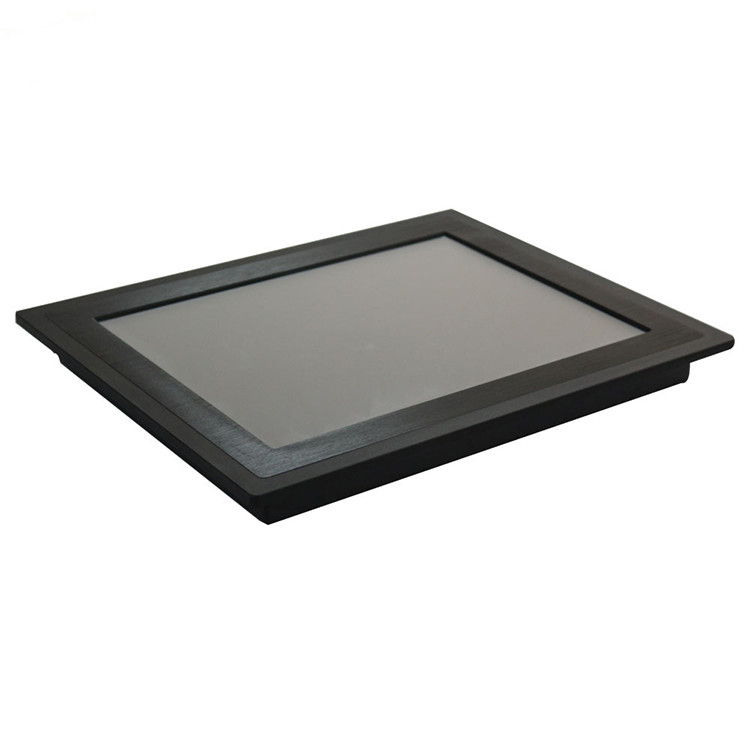

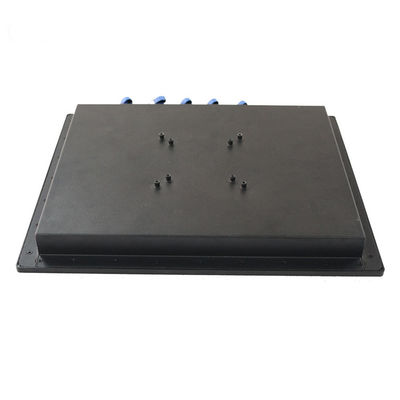

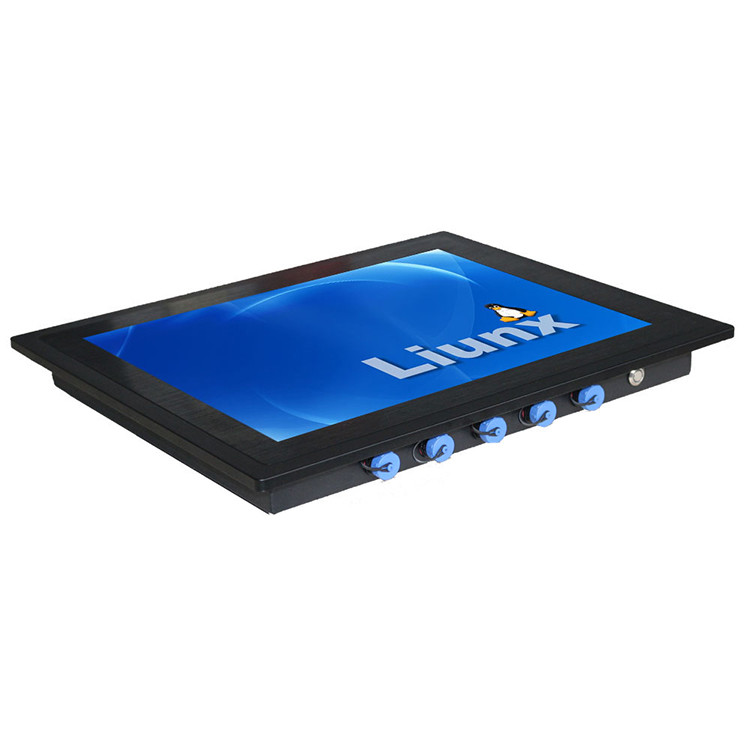

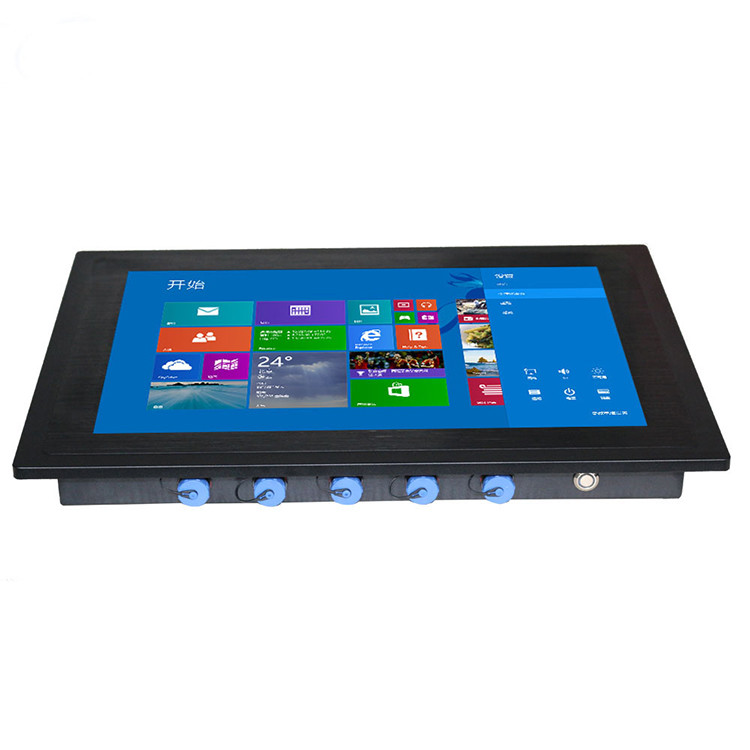

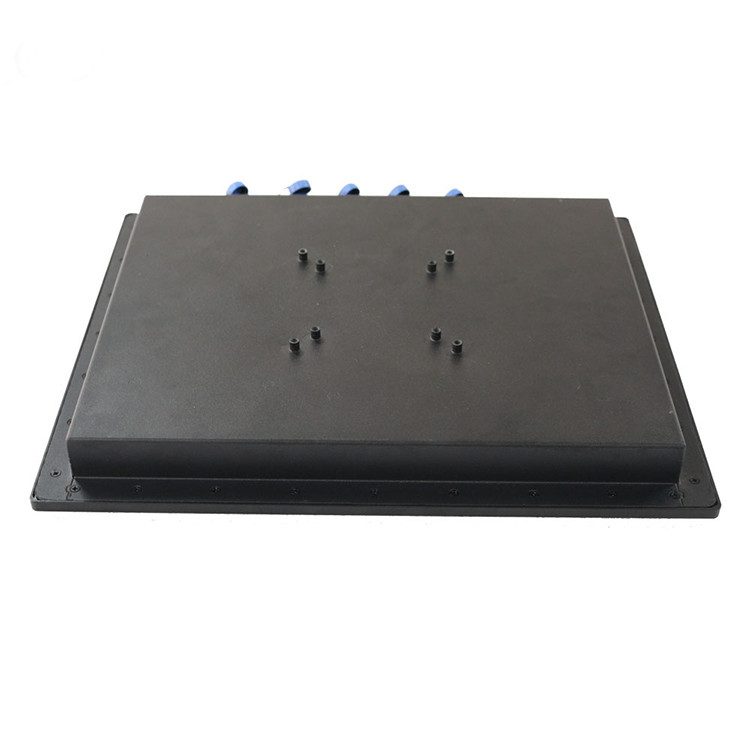

Detailed Image
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend
economicaly way for your reference
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at
least 13years experience.7''-42'' size widely products line, industrial touch panel, embeded computer, lcd
monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work
performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
