Features
1. Available cpu
RK3288/ RK3399 / Freescale / Amlogic S922X
2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. 21.5inch full HD panel with 1920*1080 resolution
4. 5MP webcam built-in
5. RFID card reader
6. Printer integrated
7.4G modem
8.With fan
Configuration
| Processor System | CPU | RK3399 | |
| Memory | 2GB/4GB | ||
| Storage | 16G EMMC(8G/16G/32G optional) | ||
| Operation System | Android | ||
| LCD Panel Characteristics | Screen Size | 21.5-inch Lcd Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1920(H)x1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 250nits | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | PoE | ---- | |
| USB | 2xUSB2.0 | ||
| LAN | RJ45 as PoE power supply | ||
| HDMI | ------ | ||
| Function | 5MP front webcam | ||
| WIFI | |||
| RFID reader | |||
| 4G modem | |||
| Printer | |||
| Optional | waterproof | ||
| Brightness control button | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | metal | |
| Color | Black/Silver/White | ||
| Mounting | Wall mount/ Panel mount | ||

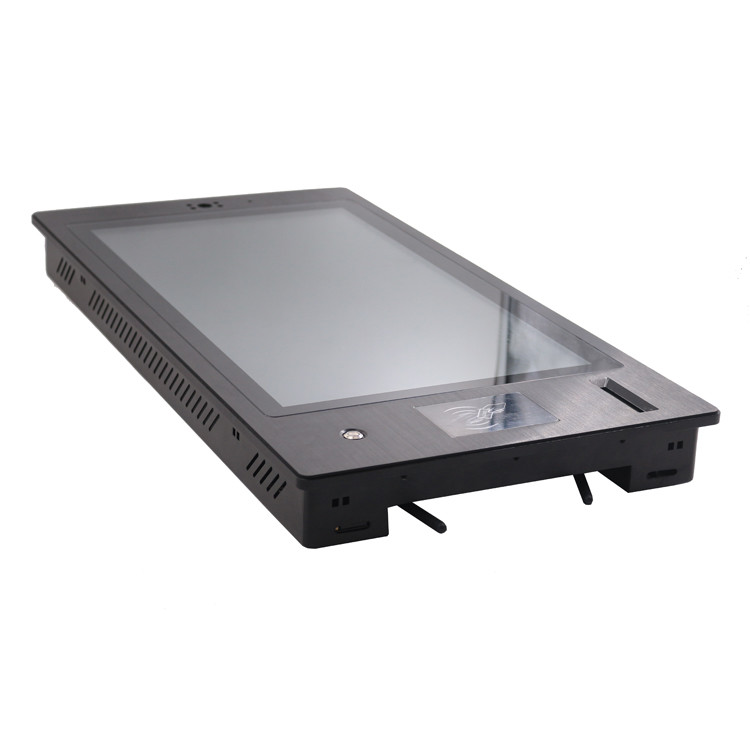

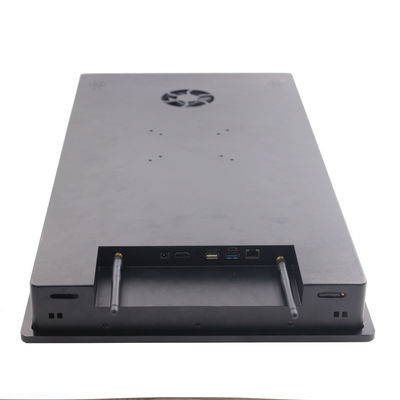

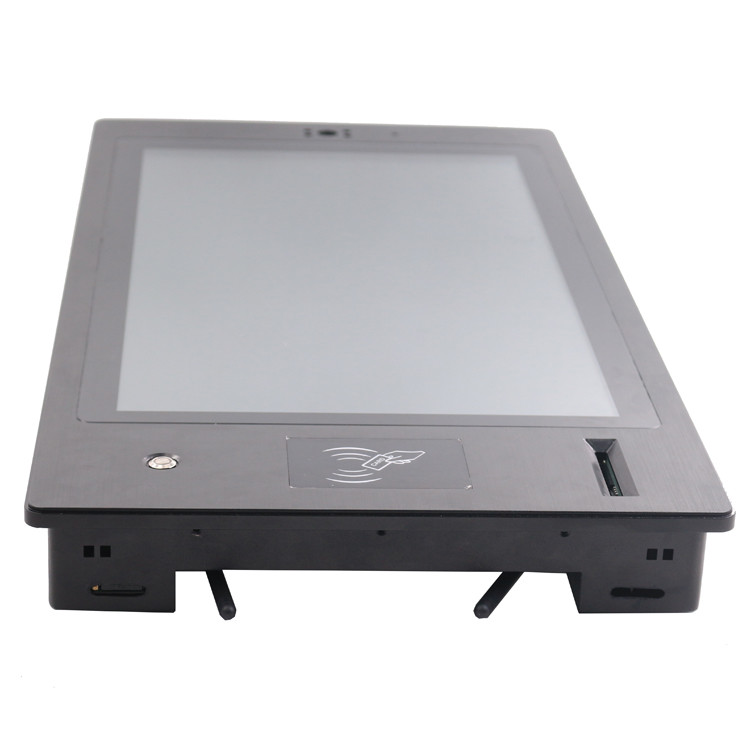

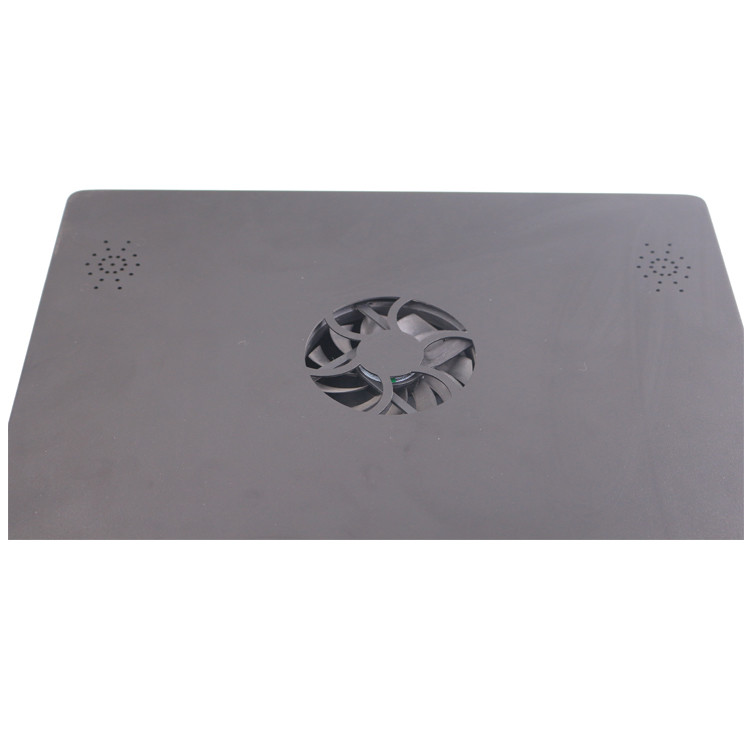

Detailed Image
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
