Features
- LCD 7″ Industrial Grade
- Non-Touch Screen, 2mm tempered glass (Capacitive or Resistive optional)
- 1000 cd/m2 brightness for daylight readable
- VGA, HDMI inputs
- CE, FCC. RoHS Compliance
- Metal case with VESA / Embedded mount hole
Full Sepcification
| LCD Panel Characteristics | Screen Size | 7’’ LED Panel | ||
| Touchscreen Type | Non- touch screen | |||
| Resolution | 1024(H)x600(V) | |||
| Aspect Ratio | 16:9 | |||
| Brightness | 1000cd/m2 | |||
| Contrast Ratio | 500:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
| USB | ------ | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | ------- | |||
| Mounting type | VESA hole 75*75/100*100mm / Embedded | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

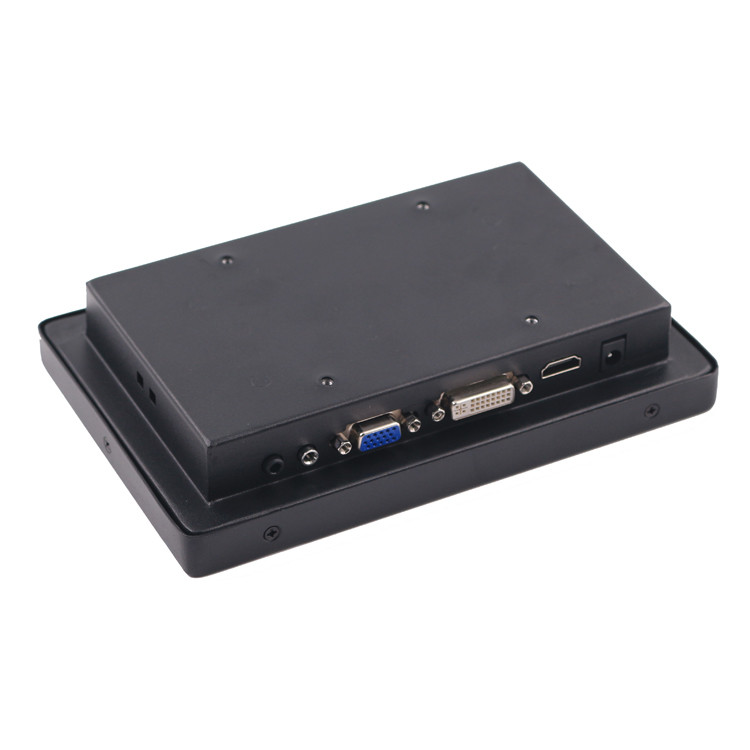

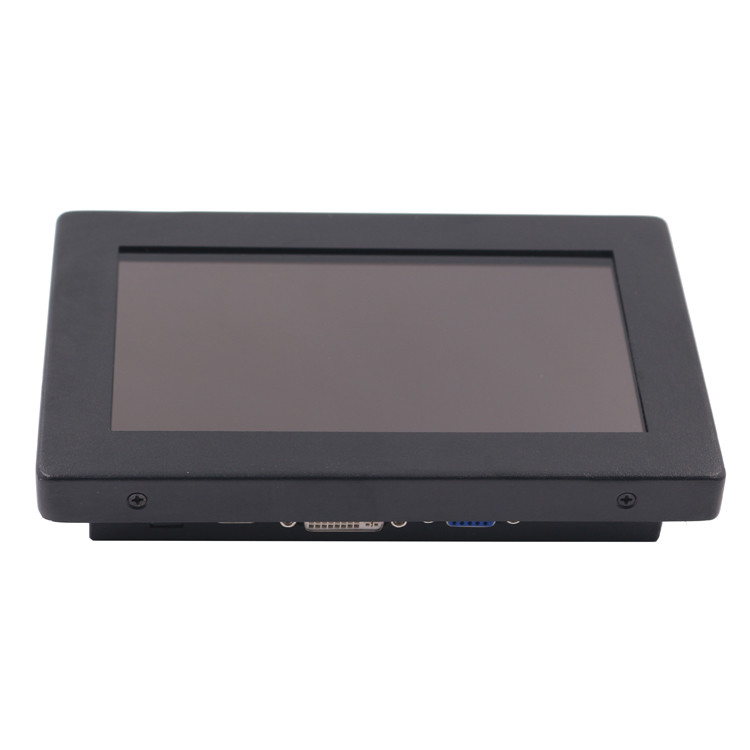

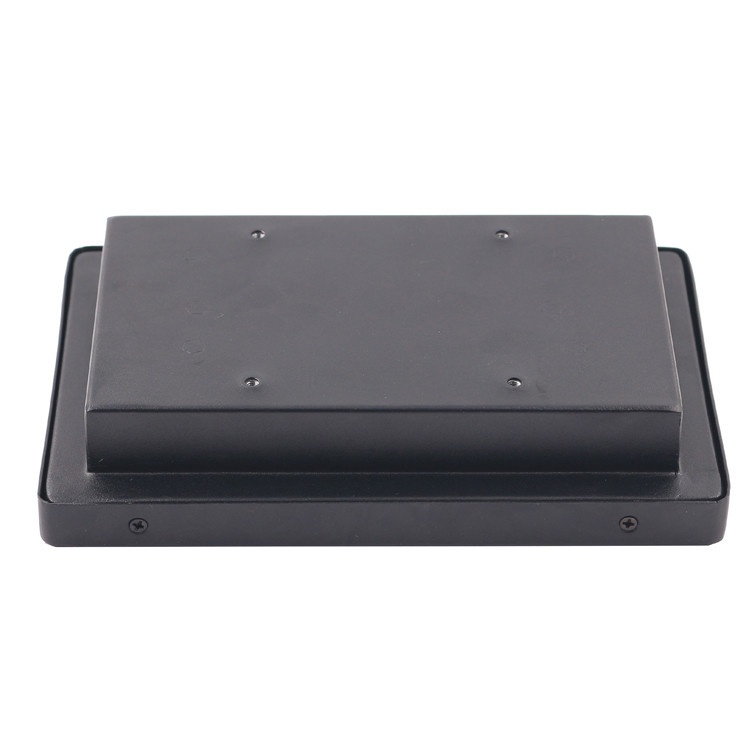

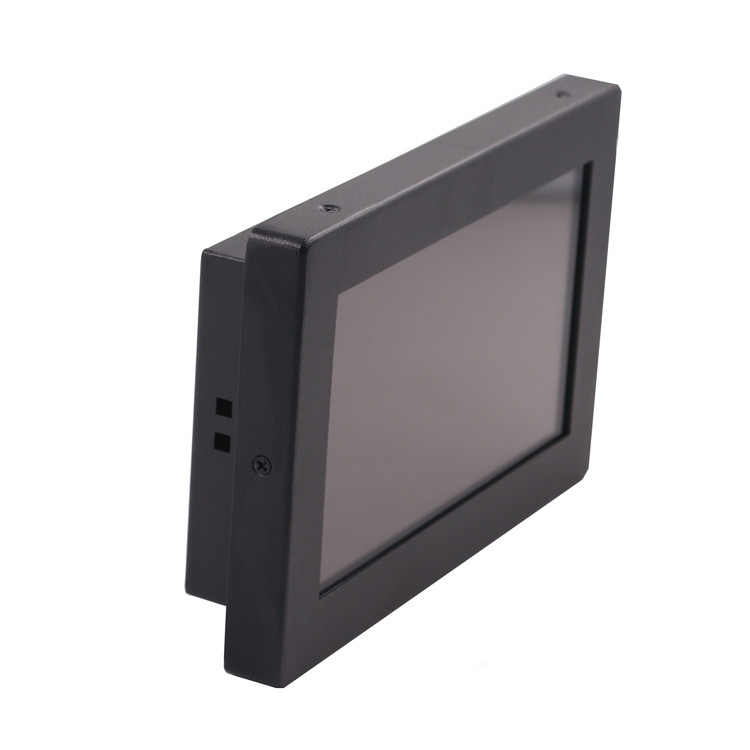

Detailed Image
7" Industrial monitor Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
