Features
1. 1024*768 Resolution 10.4-inch Industrial lcd panel
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. Intel celeron quad-core J1900/2.0Ghz processor
4. 4G DDR3, 64G SSD
5. WIFI integrated
6. High performance motherboard, 7x24 continuous operation
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 4GB (up to 8G) | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 10.4’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232, 1*RS485/RS422(they can switchable via BIOS) | |
| USB | 3xUSB2.0, 1xUSB3.0 | ||
| LAN | 2xRJ45, 10/100/1000 Mbps | ||
| VGA | 1x VGA | ||
| Optional | WIFI | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||

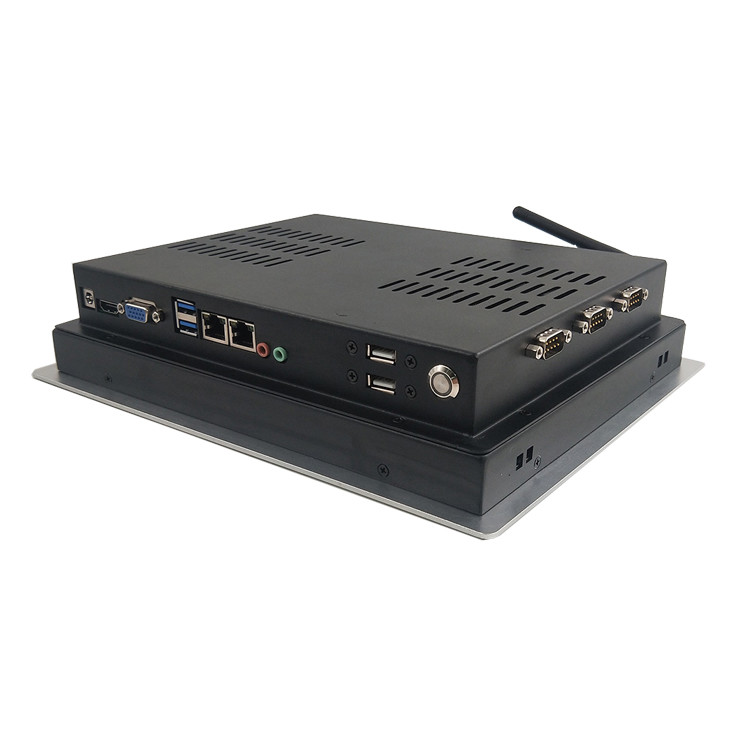

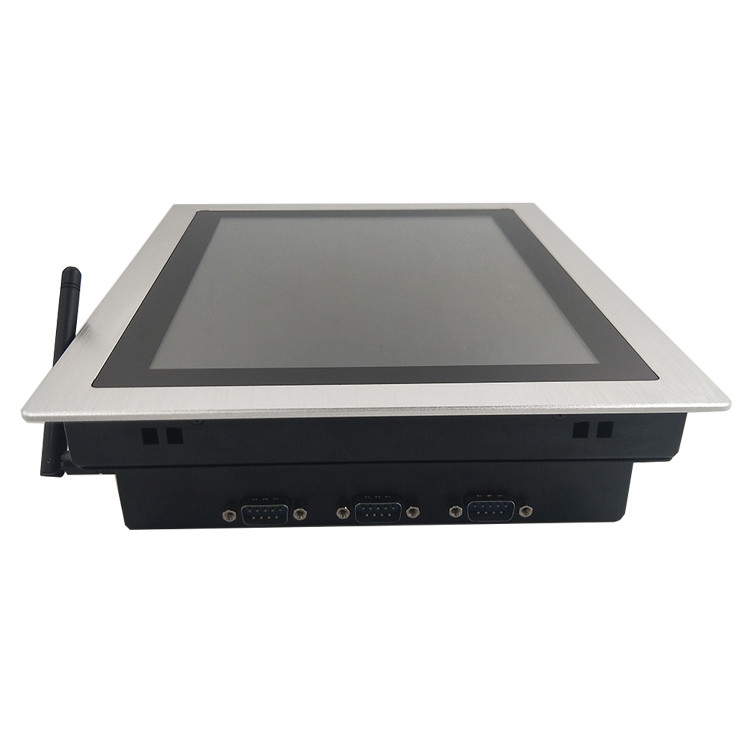

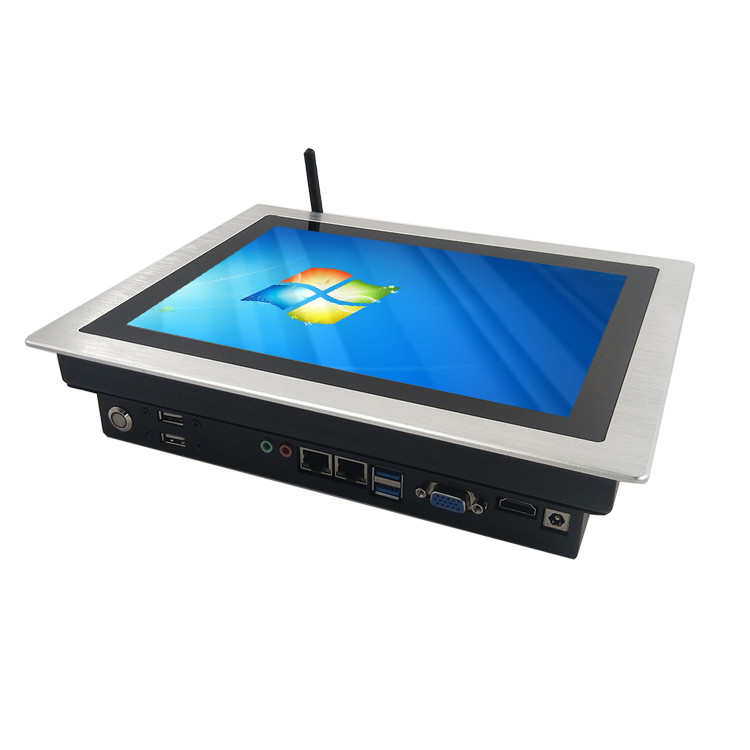

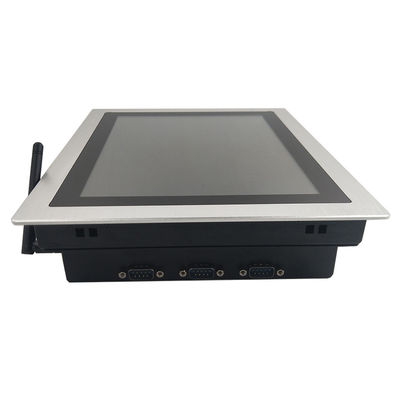

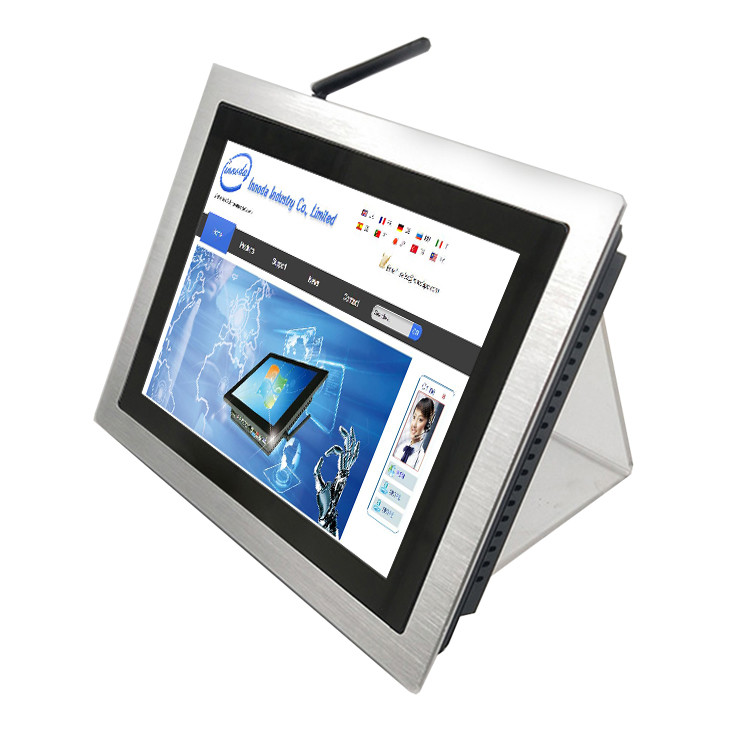

Detailed Image
Customized function
-- 7-42'' size can be choose as you want
samllest is 7'' the biggest is 42''
-- Sunlight readable
1000nits / 1500nits / 2000nits
-- Anti-glare glass / Anti-relective glass
-- Waterproof
Front IP65 / Fully sealed full IP65 /67/68/69K
-- Mounting Type
Desktop / wall mount / Embedded / open frame
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
INNODA have 10years rich experience in Industrial Computer/monitor field. Our eingineers all have at least 13years rich experience.Industrial touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage. Different kind of monitors and android tablet, which can be widely meet client's demands.
Long business relationship and WIn-Win is our goal. Welcome to contac to ask for more information.
