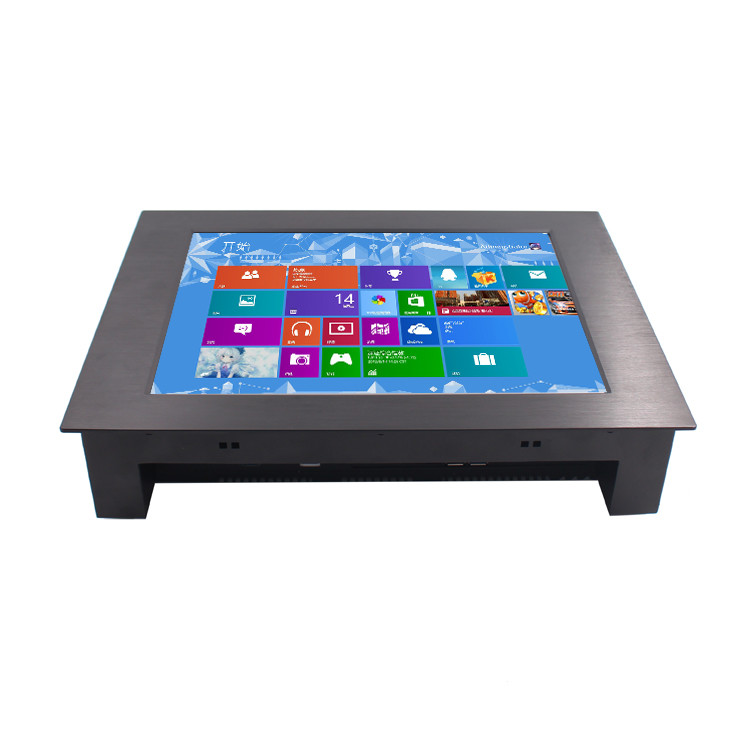

Two Ethernet Industrial Touch Panel Pc 24V Power Supply Fanless Rugged AIO
Features
1. Fully enclosed design, the whole PC is dustproof.
2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points Resistive touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Configuration
| INNODAPC Processor System | CPU | Intel core i5-4210U | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 15’’ LED Panel | |
| Touchscreen Type | Resistive touch screen | ||
| Resolution | 1024(H)x 768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||

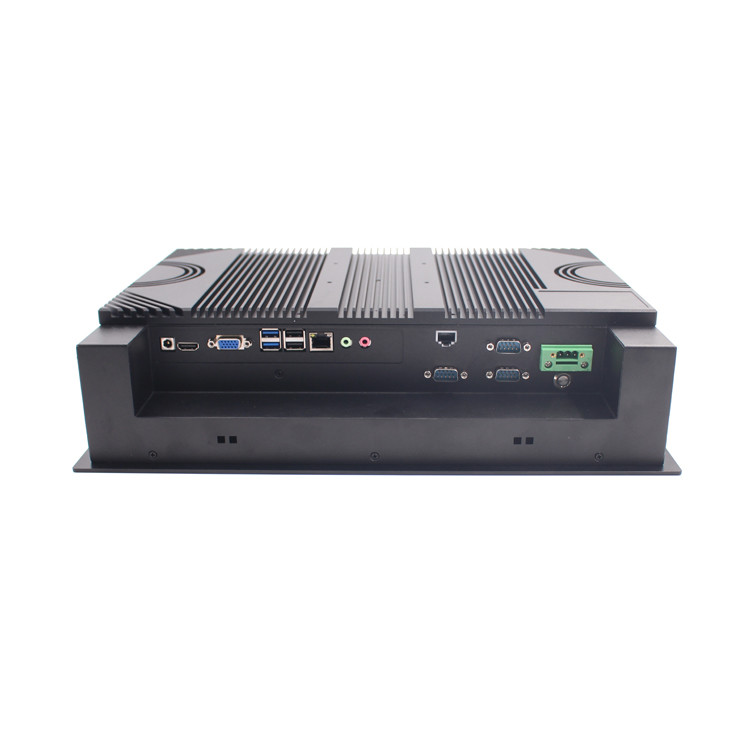

| I/O Interface | COM | 2 x COM | |
| USB | 4xUSB2.0 | ||
| LAN | 2xRJ45, 10/100/1000 Mbps | ||
| VGA | Yes | ||
| Function(Optioanal) | Front IP65 | ||
| 9-36V wide voltage | |||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
Customization
1. Available cpu
Intel J1900 / J3160 / I3/ I5 / I7
2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. WIFI built-in
4. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
5. Material of the goods
Aluminum / Metal / Stainless Steel / ABS
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
