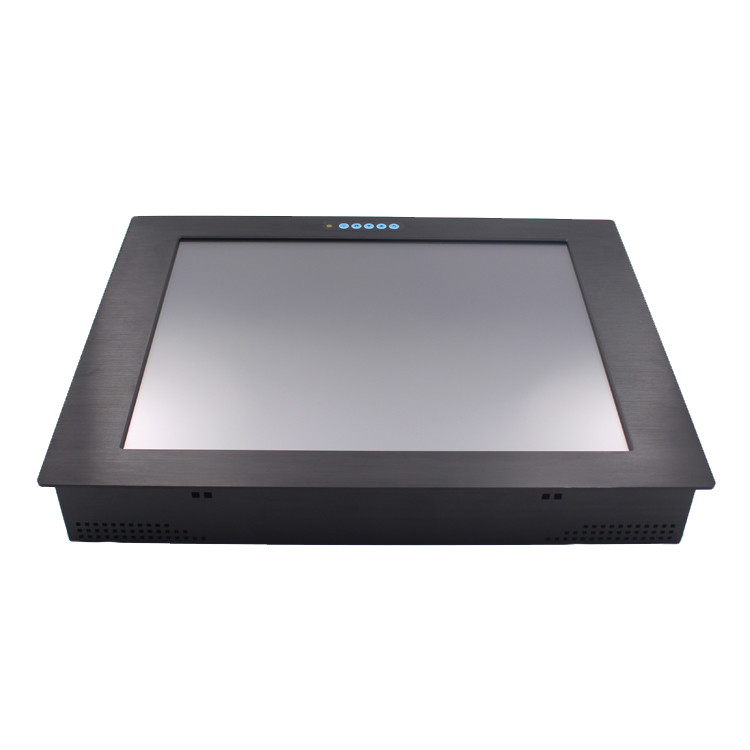

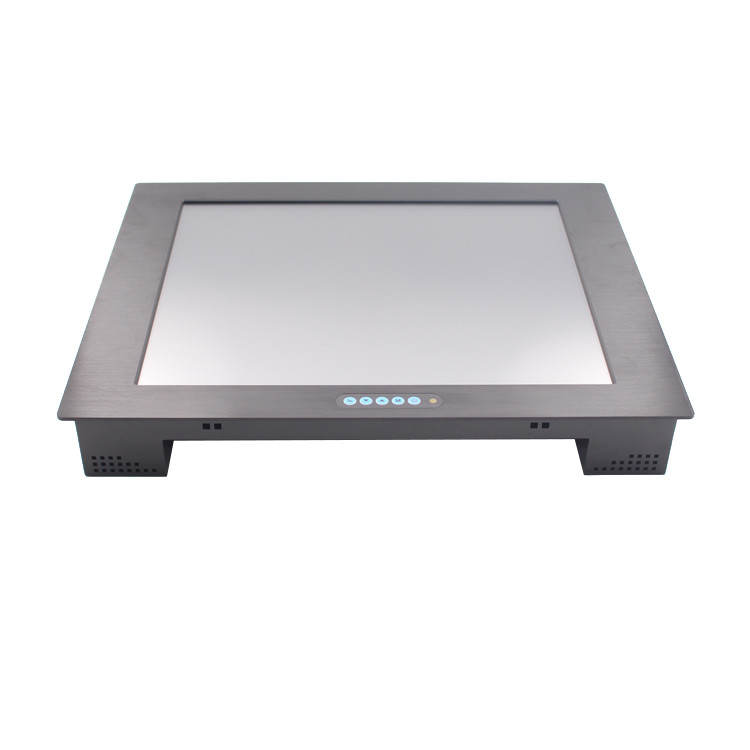

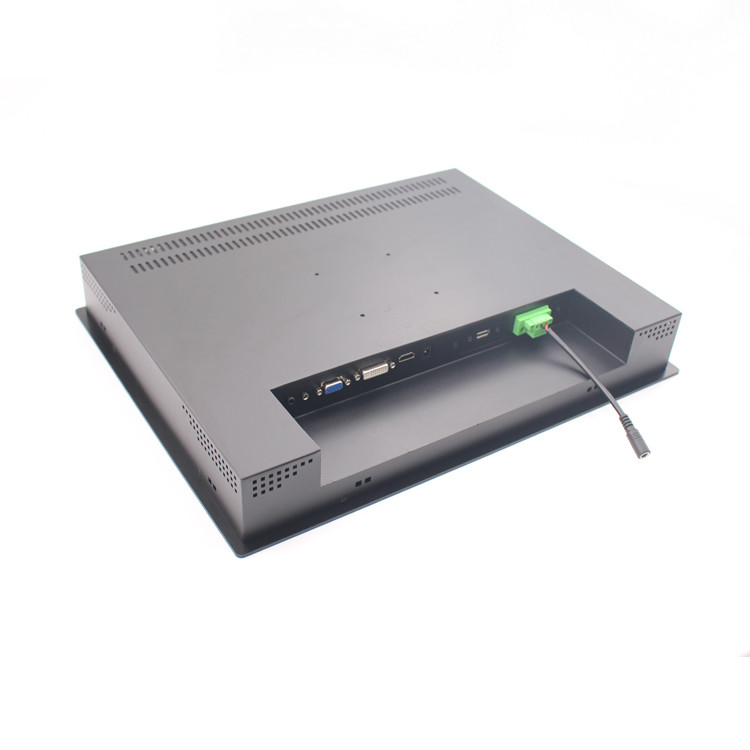

Panel Mount Industrial Monitor 4:3 Aspect Ratio 19-Inch Panel With Resistive Touch
Features of panel mount industrial monitor
1. 19-inch lcd panel with 1280*1024 resolution
2. Brused Aluminum bezel with front IP65 waterproof
3. Ultra-thin front bezel 3-5mm, ideal for embedded mounting.
Configurations of panel mount industrial monitor
| LCD Panel Characteristics | Screen Size | 19-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1280(H)x 1024(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 250cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
|
COM | 1x USB for touch use | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | 9-36V wide voltage | front panel control button | ||
| Mounting type | VESA 75/100mm | |||
| Optional | full wateproof | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operating Temperature | 0~60° C/-20-70C(optional) | |||
Customization of panel mount industrial monitor
1. Screen size
from 7'' to 42'' widely range size can be choose
2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
4. Material of the goods
Aluminum / Metal / Stainless Steel / ABS
Application of panel mount industrial monitor
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
