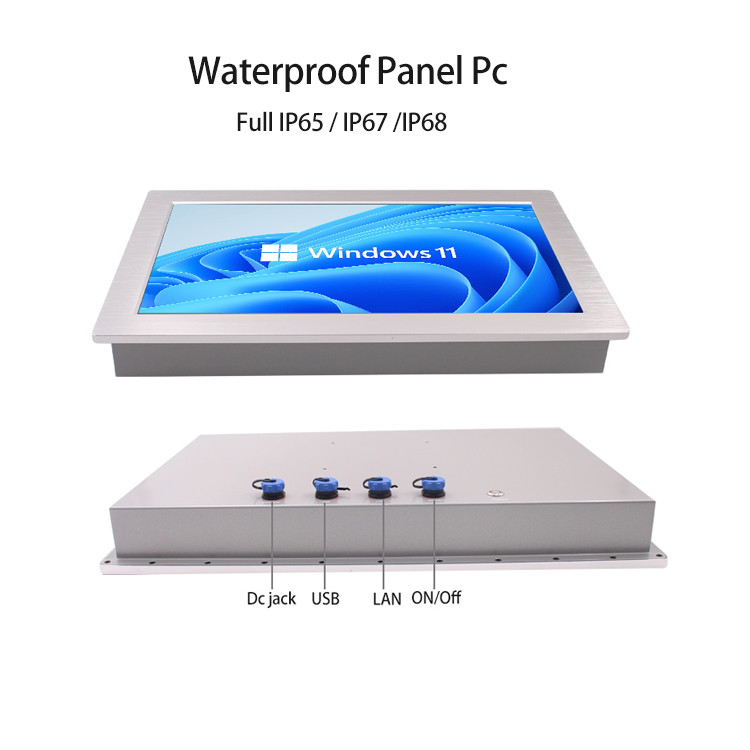

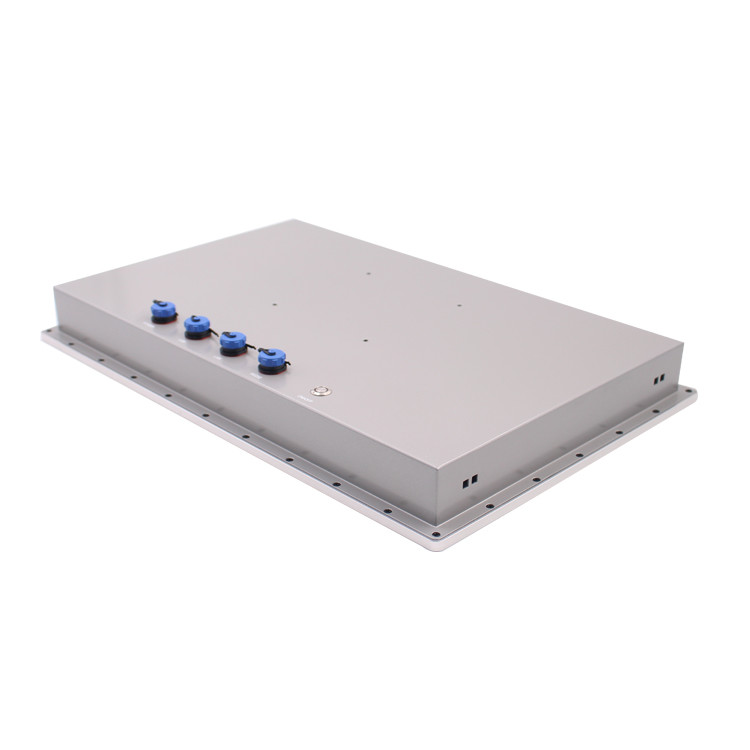

The Waterproof Panel PC is designed for outdoor use and offers industrial-grade protection to dust and water. It offers IP65 / IP67 protection against harsh weather conditions, making it a reliable choice for outdoor applications. The resistive touch screen provides excellent responsiveness and accuracy, while the bright 300cd/m² display ensures sharp visuals for outdoor applications. It is powered by Windows 7/8/10 operating system and has I/O ports including 2 X USB, 1 X COM, 1 X LAN,1xDC for connecting external devices.
| Computer Configurations | |||
| CPU | Intel celeron J4125 | ||
| Memory | 2GB to 8GB, DDR3 | ||
| Built-in Storage | 32G/64G/128G/1TB SSD | ||
| Operation System | win7/8/10,linux, ubuntu | ||
| Power Supply | 12V DC power | ||
| Operating Temperature | -20~70° C | ||
| LCD Panel Charateristics | |||
| Screen Size | 17.3'' industrial grade Panel | ||
| Touchscreen Type(optional) | resistive Touch | ||
| Resoltuion | 1920(H)*(RGB)*1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 300cd/m2 | ||
| View Angle | 80x80(H),80x80(V) | ||
| Contrast Ratio | 700:1 | ||
| I/O Interface | |||
| USB2.0 | 4x USB2.0(up to 6) | ||
| Ethernet | 2xLAN(RJ45) | ||
| COm | 1-4xCOM(RS232/RS485/RS422) | ||
| Power | DC 12V | ||
| Functions | |||
| GPIO | Full IP65 | ||
| Other Information | |||
| Frame Material | Aluminum Alloy/Stainless Steel | ||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||
| VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | ||
| Color | Default balck,also can choose white,silvery or other colour | ||
| Product Dimension(LxWxH) | TBD | ||
| Packing Dimension(LxWxH) | TBD | ||
IND173PC INNODAPC Waterproof Panel PC is a perfect choice for industrial and outdoor display applications. It is certified with CEE, FCC, IP65 and RoHS. The panel pc supports a wall mount installation and comes with a resistive touch screen with 1920 x 1080 resolution. This waterproof panel pc is designed for heavy duty and extreme conditions with a working temperature range of -20℃ to +60℃. It is equipped with two USB ports, one COM port, one LAN port and one DC port. The minimum order quantity is 5. This waterproof panel pc provides a reliable and durable solution for industrial and outdoor display applications.
The Waterproof Panel PC is packaged for shipping in an industrial-grade cardboard box. The cardboard box is designed to protect the product during transit and is sized for the appropriate weight and dimensions of the product.
The box is then secured with bubble wrap and taped securely. We also place foam padding around the product to protect it from any shocks or rough handling during transport.
We use a variety of reliable shipping companies to ensure timely and safe delivery. Depending on the destination, we may use air freight, ground shipping, or sea freight to get the product to its destination.
