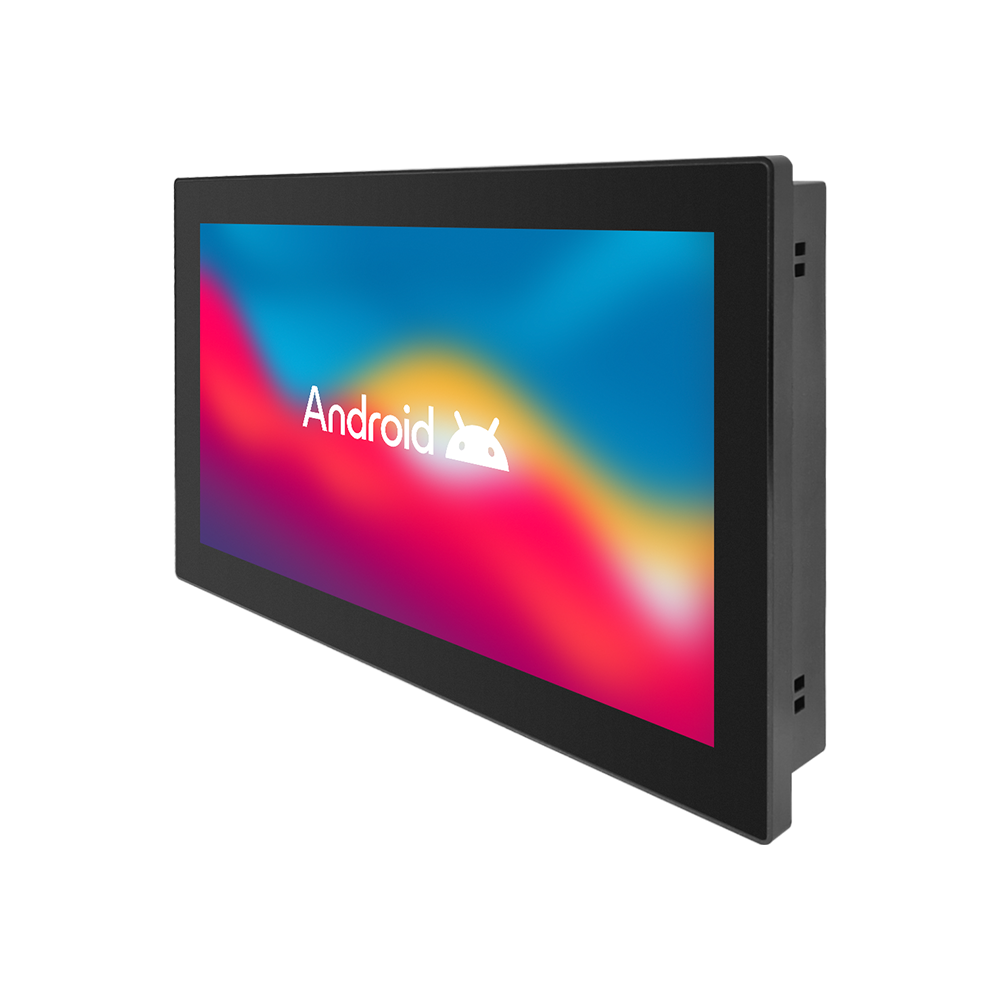

15.6″ Full IP65 Waterproof Android Industrial Panel PC

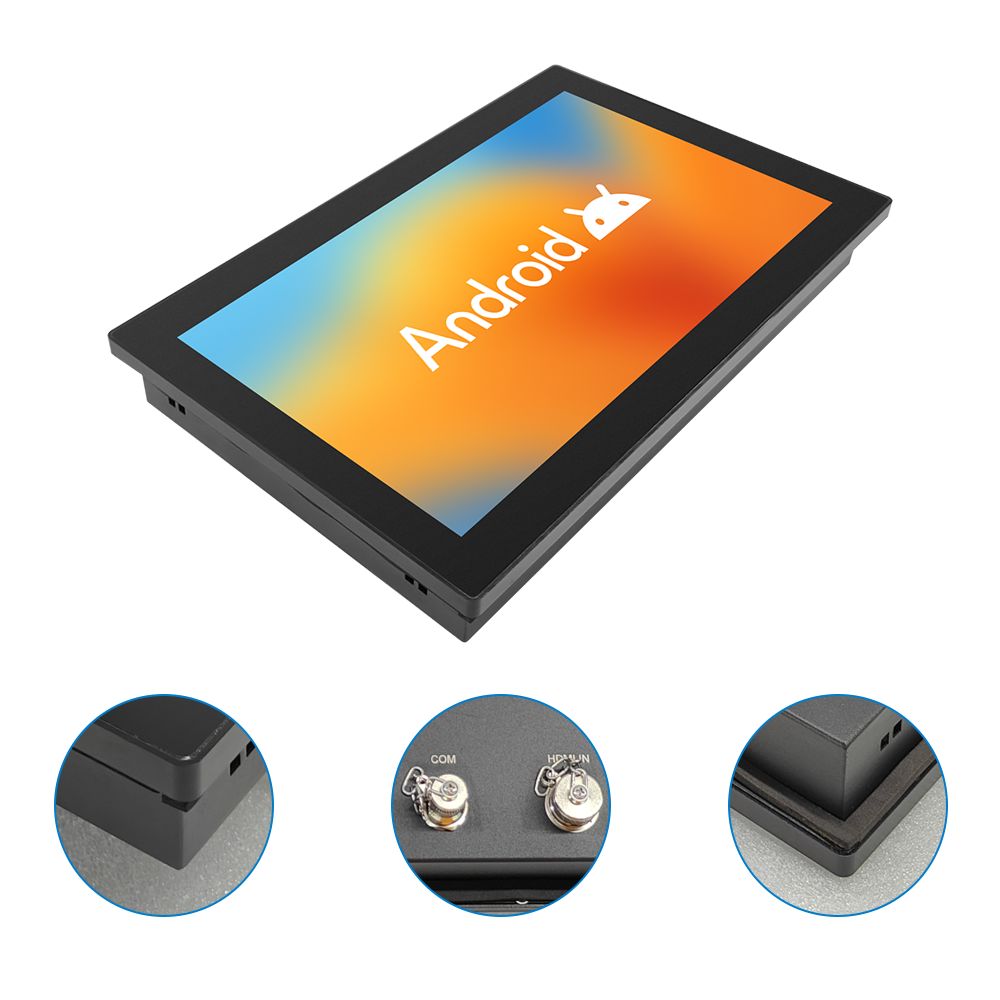

  • Full-Sealed Enclosure Protection: Precision CNC brushed aluminum front bezel combined with a rugged steel chassis, providing true 6-sided full IP65/IP67 waterproof and dustproof reliability.

  • Dual Waterproof Antenna & HDMI IN: Integrated dual high-gain external antenna ports (for 4G/5G/Wi-Fi/GPS) alongside an industrial HDMI IN video capture input for multi-source monitoring.

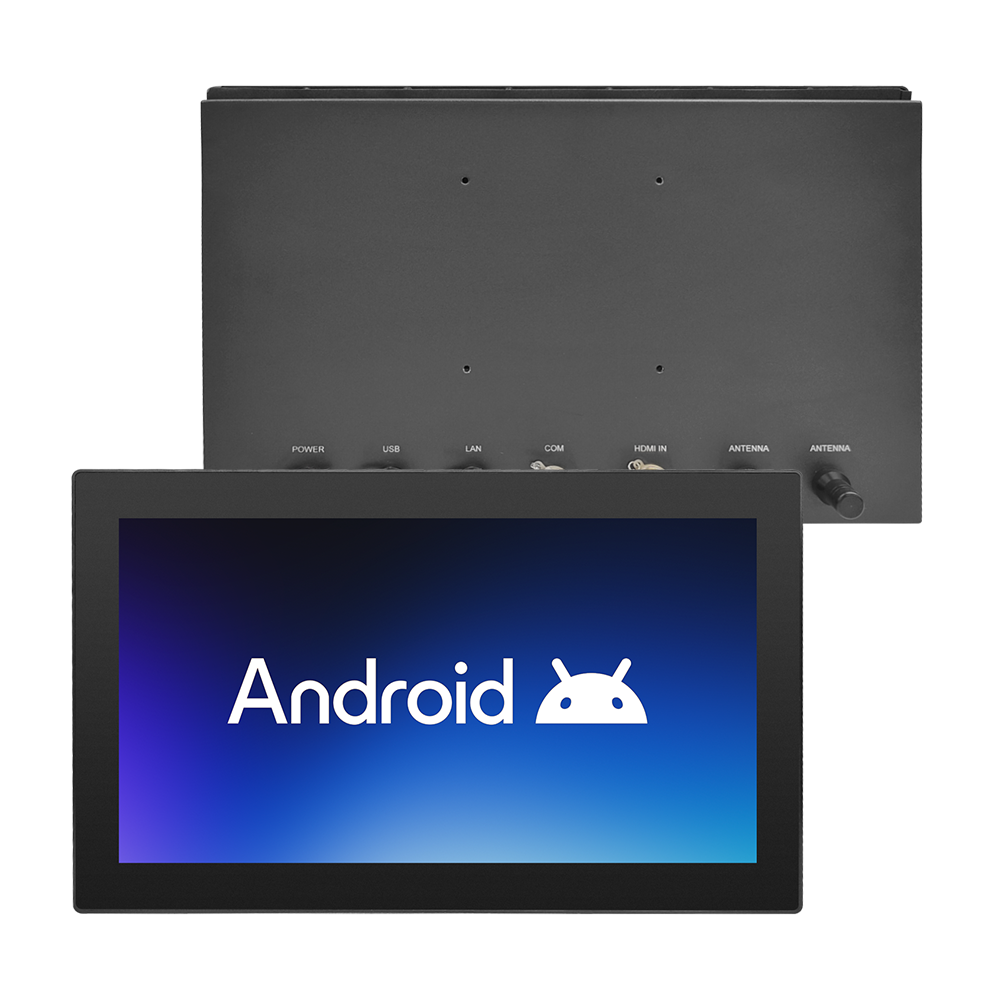

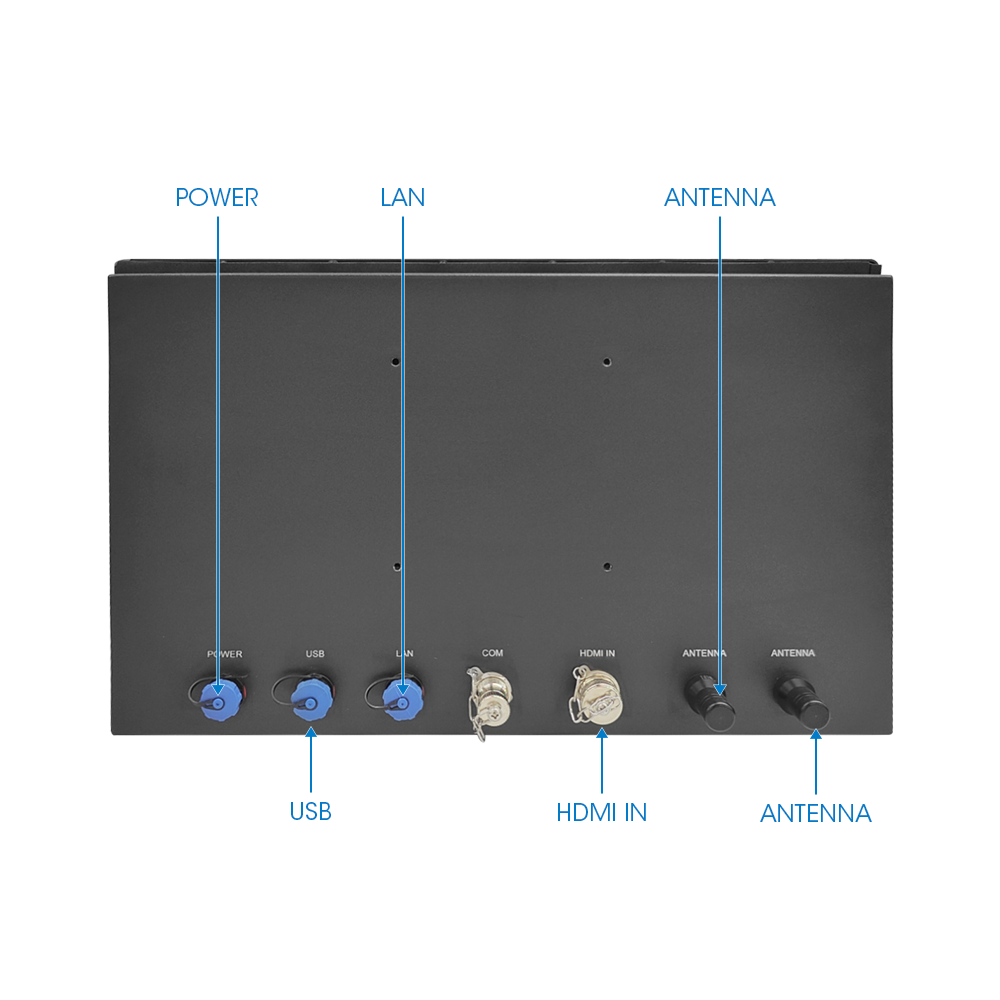

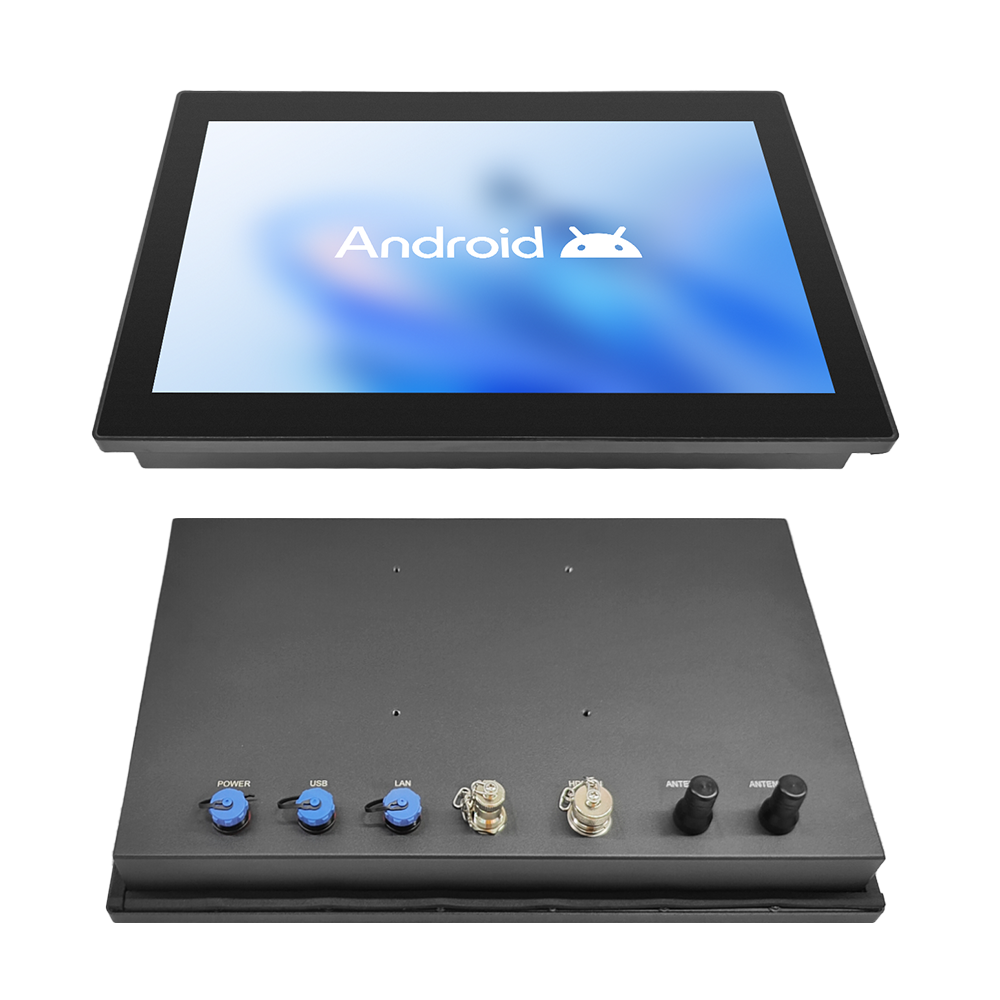

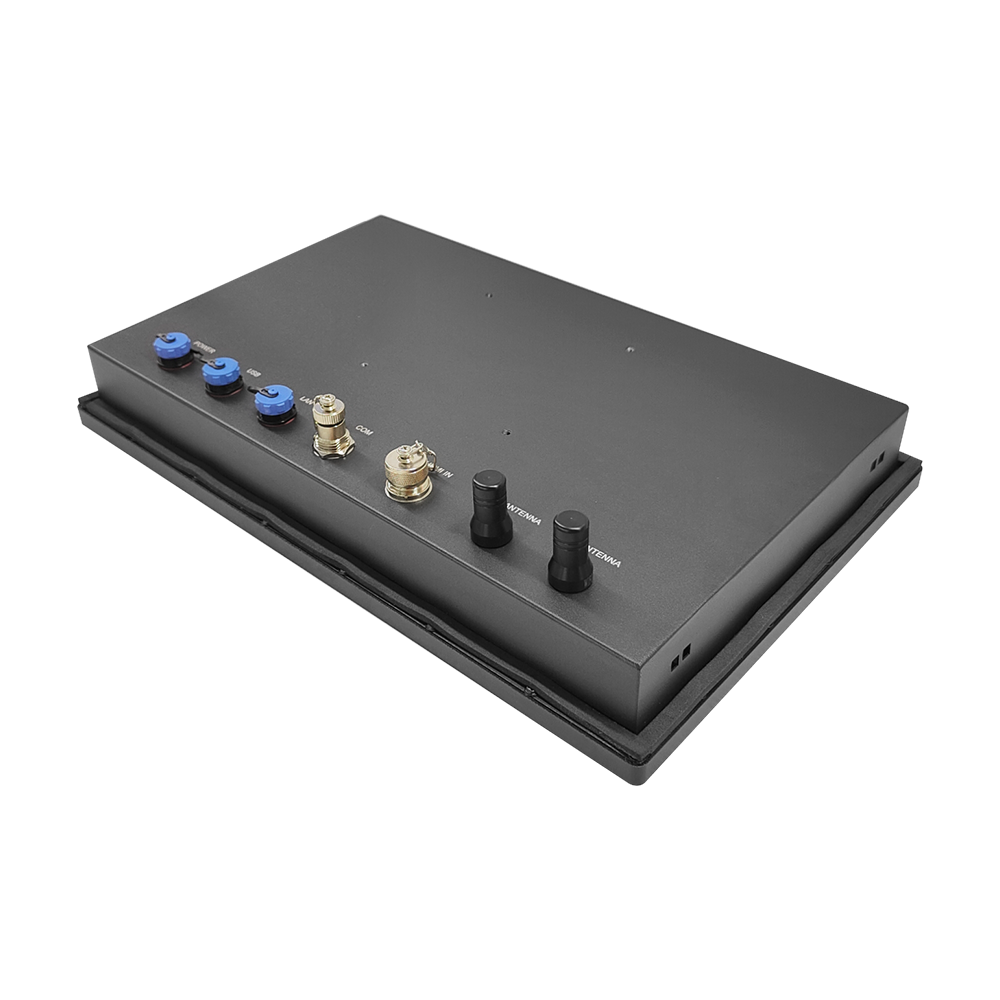

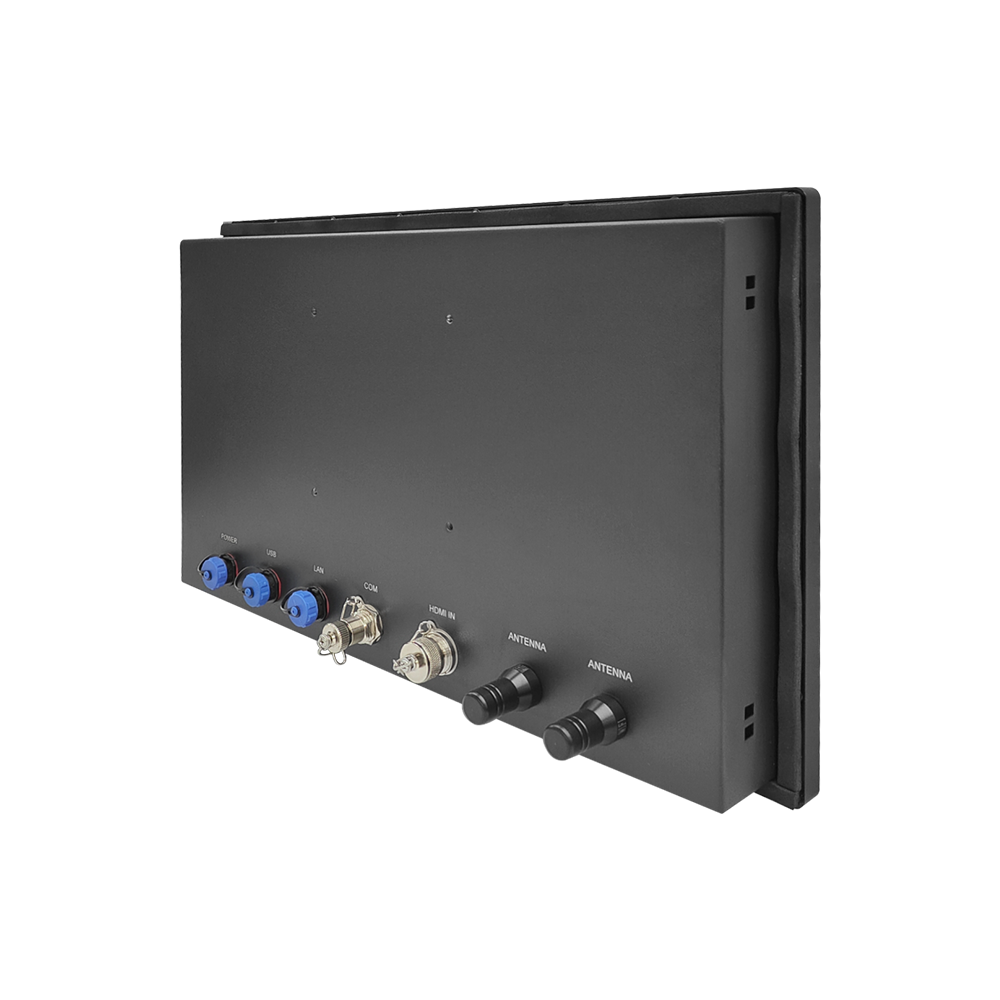

  • Industrial Locking Aviation I/O: Sealed circular waterproof connectors (Power, USB, LAN, COM, HDMI IN) with protective dust caps and anti-drop tether chains.

  • High-Efficiency Android Architecture: Smooth Android OS supporting customized APK software deployment, edge computing, remote device management, and low power consumption.

  • Target Applications: Engineered for smart agriculture tractors/harvesters, reach stackers & gantry cranes, uncrewed ground vehicle (UGV) telemetry, environmental air/water monitoring stations, and mining remote consoles.

Category:
Item Specifications
System & Hardware Performance
Processor (CPU) Rockchip® RK3568 / RK3588 / RK3399 / RK3288 Quad/Octa-Core Cortex Processor
AI Computing (NPU) Integrated NPU up to 1.0 TOPs (RK3568) / 6.0 TOPs (RK3588) for Edge AI & Vision
Memory (RAM) 2GB / 4GB / 8GB / 16GB LPDDR4/LPDDR4X
Storage (eMMC) 16GB / 32GB / 64GB / 128GB eMMC 5.1 (Micro SD / TF Card Expansion up to 256GB)
Operating System Android 11.0 / 12.0 / 13.0 (Optional: Linux Ubuntu, Debian, Buildroot)
System Features Root Access, SDK / API Provided, ADB Debugging, Watchdog Timer, Auto Power On
LCD Panel Characteristics
Screen Size 15.6″ TFT LCD (7″ to 55″ available upon request)
Resolution 1920 × 1080XGA (Optional: 1920 × 1080 Full HD)
Aspect Ratio 16:9
Brightness 350 cd/m² (High Brightness 1000–1500 nits Sunlight Readable Optional)
Viewing Angle 80°/80° (H), 80°/80° (V) / Full Viewing Angle Optional
Contrast Ratio 800:1 / 1000:1
Backlight MTBF ≥ 50,000 Hours
Touchscreen Options
Touch Type Projected Capacitive (PCAP 10-Point Multi-Touch) / 5-Wire Resistive / Non-Touch
Surface Hardness ≥ 7H (PCAP Glass) / ≥ 3H (Resistive)
Touch Durability ≥ 50 Million Touches
Light Transmission ≥ 88% (Resistive) / ≥ 90% (PCAP)
I/O Interfaces & Connectivity
Standard I/O Ports 2–4 × USB 2.0/3.0, 1 × USB OTG, 1 × HDMI Output, 1 × RJ45 LAN (100/1000M)
Serial Ports 1–4 × RS232 / RS485 COM (Isolated Optional)
Wireless Connectivity Dual-Band Wi-Fi (2.4GHz/5GHz), Bluetooth 5.0, 4G/5G LTE Module with SIM Slot
Audio 1 × 3.5mm Audio Output / Built-in Dual Speakers (8Ω 2W)
Power Input Standard DC 12V / Optional DC 9–36V Wide Voltage Input
Optional Modules & Expansion
Data Capture & Camera Integrated 2MP/5MP/8MP Camera, 2D Barcode Scanner, RFID / NFC Reader
Industrial Bus CAN Bus, Isolated GPIO / DIO (Digital I/O)
Mechanical & Environmental
Enclosure Material Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal
Surface Finish Sandblasted Anodized / Powder Coated / CNC Brushed
Housing Color Default Black / Industrial Silver / Custom RAL Colors
IP Protection Front Panel IP65 (Full Enclosure IP65/IP67 Waterproof Optional)
Mounting Options VESA 75×75 / 100×100 mm, Panel Mount, Embedded, Desktop Stand
Operating Temperature -20°C to 60°C (-4°F to 140°F) (Wide Temp -30°C to 80°C Optional)
Storage Temperature -30°C to 80°C (-22°F to 176°F)
Certifications CE, FCC, RoHS Compliant
