Extreme Outdoor Sunlight Readability & Optical Bonding Technology

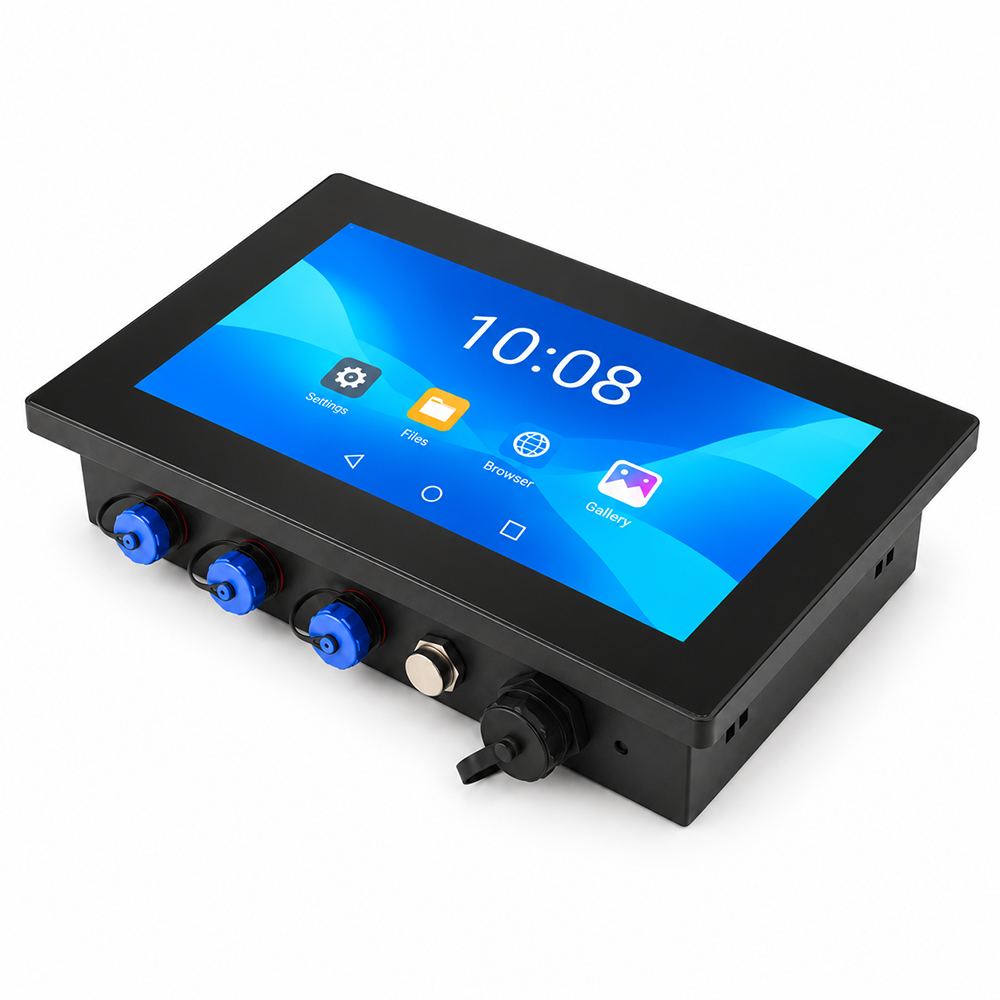

The 10.1-inch full waterproof Android industrial panel PC is purpose-built for harsh outdoor environments, smart mobile machinery, mining equipment, and marine control consoles where intense ambient glare and moisture ingress pose severe challenges. Equipped with a 1000 nits ultra-high-brightness panel, the display undergoes an advanced Optical Bonding process that fuses the protective cover glass directly to the LCD layer. This eliminates the internal air gap, dramatically reduces light refraction, enhances structural shock resistance, and delivers crystal-clear readability even under direct, blinding sunlight.
To withstand extreme temperature fluctuations without internal condensation, the unit integrates an industrial stainless steel/brass waterproof breather valve that automatically balances internal pressure while maintaining an absolute IP65 seal against water and dust. The external interfaces utilize heavy-duty circular aviation connectors with screw-locking mechanisms and tethered protective caps, ensuring impenetrable reliability against vibrations, washdown sprays, and mechanical stress.
Comprehensive Hardware Specifications
| System & Computing Core | |
| Processor Platform | • Rockchip RK3568 Quad-Core Cortex-A55 @ 2.0GHz (Standard Energy-Efficient SoC) • Rockchip RK3588 Flagship Octa-Core with 6 TOPS NPU (Optional High-Performance AI Vision Configuration) • Allwinner / NXP i.MX8M Industrial ARM Processors (Customizable upon request) |
| System Memory (RAM) | 2GB / 4GB / 8GB High-Speed LPDDR4/LPDDR4x |
| Onboard Storage | 16GB / 32GB / 64GB / 128GB High-Reliability eMMC 5.1 Flash |
| Operating Systems | Android 11 / Android 12 / Android 13, Linux (Ubuntu 20.04/22.04, Debian 11), Buildroot |
| Display & Optical Technology | |
| Screen Size & Ratio | 10.1-inch Industrial Grade A+ TFT LCD / 16:10 Widescreen Ratio |
| Native Resolution | 1280 × 800 WXGA (Optional 1920 × 1200 Full HD IPS Panel) |
| Luminance (Brightness) | 1000 nits (cd/m²) Sunlight Readable (Customizable from 500 up to 1500 nits with Auto-Dimming Light Sensor) |
| Optical Enhancement | Full OCA/OCR Optical Bonding (Zero internal air gap, eliminates condensation between glass and panel, improves shock resistance) |
| Surface Treatment | Anti-Glare (AG) Chemical Etching (Reduces reflection and glare), Anti-Fingerprint (AF), Anti-Reflective (AR) Optional |
| Touch Technology | True-Flat Projected Capacitive (PCAP) Multi-Touch, ≥7H Hardness Tempered Glass, Wet-Hand & Industrial Glove Compatible |
| Chassis & Waterproof Aviation I/O | |
| Chassis Construction | Precision CNC-machined anodized aluminum front bezel + rugged powder-coated metal rear cover |
| Ingress Protection | Full IP65 (Complete 6-sided dust-tight & high-pressure water-spray resistance) |
| Anti-Fogging System | Integrated industrial waterproof & breathable pressure equalization valve (balances interior/exterior pressure, prevents thermal condensation) |

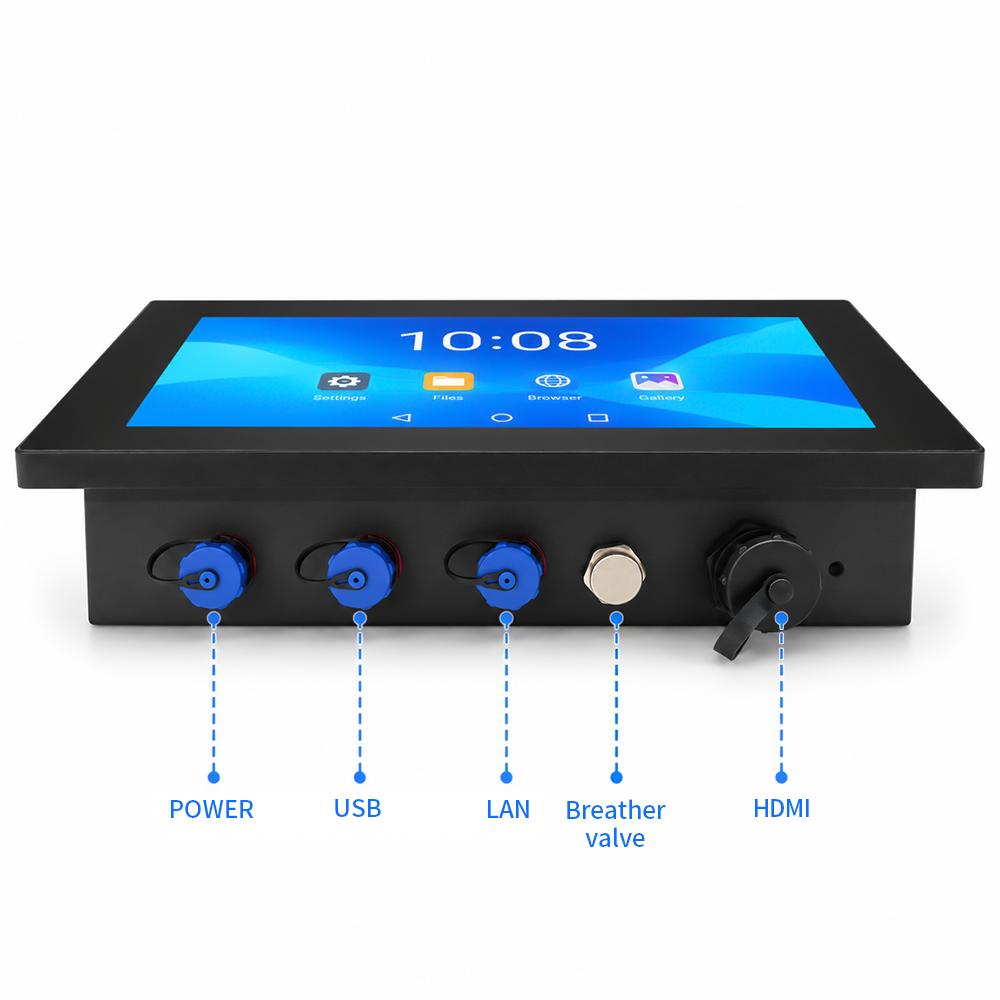

| Waterproof Aviation Ports | • 1x Screw-locking Waterproof DC Power Input Connector • 1x Screw-locking Waterproof USB Port (USB 2.0 / OTG Host) • 1x Screw-locking Waterproof RJ45 Ethernet Port (10/100/1000 Mbps) • 1x Screw-locking Waterproof HDMI Video Output Connector • All I/O equipped with flexible tethered silicone waterproof and dustproof sealing caps |
| Power, Cooling & Environmental | |
| Power Input Range | DC 12V Input (Optional DC 9V ~ 36V wide-range vehicle/industrial power module with surge protection) |
| Thermal Dissipation | 100% Fanless conduction cooling through the CNC aluminum chassis (Zero maintenance, silent operation) |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) wide temperature operation (Optional -30°C to 80°C extreme customization) |

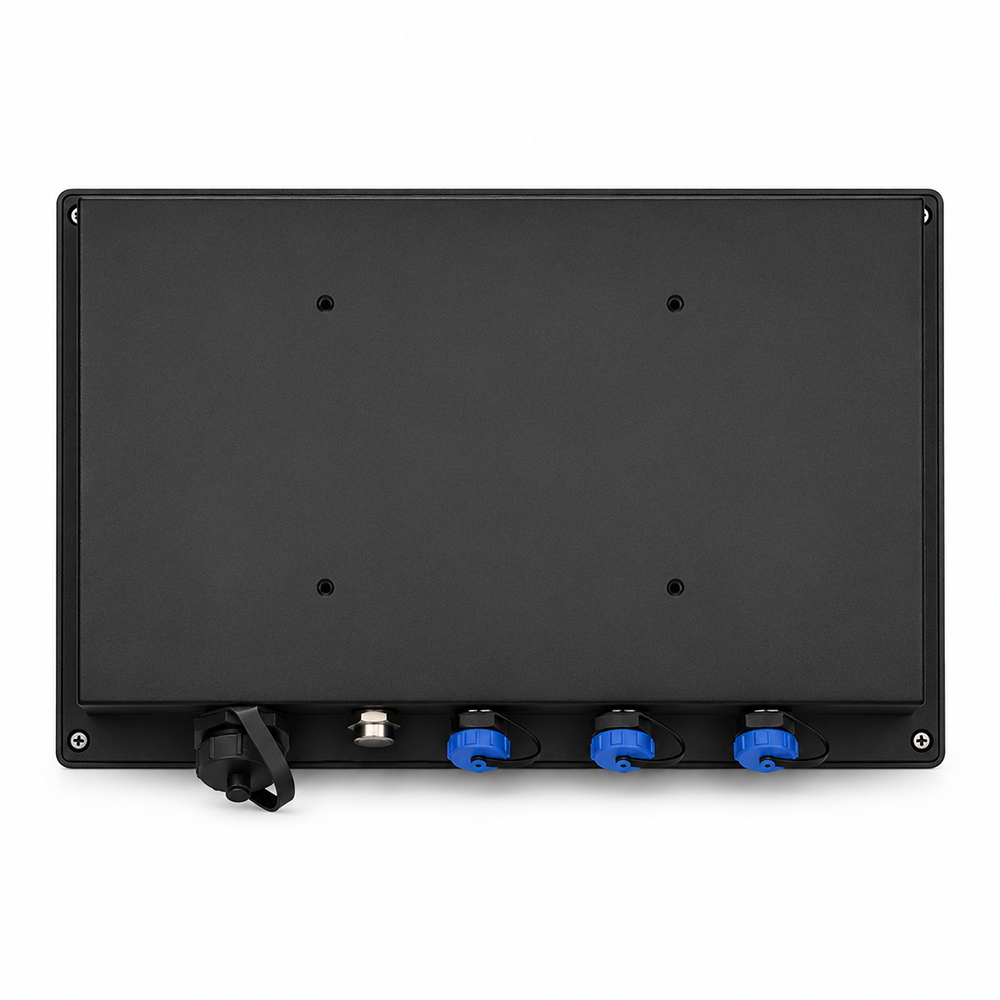

| Mounting Options | Standard VESA 75×75mm rear mounting pattern (Compatible with RAM vehicle mounts, swing arms, and panel clamp brackets) |
| Certifications & Testing | CE, FCC Class A, RoHS, IP65 Waterproof Ingress Certification, ISO9001 |
