Engineered for Extreme Washdown & Sterile Environments

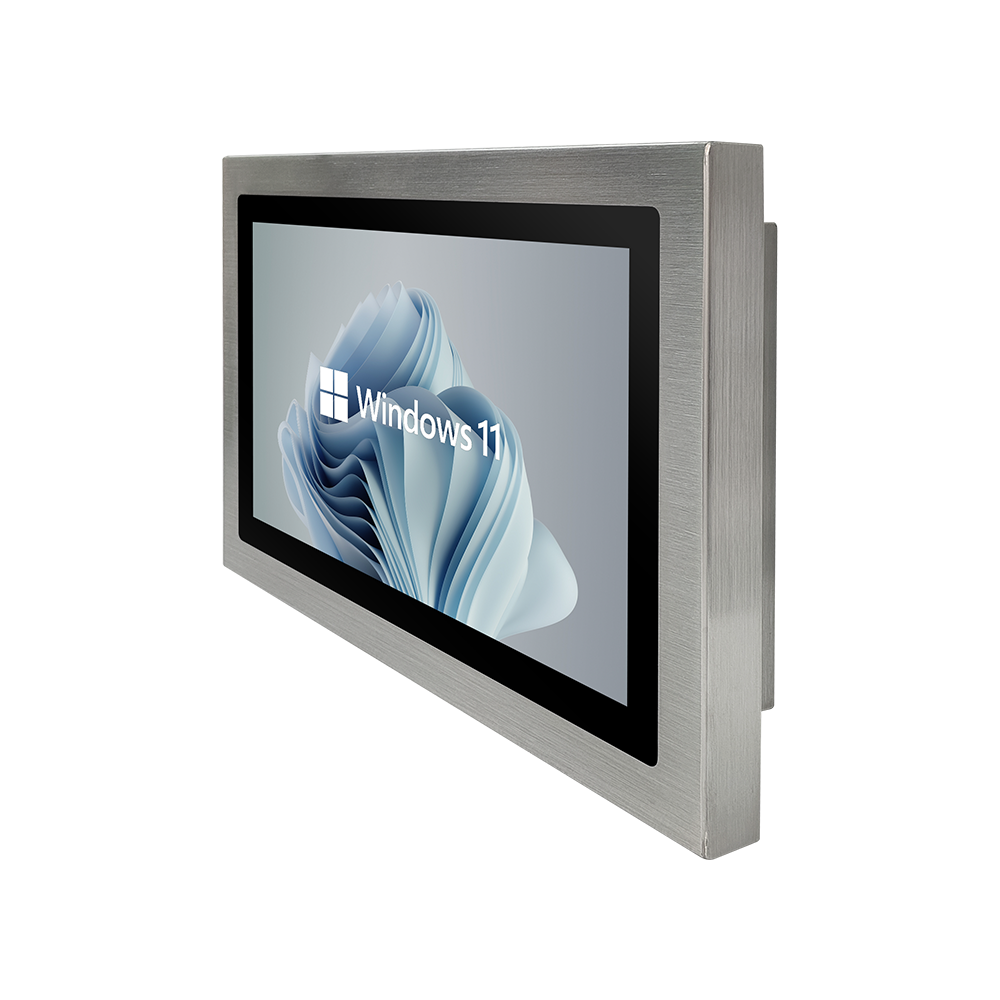

In harsh hygiene environments such as poultry processing lines, beverage bottling plants, and biopharmaceutical compounding suites, consumer-grade or standard aluminum PCs fail rapidly due to caustic chemical corrosion and high-pressure water ingress. The INNODA 15.6″ Stainless Steel Industrial Panel PC eliminates moisture accumulation, liquid siphoning, and particulate crevices with its fully sealed SUS304/316 chassis and rugged M12 aviation-grade connectors.
Comprehensive Hardware Specifications
| System & Computing Core | |
| Processor (CPU) |
• Intel® Celeron® J1900 (Quad-Core, 2.0 GHz up to 2.42 GHz)
• Intel® Celeron® J6412 (Elkhart Lake, Quad-Core up to 2.6 GHz)
• Intel® Core™ i3/i5/i7 (8th/10th/11th Gen) U-Series for High-Computing MES Tasks |
| System Memory (RAM) | DDR3L / DDR4 SO-DIMM socket, 4GB / 8GB / 16GB / 32GB optional (Industrial Grade) |
| Storage Options (SSD/HDD) |
• 1x mSATA SSD / M.2 NVMe SSD (64GB / 128GB / 256GB / 512GB / 1TB)
• 1x 2.5″ SATA SSD/HDD bay supported (Internal anti-vibration mount) |
| Operating Systems (OS) | Windows 10 IoT Enterprise, Windows 11 Pro, Linux (Ubuntu, Debian, CentOS) |
| Display & Touch Panel | |
| Display Size & Aspect Ratio | 15.6-inch Industrial Grade TFT LCD / 16:9 Widescreen |
| Native Resolution | Full HD 1920 × 1080 (Optional 1366 × 768) |
| Luminance (Brightness) | 350 nits standard (Optional 1000 nits high-brightness optical bonding for outdoor sunlight readability) |
| Touch Screen Type | Projected Capacitive (PCAP) 10-Point Multi-Touch, 7H surface hardness, supports wet hands, chemical wipes, and latex/rubber gloves |
| Enclosure & Industrial M12 Interfaces | |
| Housing Material | Food-Grade SUS304 Stainless Steel (Optional SUS316L for marine salt-fog and aggressive acidic/alkali washdowns) |
| Protection Rating | Full IP66 / IP69K all-around enclosure (Resists 100 bar / 1450 psi high-pressure hot water jets up to 80°C) |

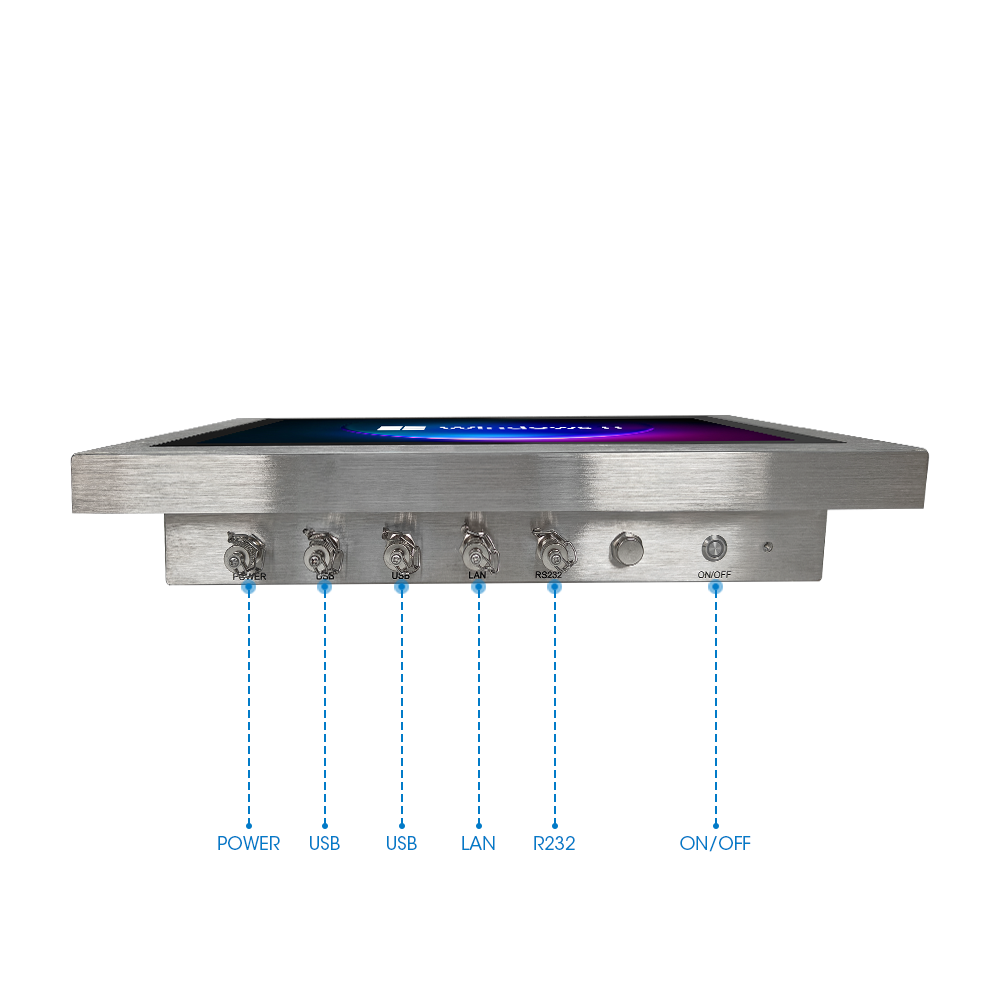

| Waterproof M12 Ports (Down-facing) |
• 1x M12 DC Power Input (Locking Thread)
• 2x M12 USB 2.0 / USB 3.0 Ports
• 1x M12 RJ45 Gigabit Ethernet (LAN)
• 1x M12 RS232 / RS485 Serial COM Port
• 1x Waterproof Stainless Steel On/Off Power Switch with LED Ring |
| Wireless Expansion | Built-in Mini-PCIe / M.2 slot for Wi-Fi/Bluetooth/4G LTE with 2x external sealed rubber-duck antennas |
| Electrical & Environmental | |
| Power Input | Wide Voltage DC 9V–36V with over-voltage, over-current, and reverse polarity protection (Optional AC 100–240V adapter) |
| Cooling System | Completely fanless passive thermal dissipation via internal aluminum-conduction heatsink |
| Operating Temperature | Standard: -10°C to 60°C; Extended Wide Temp: -20°C to 70°C customizable |

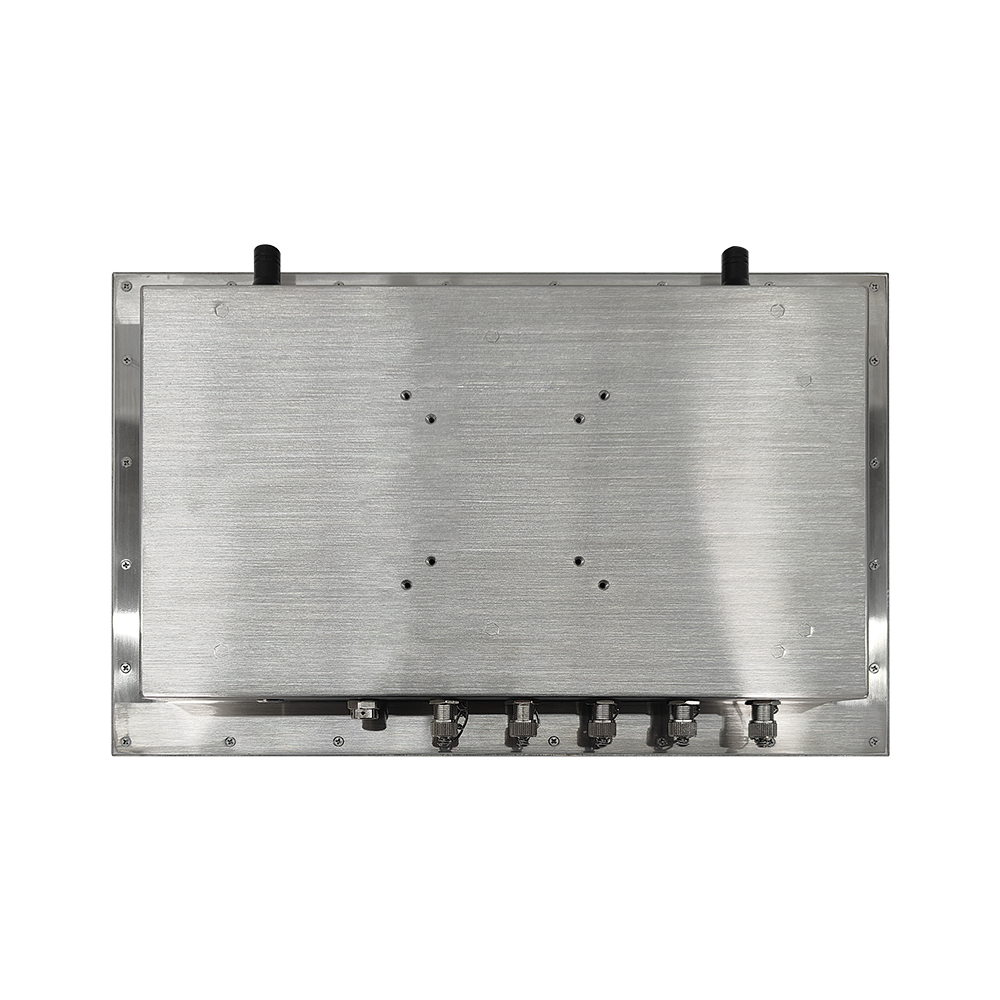

| Mounting Method | Rear standard VESA 75 × 75 mm / 100 × 100 mm, Swing-Arm mounting, Desktop bracket optional |
