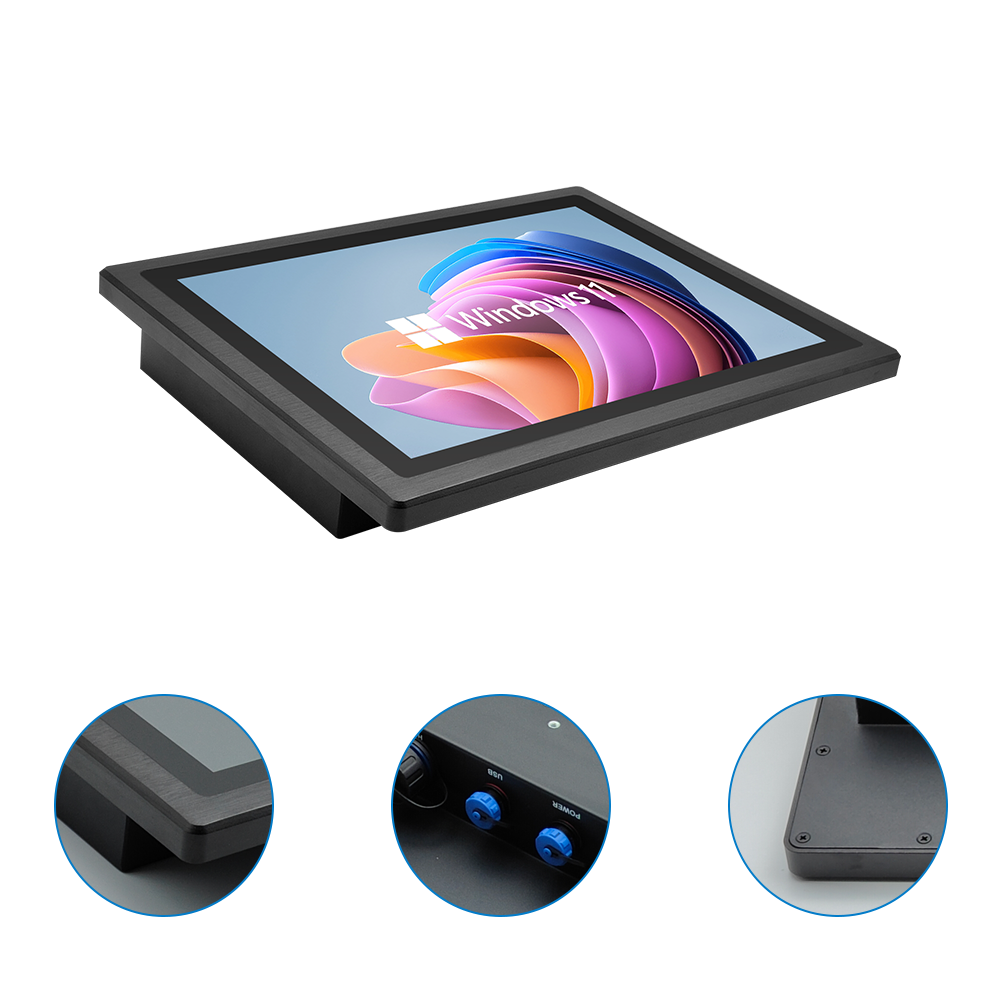

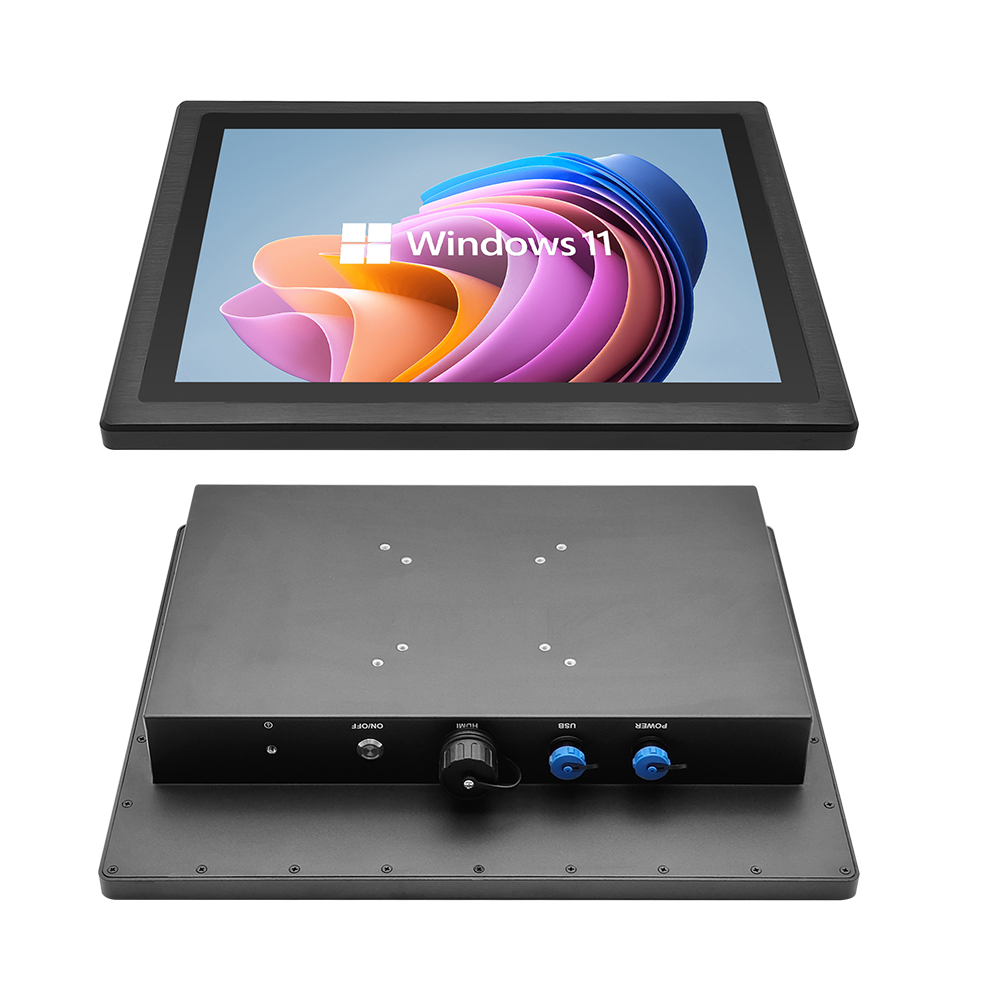

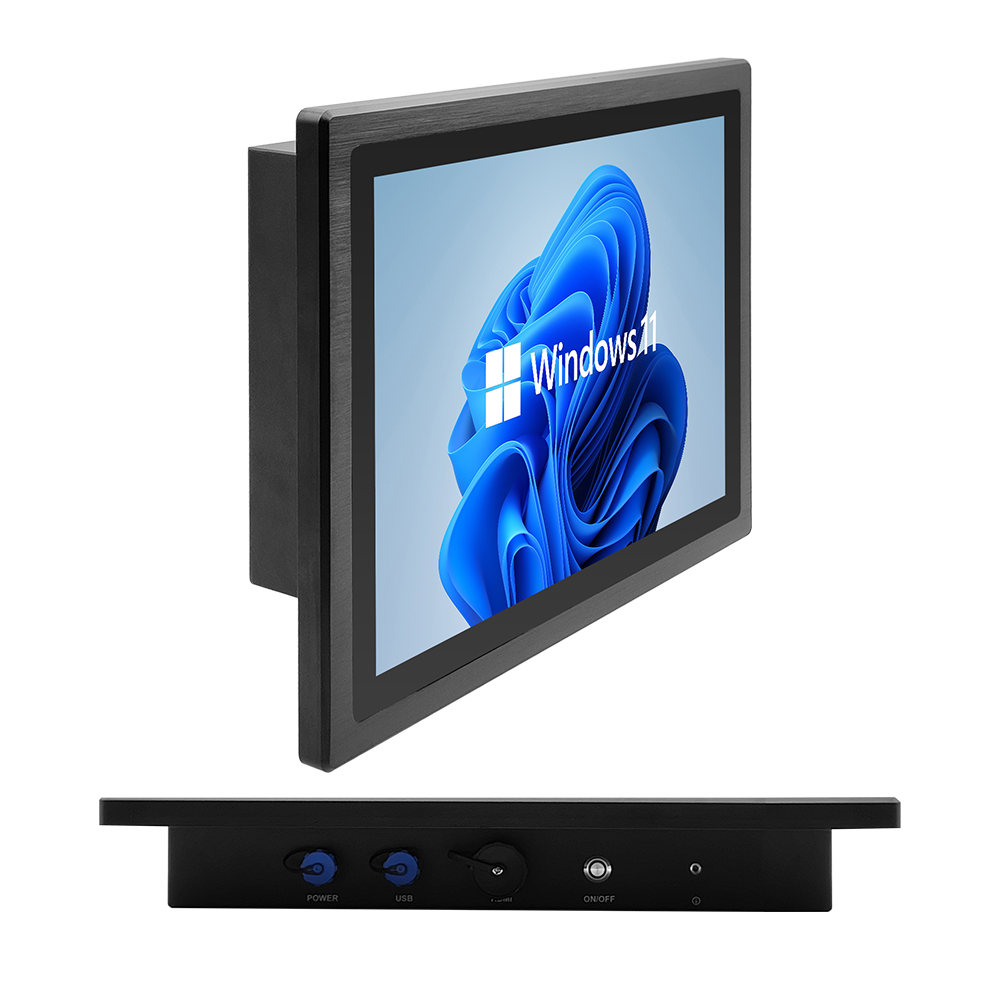

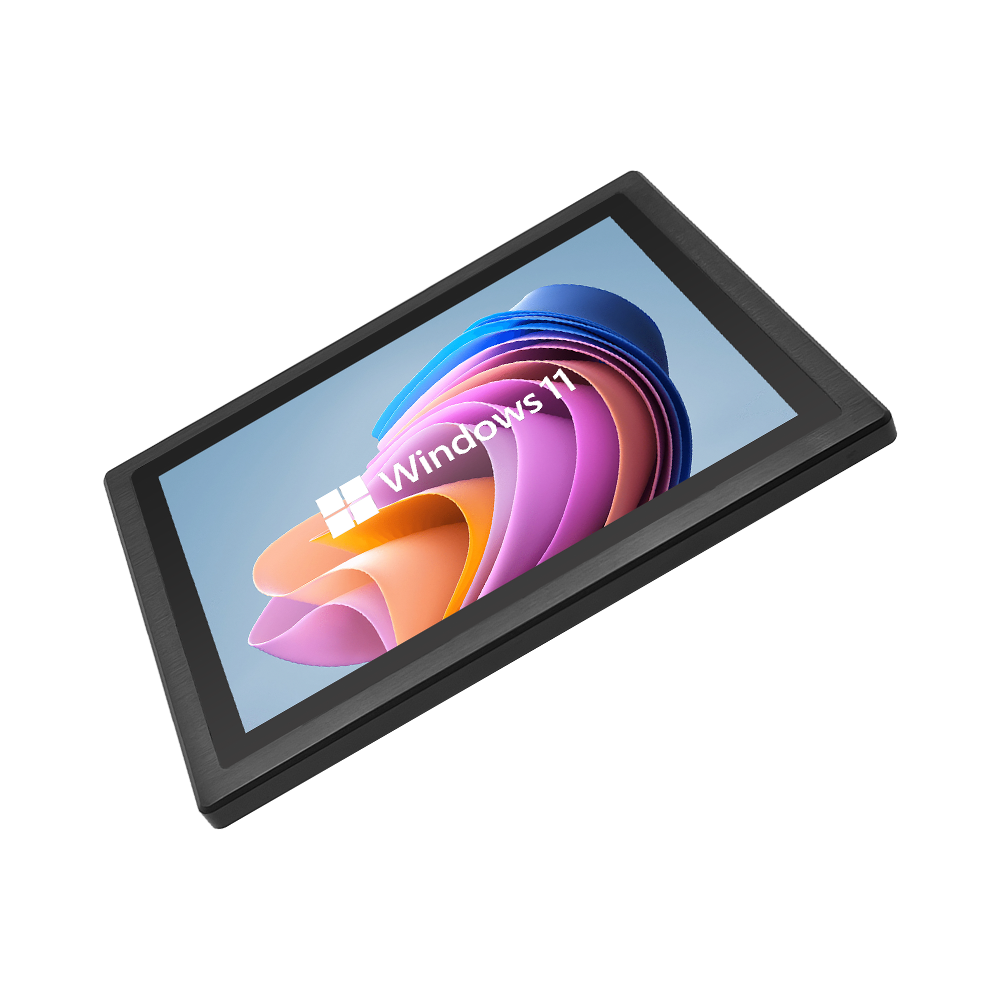

15″ Full IP65 Waterproof CNC Aluminum Touch Monitor

  • Full-Sealed Enclosure Protection: Precision CNC brushed aluminum front bezel combined with a heavy-duty steel rear chassis, delivering certified full IP65/IP66 waterproof and dustproof reliability.

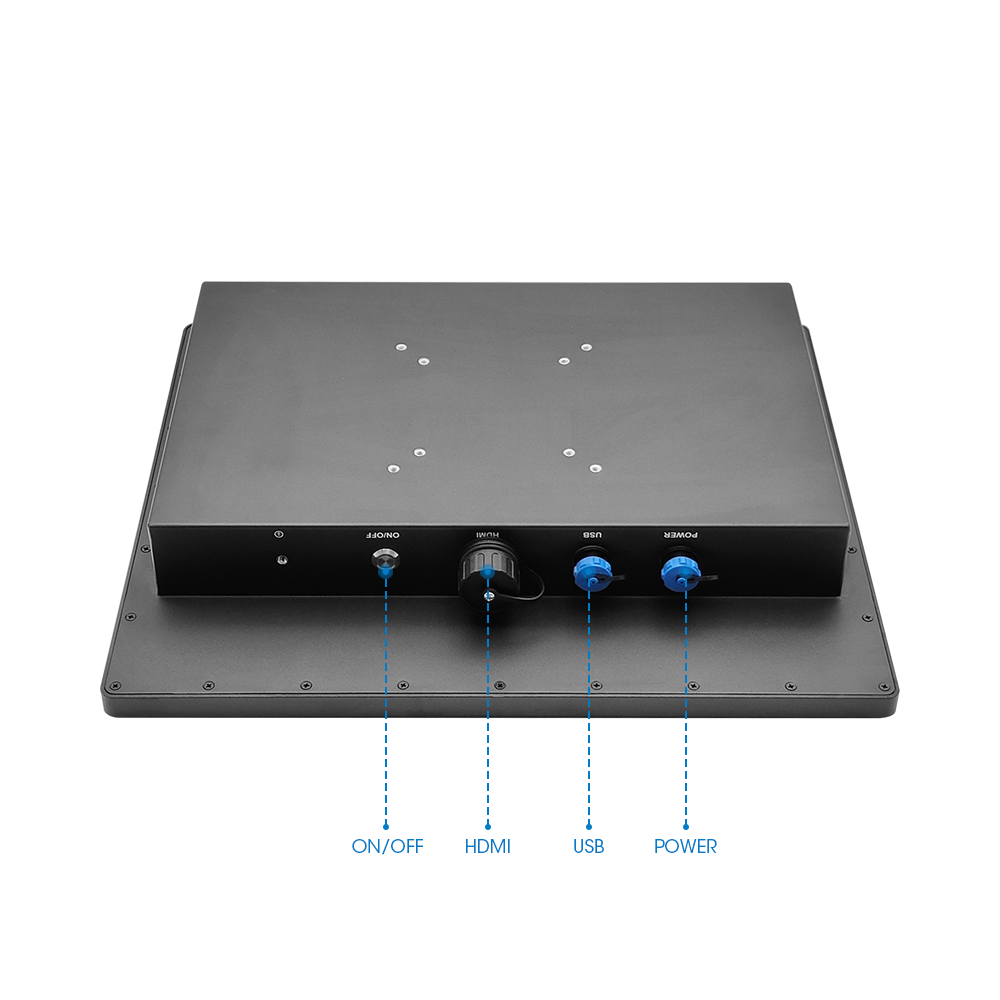

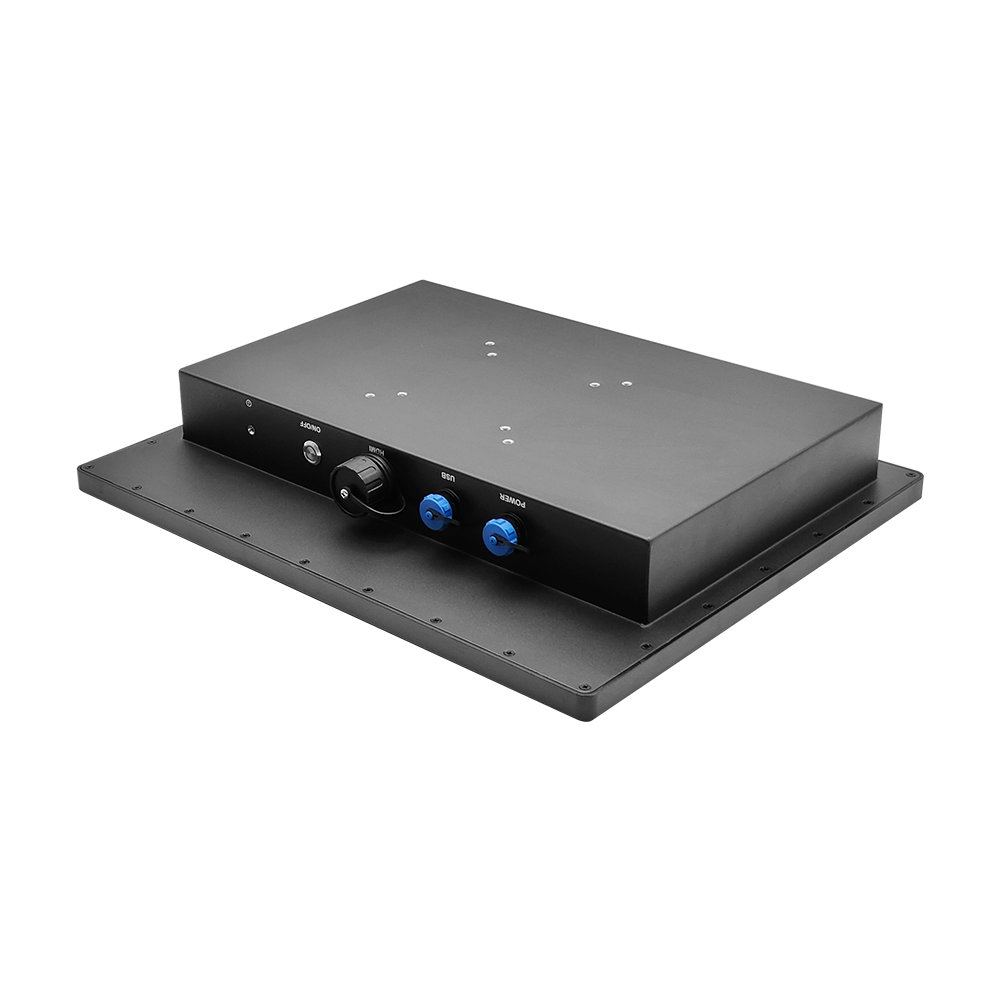

  • Industrial Locking Waterproof I/O: Integrated sealed circular aviation connectors (HDMI video, USB touch, DC Power) and waterproof metal switch with protective dust caps.

  • Responsive 4:3 Capacitive Touch: 15″ XGA (1024×768) industrial LCD featuring responsive projected capacitive (PCAP) multi-touch, supporting gloved and wet-finger operation.

  • Fanless Shockproof Architecture: Finned passive cooling design engineered for silent, 24/7 continuous operation in high-moisture, high-vibration industrial settings.

  • Target Applications: Engineered for pulp & paper processing plants, commercial laundry automation, cold storage seafood sorting lines, concrete batching consoles, and outdoor greenhouse irrigation systems.

Categories: , ,
Item Specifications
LCD Panel Characteristics
Screen Size 15″ (7″ to 55″ available upon request)
Resolution 1024× 768 Full HD
Aspect Ratio 4:3
Brightness 1000–1500 cd/m² (Sunlight Readable)
Viewing Angle 80°/80° (H), 80°/80° (V) / Full Viewing Angle Optional
Contrast Ratio 1000:1
Backlight MTBF ≥ 50,000 Hours
Touchscreen Characteristics (Optional)
Touch Type Projected Capacitive (PCAP) / 5-Wire Resistive / Infrared (IR) / Non-Touch
Surface Hardness ≥ 7H (PCAP) / ≥ 3H (Resistive)
Touch Durability ≥ 50 Million Touches (PCAP) / ≥ 35 Million Touches (Resistive)
Light Transmission ≥ 88% (Resistive) / ≥ 90% (PCAP)
I/O & Power Interface
Video Inputs 1 × HDMI, 1 × VGA (Optional: DVI, DisplayPort)
Touch Interface 1 × USB (Type-B / Type-A) or RS232 COM for touch controller
Audio 1 × 3.5mm Audio In/Out (Built-in Speakers Optional)
Power Input Standard DC 12V / Optional DC 9–36V Wide Voltage Input
Mechanical & Environmental
Enclosure Material Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal
Surface Finish Sandblasted Anodized / Powder Coated / CNC Brushed
Housing Color Default Black / Silver / Custom RAL Colors
IP Protection Front Panel IP65 (Full Enclosure IP65/IP67/IP69K Optional)
Mounting Options VESA 75×75 / 100×100 mm, Panel Mount, Open Frame, Desktop Stand
Operating Temperature -20°C to 70°C (-4°F to 158°F)
Storage Temperature -30°C to 80°C (-22°F to 176°F)
Certifications CE, FCC, RoHS Compliant
