High Computing Power & Robust Connectivity for Factory Automation
Modern production lines and industrial machinery demand powerful local processing and diverse legacy peripheral integration. The INNODA 15″ Industrial Touch Panel PC bridges heavy-duty durability and responsive computing power, integrating an Intel® Core™ i5-6200U dual-core four-thread processor within a CNC aluminum-framed, steel-reinforced chassis. Designed with dual independent Gigabit Ethernet ports and 3 serial COM ports, it easily connects field sensors, motion controllers, and enterprise manufacturing systems simultaneously.
Comprehensive Hardware Specifications
| System & Computing Core | |
| Processor (CPU) |
• Intel® Core™ i5-6200U (Dual-Core, 4 Threads, 2.30 GHz base up to 2.80 GHz Turbo, 3MB Cache) • Optional: Intel® Core™ i3 / i7 6th Gen U-Series customizable |
| System Memory (RAM) | 1x DDR3L / DDR4 SO-DIMM slot, 4GB / 8GB / 16GB High-Speed Industrial Memory |
| Storage Drive (SSD/HDD) |
• 1x Full-size mSATA SSD (64GB / 128GB / 256GB / 512GB / 1TB) • 1x Internal 2.5″ SATA III HDD/SSD drive bay supported |
| Graphics & Audio | Integrated Intel® HD Graphics 520, Realtek ALC662 Audio Controller (Mic-in & Line-out audio jacks) |
| Operating Systems (OS) | Windows 7, Windows 10 Pro / IoT Enterprise, Windows 11, Linux (Ubuntu, Debian) |
| Display & Touch Panel | |

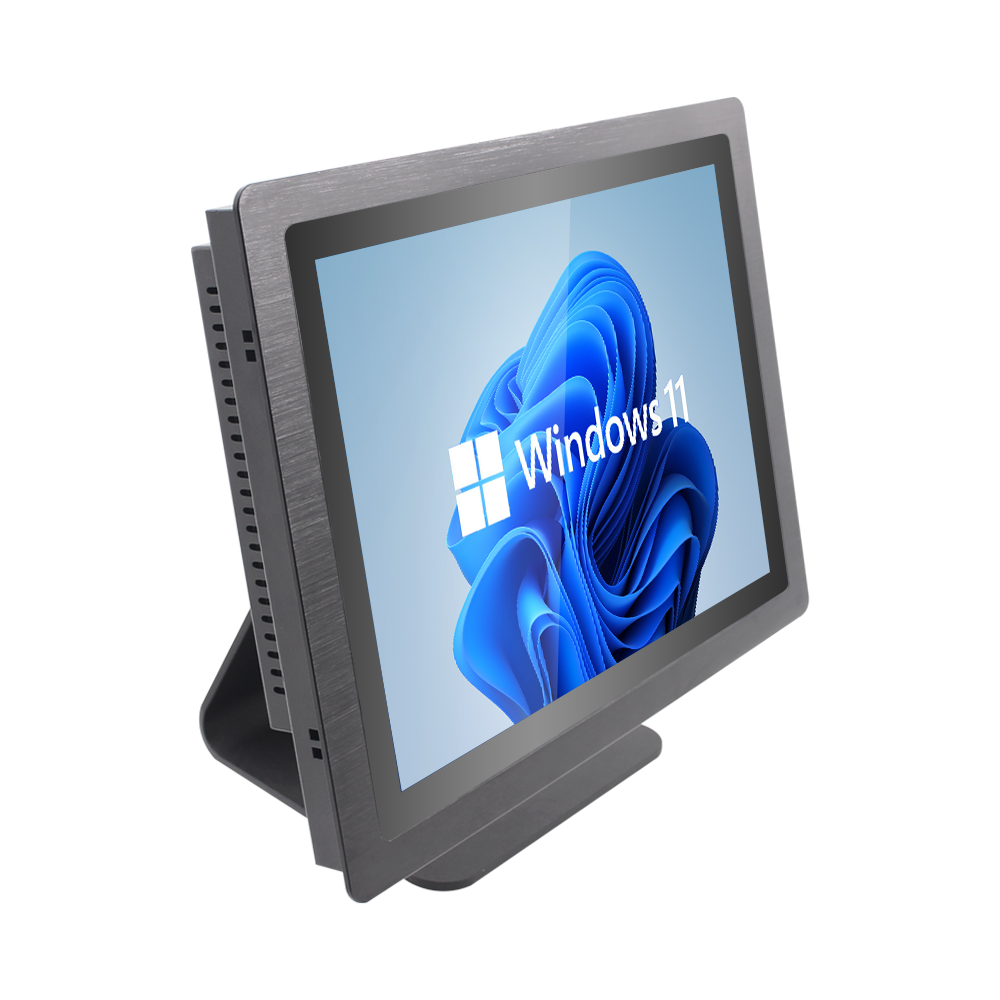

| Screen Size & Ratio | 15.0-inch Industrial Grade TFT LCD / 4:3 Aspect Ratio |
| Native Resolution | 1024 × 768 XGA (Optional 1024 × 768 High-Contrast Industrial Grade Panel) |
| Luminance (Brightness) | 350 nits standard (Optional 1000 nits high-brightness optical bonding for glare-free readability) |
| Touch Screen Type | Projected Capacitive (PCAP) Multi-Touch Screen (Resistive Touch optional for heavy glove environments) |
| Chassis & External I/O Interfaces | |
| Construction Material | Precision CNC-machined Aluminum Alloy front bezel + Rugged Cold-Rolled Steel rear enclosure |
| Front Panel Protection | IP65 dust-tight and splash-waterproof front bezel seal when panel-mounted |

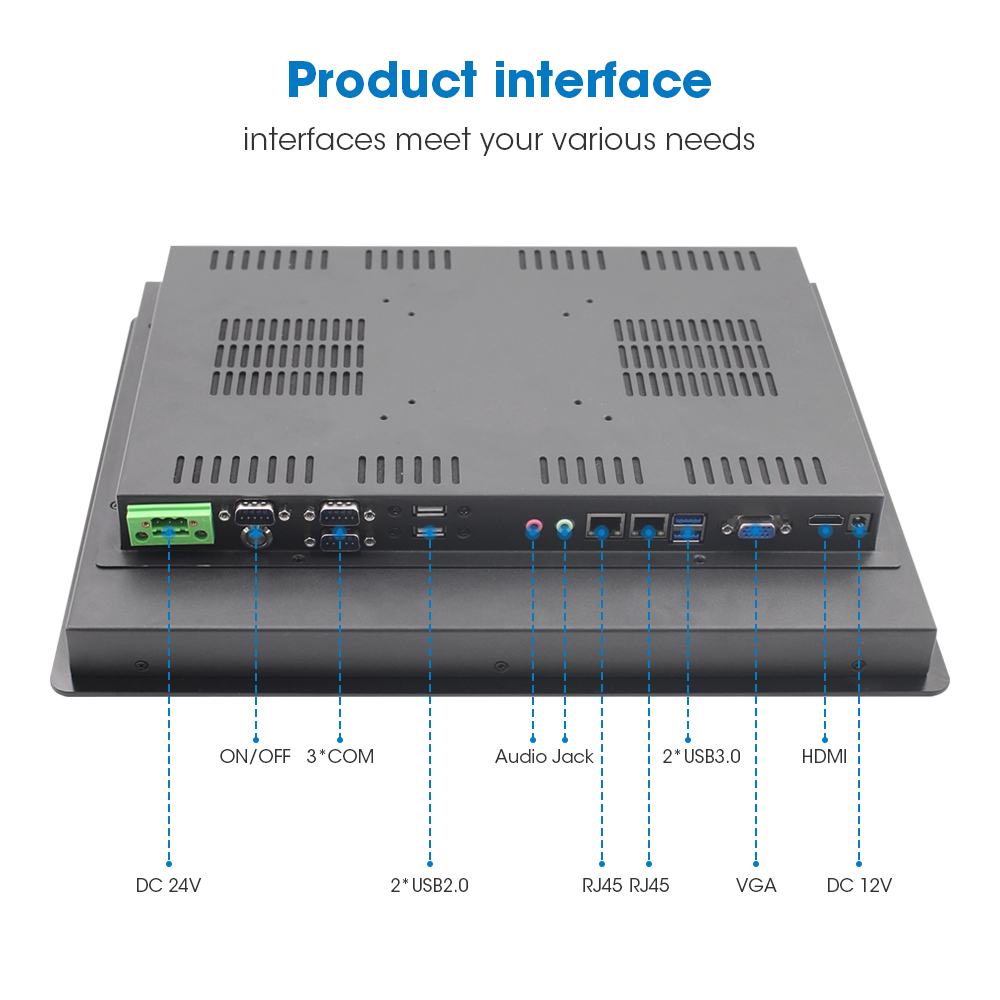

| Network & COM Ports |
• 2x RJ45 Gigabit Ethernet (Intel Realtek RTL8111 GbE controllers) • 3x RS232 COM Serial Ports (DB9 male; RS485/RS422 configurable on COM1/COM2) |
| USB & Display Outputs |
• 2x USB 3.0 Type-A + 2x USB 2.0 Type-A • 1x HDMI Port + 1x VGA Port (Supports independent synchronous/asynchronous dual displays) |
| Audio & Switches | 1x 3.5mm Audio Output + 1x 3.5mm Mic-in, 1x Power Push Button |
| Power, Cooling & Environmental | |
| Power Supply Options |
• 1x 3-Pin Industrial Phoenix Terminal (DC 24V Input) • 1x Standard 2.5mm DC Power Jack (DC 12V Input, AC 100–240V adapter included) |
| Thermal Architecture | Active Smart Fan Cooling with targeted rear and side ventilation louvers for high-load durability |
| Operating Temperature | -10°C to 60°C (Extended wide temp customization available) |

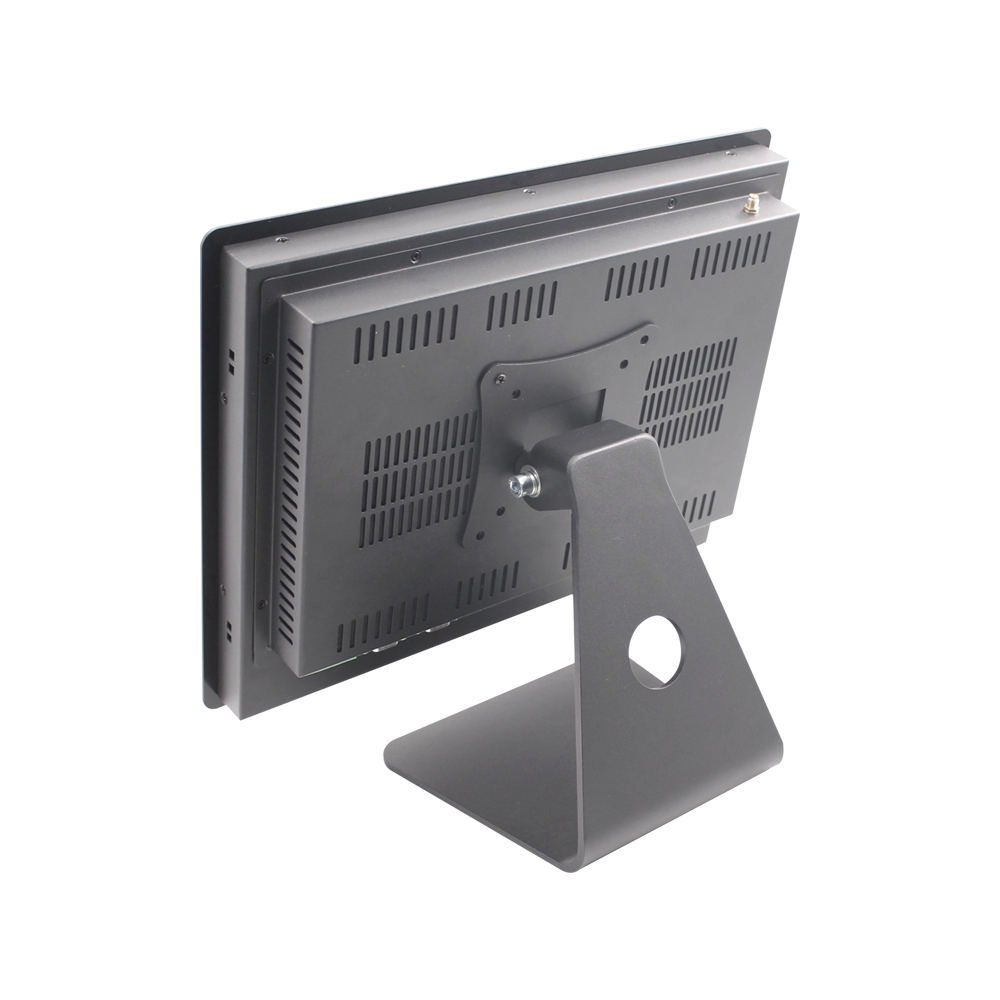

| Mounting Options | Embedded Panel Mount (clips included), Standard VESA 75 × 75 / 100 × 100 mm, Desktop Stand supported |
| Certifications | CE, FCC, RoHS, ISO9001 |
