| Item | Specifications |
| LCD Panel Characteristics | |
| Screen Size | 12.1″,15.6″, 18.5″, 21.5″ (7″ to 55″ available upon request) |
| Resolution | 1920 × 1080 Full HD (Optional 4K available) |
| Aspect Ratio | 16:9 |
| Brightness | 1000–1500 cd/m² (Sunlight Readable) |
| Viewing Angle | 80°/80° (H), 80°/80° (V) / Full Viewing Angle Optional |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | ≥ 50,000 Hours |
| Touchscreen Characteristics (Optional) | |
| Touch Type | Projected Capacitive (PCAP) / 5-Wire Resistive / Infrared (IR) / Non-Touch |
| Surface Hardness | ≥ 7H (PCAP) / ≥ 3H (Resistive) |
| Touch Durability | ≥ 50 Million Touches (PCAP) / ≥ 35 Million Touches (Resistive) |
| Light Transmission | ≥ 88% (Resistive) / ≥ 90% (PCAP) |
| I/O & Power Interface | |
| Video Inputs | 1 × HDMI, 1 × VGA (Optional: DVI, DisplayPort) |
| Touch Interface | 1 × USB (Type-B / Type-A) or RS232 COM for touch controller |
| Audio | 1 × 3.5mm Audio In/Out (Built-in Speakers Optional) |
| Power Input | Standard DC 12V / Optional DC 9–36V Wide Voltage Input |
| Mechanical & Environmental | |
| Enclosure Material | Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal |
| Surface Finish | Sandblasted Anodized / Powder Coated / CNC Brushed |
| Housing Color | Default Black / Silver / Custom RAL Colors |
| IP Protection | Front Panel IP65 (Full Enclosure IP65/IP67/IP69K Optional) |
| Mounting Options | VESA 75×75 / 100×100 mm, Panel Mount, Open Frame, Desktop Stand |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Certifications | CE, FCC, RoHS Compliant |
High Brightness Monitor

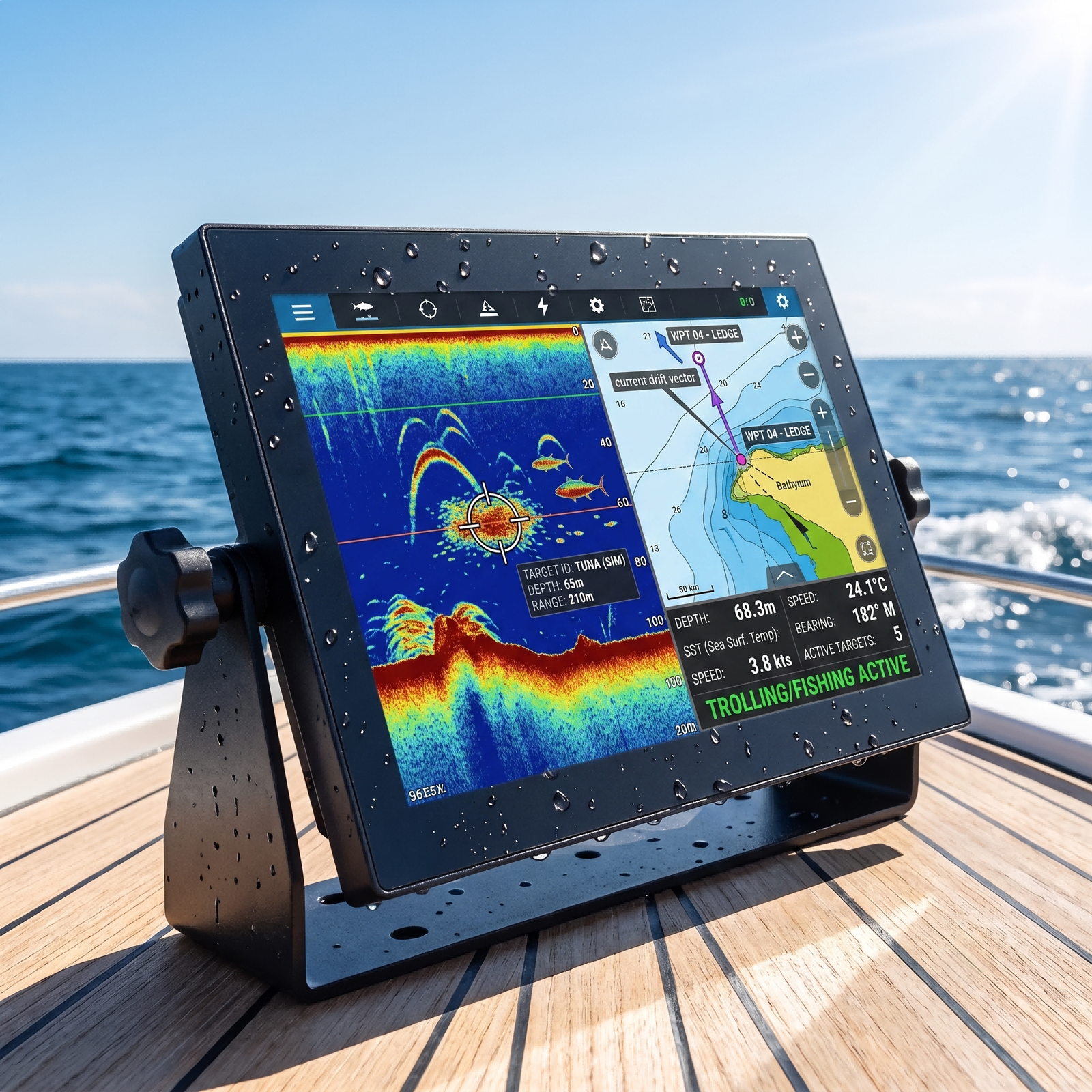

12.1 15.6 18.5 21.5 inch 1500 Nits Sunlight Readable Marine Fishing Touch Monitor
- Ultra-High Brightness: 1000–1500 nits sunlight-readable display ensures crystal-clear visibility in direct open-water sunlight.
- Polarized Film Technology: Fully compatible with polarized sunglasses, eliminating blackouts and glare from any viewing angle.
- Marine-Grade Ingress Protection: IP65/IP67 waterproof front/full enclosure, resistant to saltwater spray, fog, and corrosion.
- Multi-Touch Interface: High-precision projected capacitive (PCAP) touchscreen supporting wet-hand and gloved operation.
- Marine Applications: Ideal for fishing boats, marine navigation systems, yachts, and harsh outdoor maritime environments.
- Sunlight-Readable Display: Clear screen content even under direct noon sunlight due to 1500cd/㎡ high brightness and anti-glare AG+UV dual-layer tempered glass panel。
- Rugged Design: IP65 waterproof and dustproof, full-aluminum body with CNC precision machining, resistant to corrosion and rust.
- Wide Operating Range: Ultra-wide operating temperature range of -20℃~80℃, suitable for high-temperature and low-temperature scenarios.
- Easy Installation: Integrated stable bracket design for quick installation, knob-type flexible angle adjustment for optimal viewing.
- UV protection coating,Prevents UV aging, greatly extending the screen’s lifespan and reliability in outdoor or strong light environments.
- Optical-bonded,Prevent condensation and fogging and increase transmittance
- Full IP66 waterproof
- Aluminum bezel with CNC craft+ rear metal case / Full Aluminum
