Heavy-Duty Protection for Extreme Hygiene & Washdown Automation
In demanding sectors like meat and poultry processing, outdoor marine control, pharmaceutical synthesis, and heavy manufacturing, computing equipment faces non-stop threats from corrosive detergents, liquid siphoning, severe thermal shocks, and continuous vibration. The INNODA 18.5″ Full IP67 Stainless Steel Industrial Panel PC delivers total structural integrity with an all-around SUS304 hermetic seal, industrial-grade vibration dampening, and reliable wide-temperature electronic components.
Comprehensive Hardware Specifications
| System & Computing Core | |
| Processor (CPU) |
• Intel® Celeron® J1900 (Quad-Core, 2.0 GHz up to 2.42 GHz) • Intel® Celeron® J6412 (Elkhart Lake, Quad-Core up to 2.6 GHz, Low TDP) • Intel® Core™ i3/i5/i7 (8th/10th/11th Gen) U-Series for High-Demand MES, SCADA & AI Edge Tasks |
| System Memory (RAM) | DDR3L / DDR4 SO-DIMM, 4GB / 8GB / 16GB / 32GB Industrial Grade Memory |
| Storage Options (SSD) |
• 1x High-Reliability mSATA SSD / M.2 NVMe SSD (64GB / 128GB / 256GB / 512GB / 1TB) • Internal anti-vibration 2.5″ SATA SSD/HDD bay supported |
| Operating Systems (OS) | Windows 10 IoT Enterprise, Windows 11 Pro, Linux (Ubuntu, Debian, Red Hat) |
| Display & Optical Specifications | |
| Display Size & Aspect Ratio | 18.5-inch Industrial Grade A+ TFT LCD / 16:9 Widescreen |
| Native Resolution | Full HD 1920 × 1080 (Optional 1366 × 768) |
| Luminance (Brightness) | 350 nits standard (Optional 1000–1500 nits high-brightness sunlight readable with optical bonding) |
| Touch Screen Technology | True-Flat Projected Capacitive (PCAP) Multi-Touch, 7H tempered surface glass; supports wet hands, chemical wipe-down, and industrial glove operation |
| Enclosure & Waterproof Connectivity | |

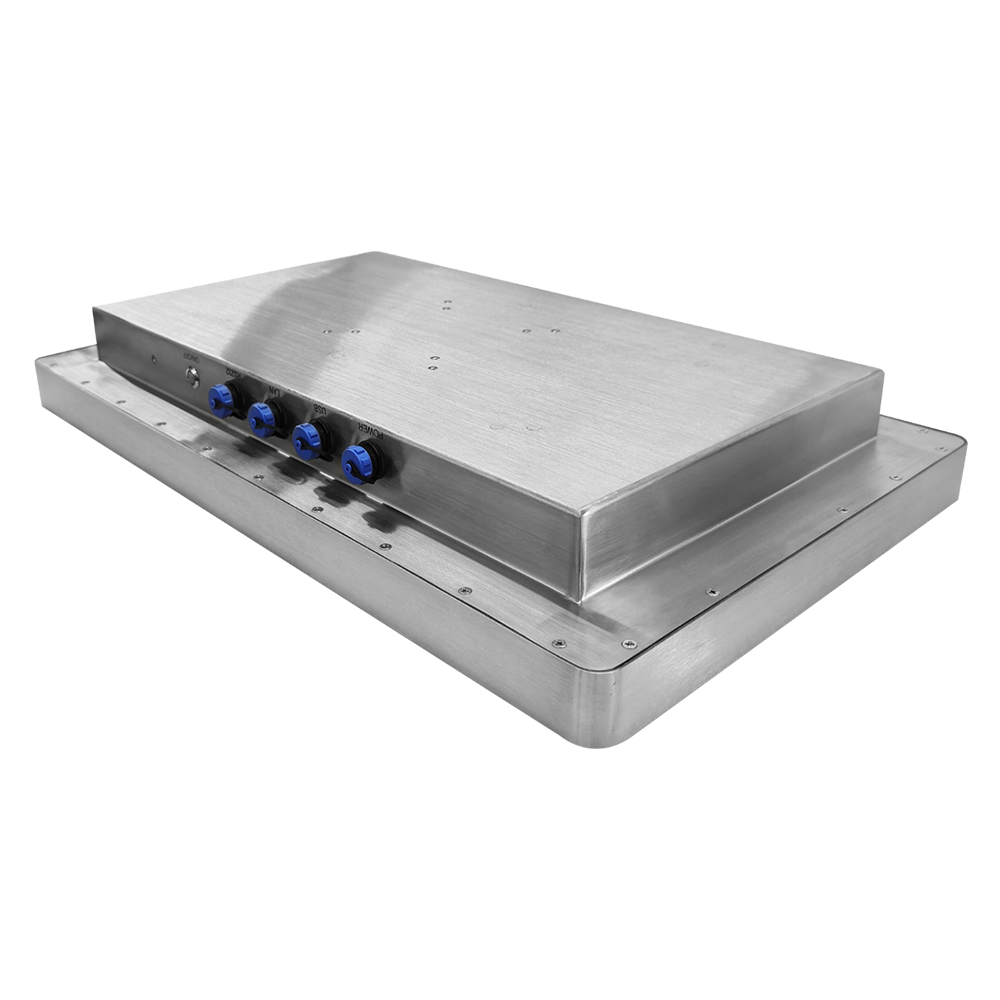

| Chassis Material | Grade 304 Stainless Steel (Optional SUS316L for salt-spray, offshore, and corrosive chemical environments) |
| Protection Rating | Full IP67 Ingress Protection (Complete 360-degree all-around dust & immersion seal) |

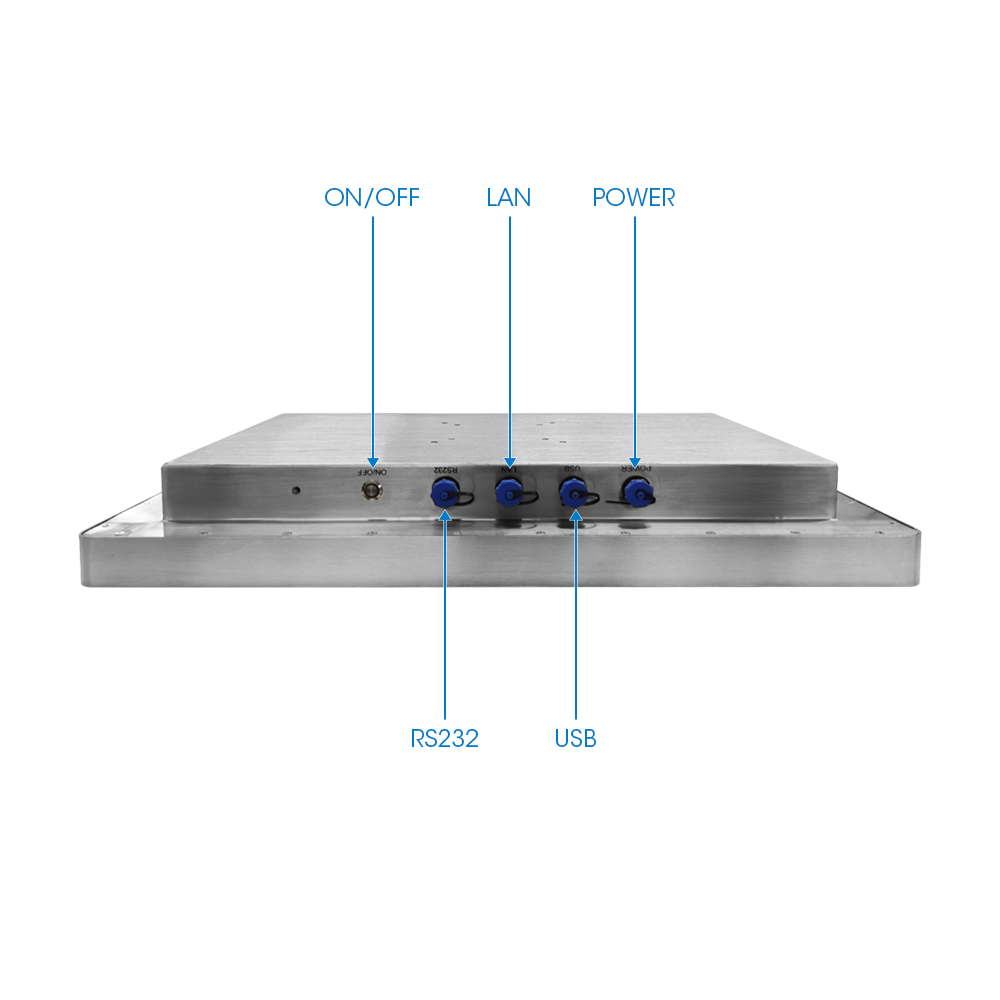

| Sealed I/O Interfaces |
• 1x Sealed Waterproof Aviation DC Power Input (Locking Thread) • 2x Sealed Waterproof Aviation USB 2.0 / USB 3.0 Ports • 1x Sealed Waterproof Aviation RJ45 Gigabit Ethernet (LAN) • 1x Sealed Waterproof Aviation RS232 / RS485 COM Port • 1x Waterproof Stainless Steel On/Off Power Switch with LED indicator |
| Electrical & Environmental Parameters | |
| Power Input Range | Wide Voltage DC 9V–36V with over-voltage, over-current, and reverse surge protection (AC 100–240V adapter included) |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) Certified Wide Temperature Range |
| Cooling Architecture | True Fanless Passive Heat Dissipation (Zero moving parts, completely silent, dust-free interior) |
| Shock & Vibration | Complies with IEC 60068-2-27 (Shock: 20G peak acceleration) and IEC 60068-2-6 (Vibration: 2Grms, 5-500Hz) |
| Mounting Configurations | Rear standard VESA 75 × 75 mm / 100 × 100 mm, Swing Arm Mount, Panel Mount Brackets optional |
| Certifications | CE, FCC, RoHS, ISO9001 |
