| Item | Specifications |
| LCD Panel Characteristics | |
| Screen Size | 21.5″ (7″ to 55″ available upon request) |
| Resolution | 1920 × 1080 Full HD |
| Aspect Ratio | 16:9 |
| Brightness | 1000–1500 cd/m² (Sunlight Readable) |
| Viewing Angle | 80°/80° (H), 80°/80° (V) / Full Viewing Angle Optional |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | ≥ 50,000 Hours |
| Touchscreen Characteristics (Optional) | |
| Touch Type | Projected Capacitive (PCAP) / 5-Wire Resistive / Infrared (IR) / Non-Touch |
| Surface Hardness | ≥ 7H (PCAP) / ≥ 3H (Resistive) |
| Touch Durability | ≥ 50 Million Touches (PCAP) / ≥ 35 Million Touches (Resistive) |
| Light Transmission | ≥ 88% (Resistive) / ≥ 90% (PCAP) |
| I/O & Power Interface | |
| Video Inputs | 1 × HDMI, 1 × VGA (Optional: DVI, DisplayPort) |
| Touch Interface | 1 × USB (Type-B / Type-A) or RS232 COM for touch controller |
| Audio | 1 × 3.5mm Audio In/Out (Built-in Speakers Optional) |
| Power Input | Standard DC 12V / Optional DC 9–36V Wide Voltage Input |
| Mechanical & Environmental | |
| Enclosure Material | Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal |
| Surface Finish | Sandblasted Anodized / Powder Coated / CNC Brushed |
| Housing Color | Default Black / Silver / Custom RAL Colors |
| IP Protection | Front Panel IP65 (Full Enclosure IP65/IP67/IP69K Optional) |
| Mounting Options | VESA 75×75 / 100×100 mm, Panel Mount, Open Frame, Desktop Stand |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Certifications | CE, FCC, RoHS Compliant |
Embedded Monitor, High Brightness Monitor, Touch Screen Monitor

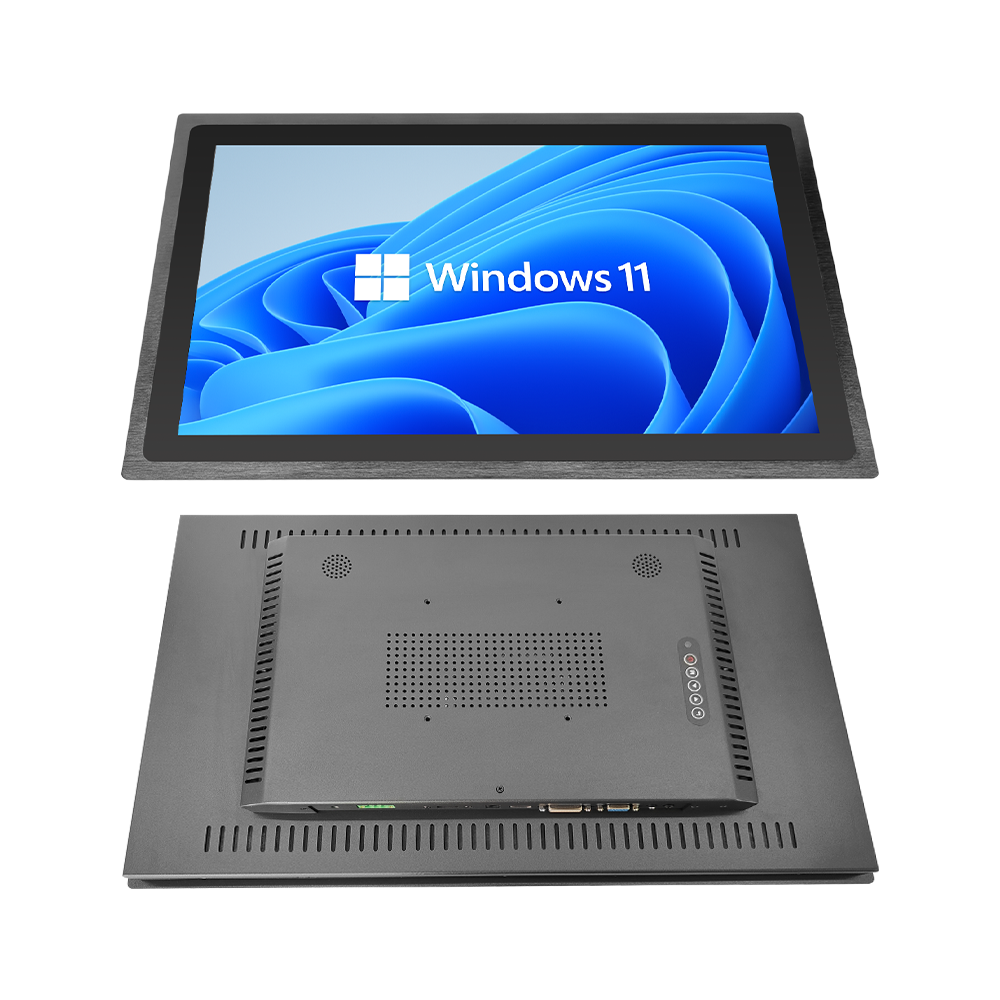

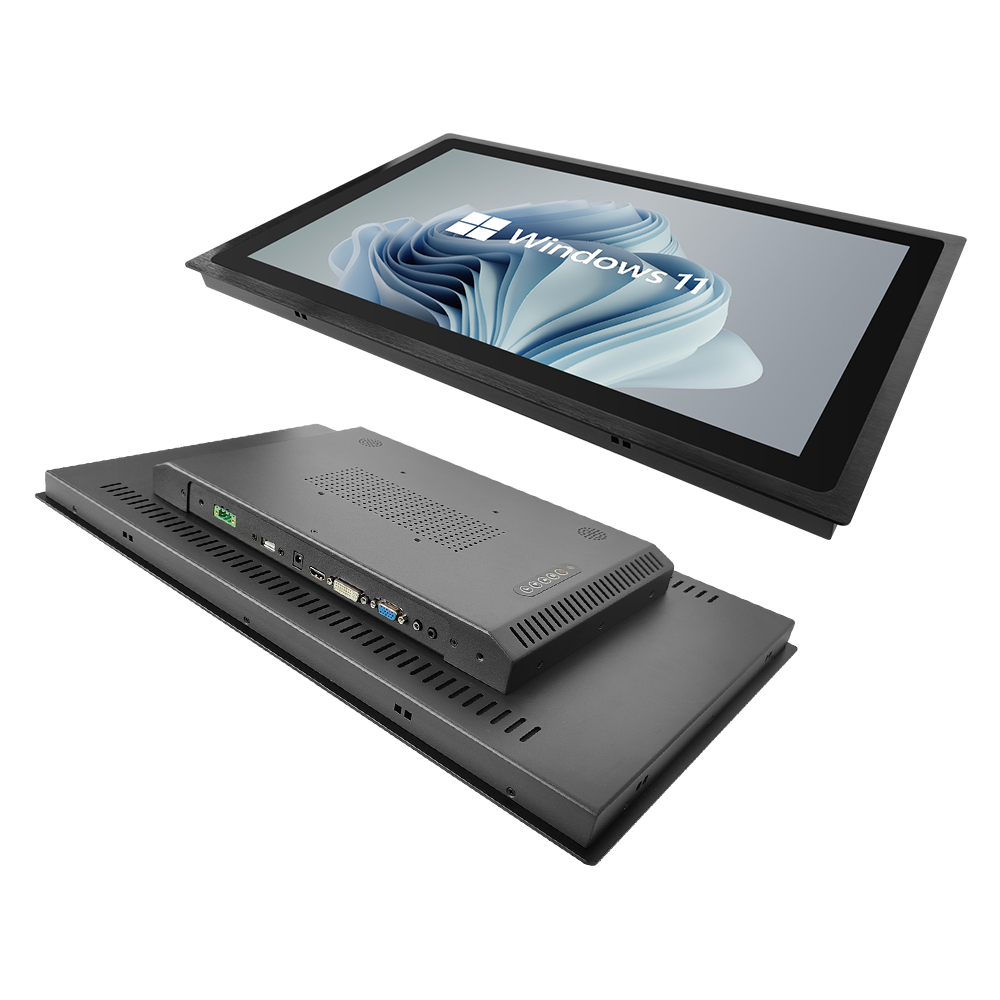

21.5″ CNC Aluminum Panel Mount Touch Industrial Monitor
-

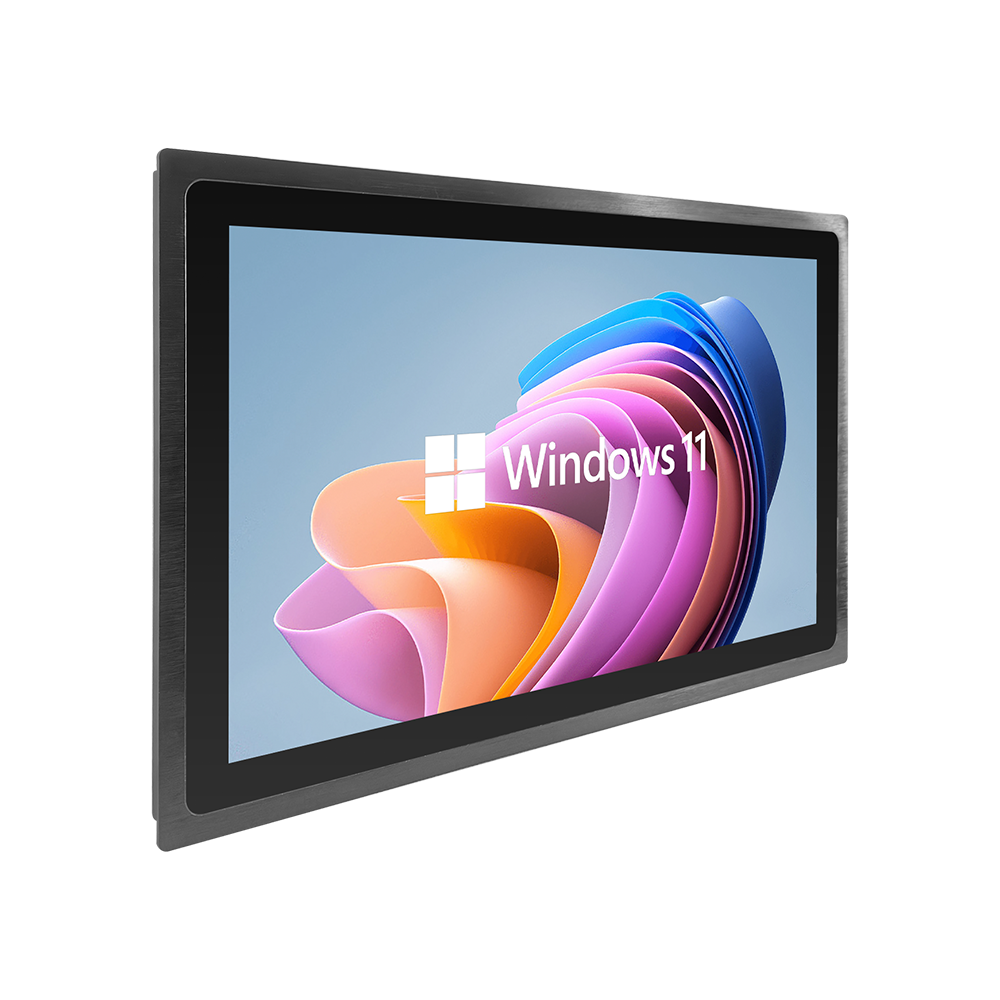

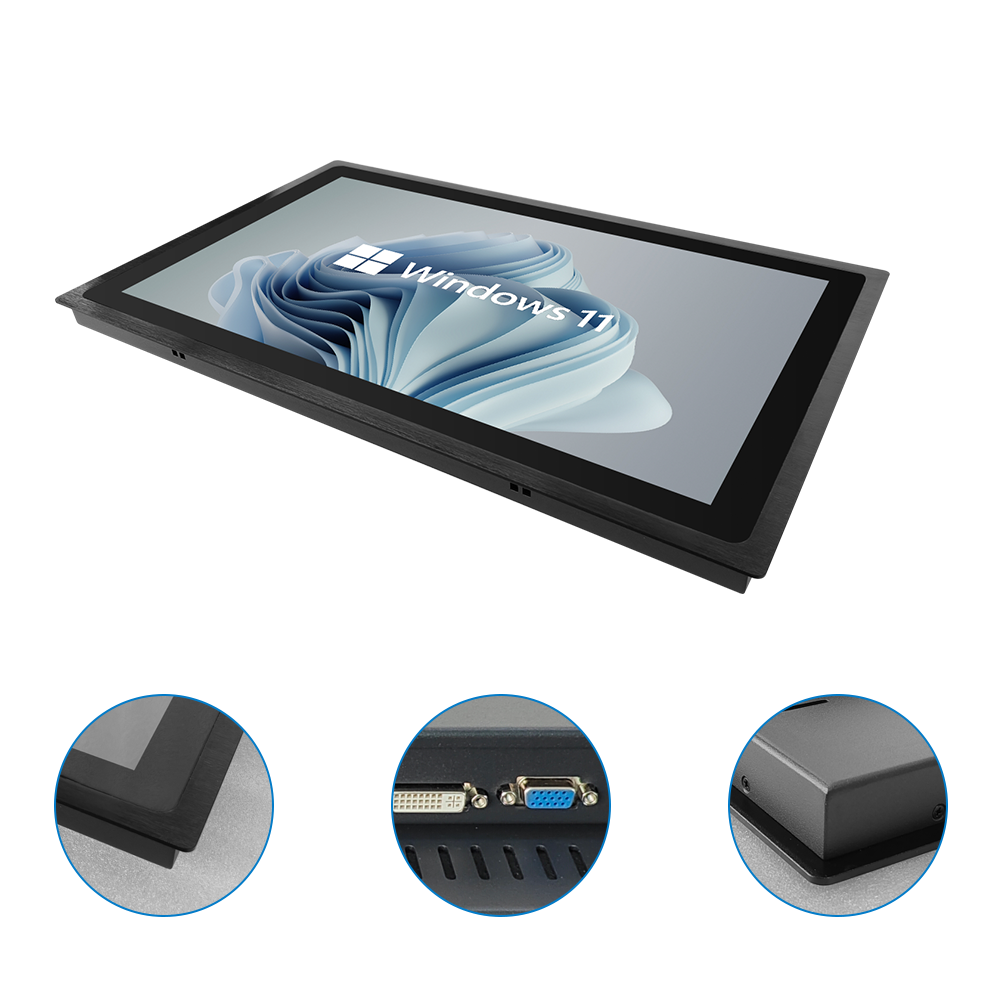

CNC Brushed Aluminum Bezel: Sleek, precision-machined CNC aluminum front bezel combined with a rugged steel chassis, offering true IP65 front-panel waterproof and dustproof protection.
-

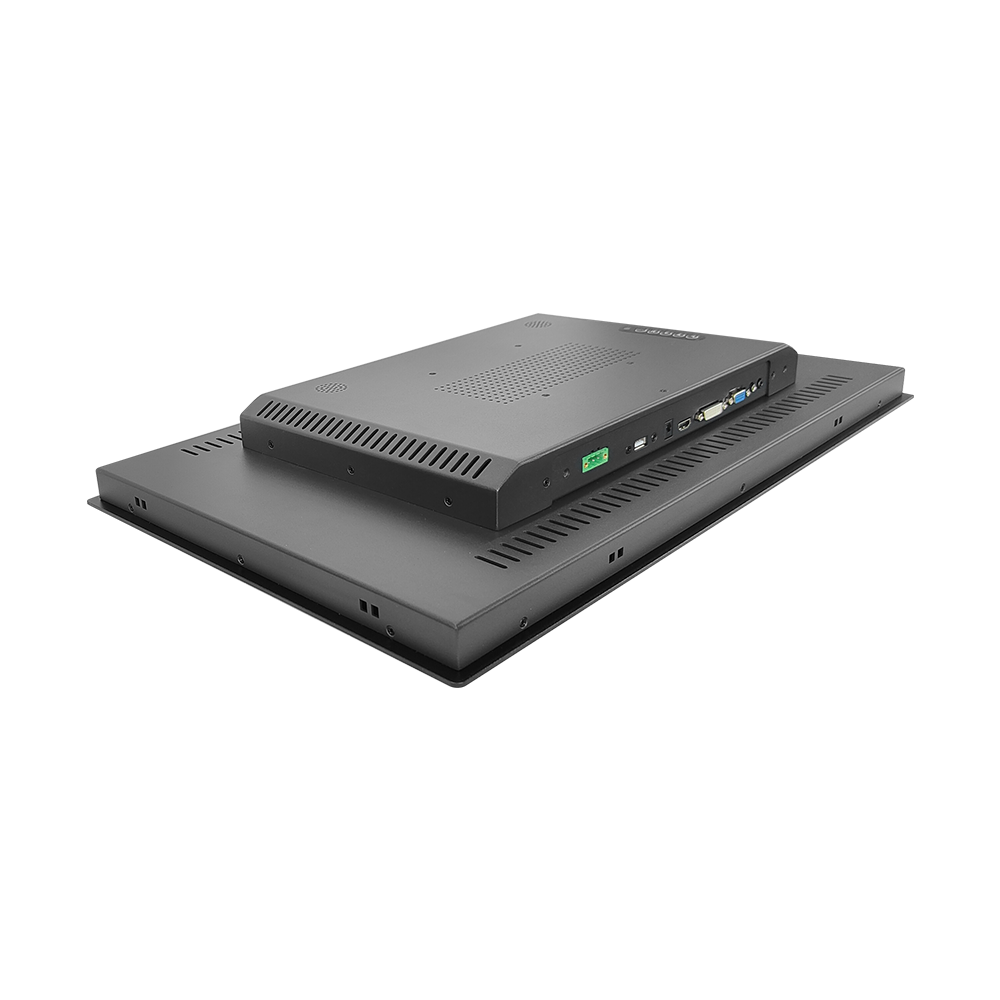

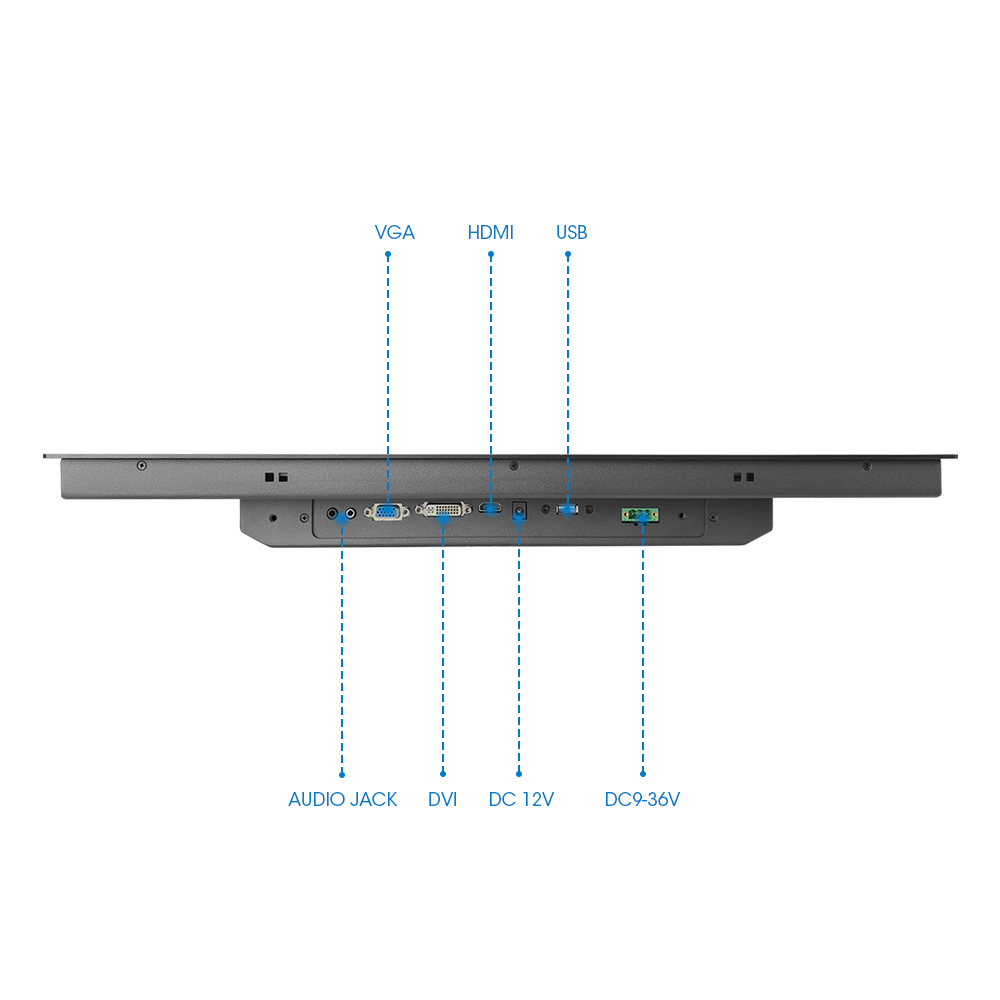

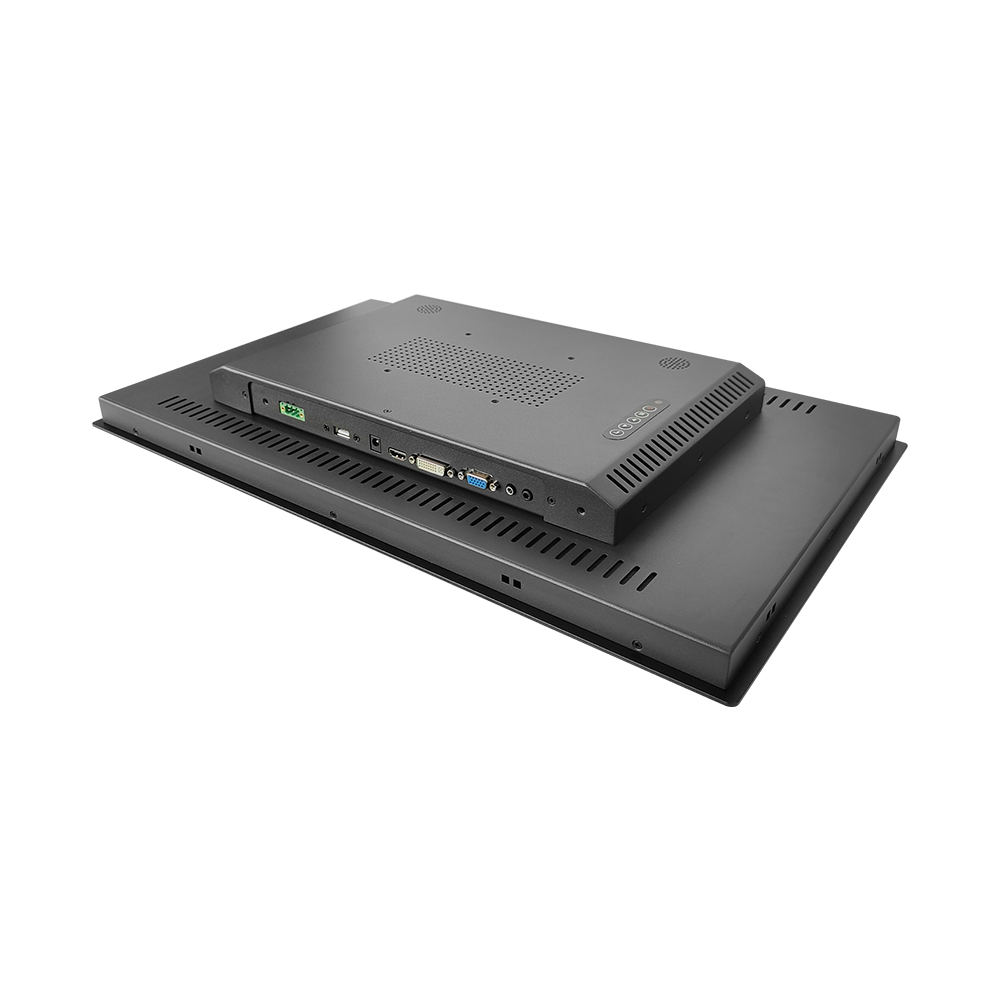

Rear OSD & Multi-Signal I/O: Rear-mounted tactile OSD buttons prevent accidental user tampering; equipped with HDMI, DVI, VGA, USB touch, and Audio line-out.
-
Flexible 9–36V Wide DC Input: Supports industrial Phoenix terminal DC 9–36V wide-voltage power input alongside standard DC 12V jack for versatile factory floor integration.
-
Full HD Capacitive Multi-Touch: 21.5″ 1080P widescreen display featuring high-sensitivity projected capacitive (PCAP) multi-touch for smooth and precise operation.
-
Target Applications: Engineered for commercial printing & flexo press consoles, surface-mount technology (SMT) lines, plastic injection molding machinery, automated smart parking garages, and textile dyeing machine controls.
