The INNODA Polarized-Readable Marine Touch Monitor series is engineered specifically to eliminate the most frustrating optical challenge faced by boat captains and tournament anglers: screen blackout when wearing polarized sunglasses. Available across four unified helm sizes—12.1-inch, 15.8-inch, 18.5-inch, and 21.5-inch—this display family provides marine electronics installers, boat manufacturers, and tournament rigging specialists with an open-architecture, grade visual hub for high-definition chartplotting and live CHIRP sonars.
During competitive angling or precision offshore navigation, captains cannot afford to tilt their heads or take off protective sunglasses to inspect underwater contours, weed lines, or baitfish schools. Standard consumer screens emit linearly polarized light that clashes with polarized sunglass lenses, resulting in total screen blackout or distorted purple rainbow patches. By integrating precision Quarter-Wave Optical Retardation Films alongside 1500-nit backlights and vacuum optical bonding, INNODA displays deliver flawless 360-degree visibility in full sunlight.
Key Architectural & Engineering Highlights
- Unified Four-Size Marine Architecture:
- 12.1″ Display: Compact form factor designed for flats skiff consoles, bow deck casting platforms, and compact bass boat pods.
- 15.8″ Display: The industry sweet spot for high-speed dual-screen helm layouts, dedicating one monitor to full-scale mapping and the second to live-sonar targeting.
- 18.5″ Display: Widescreen canvas optimized for tri-split or quad-split screens (Bathymetric Chart, DownScan, SideScan, and Radar).
- 21.5″ Display: Flagship bridge monitor engineered for luxury sportfishing yachts, tournament catamarans, and commercial guide boats.

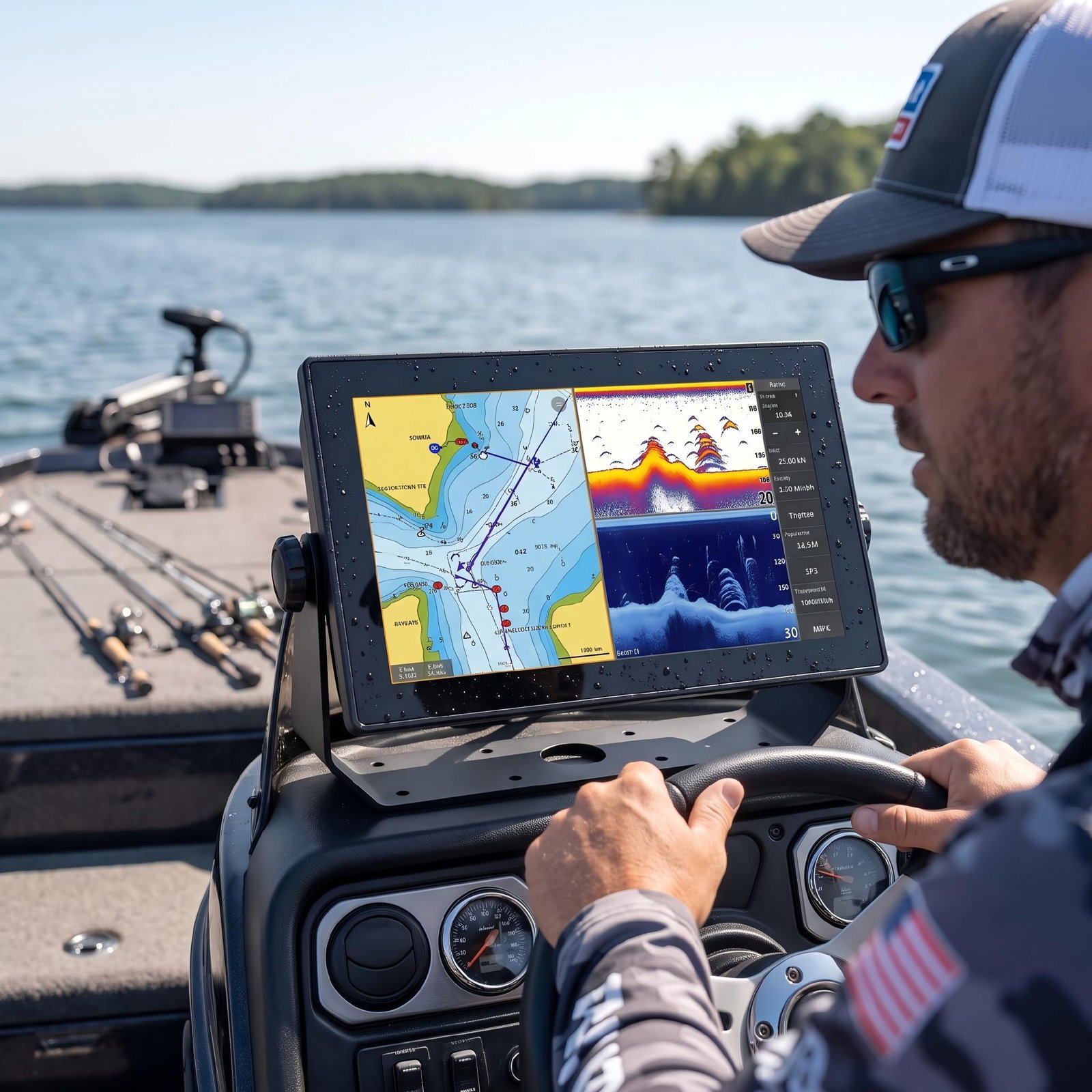

- True Polarized Sunglasses Visibility (Quarter-Wave Retardation): Features an integrated optical film that converts linearly polarized LCD light into circularly polarized light. Anglers wearing polarized Oakley, Costa, or Maui Jim eyewear enjoy crisp contrast, saturated colors, and zero dark zones whether standing, sitting, or viewing from side co-pilot angles.
- High-Definition Bathymetric & Structure Mapping: High-contrast IPS glass renders subtle contour depth gradients and micro-structure lines cleanly, allowing captains to identify underwater drop-offs and submerged timber with precision.
- Vacuum Optical Silicone Bonding (Zero Internal Fog): Eliminates the reflective internal air gap between the 7H cover glass and the LCD fluid. This prevents internal moisture condensation during rapid morning temperature spikes and cuts external solar glare by over 80%.
- Saltwater-Immune Marine PCAP Touch: Custom controller firmware isolates conductive water droplets, standing spray pools, and wet tournament gloves, ensuring machine control buttons and waypoint taps register accurately without false “ghost” inputs.
- Universal Marine Black-Box Interoperability: Equipped with standard HDMI 2.0, DVI-D, DisplayPort, VGA, and AHD camera BNC inputs. Interfaces seamlessly with black-box chartplotters from Garmin (GPSMAP), Lowrance, Simrad (NSO), Furuno (NavNet TZtouch), and commercial PC platforms running TimeZero (TZ Pro).
- High-G Hull Shock Resistance: The solid aluminum-magnesium chassis and reinforced heavy-gauge U-bracket absorb violent pounding from 60+ MPH boat speeds and offshore wave chop without shifting screen tilt.
Product Matrix by Helm Layout & Application
| Screen Dimension | Resolution & Ratio | Luminance & Polarized Bond | Optimal Vessel Helm Location |
|---|---|---|---|
| 12.1-Inch | 1280 × 800 (16:10) | 1000–1500 nits (Circular Polarizer Bond) | Bass boat console dash, bow foot-pedal casting station |
| 15.8-Inch | 1920 × 1080 Full HD (16:9) | 1500 nits (Circular Polarizer Bond) | Dual-dash tournament rigging, center-console helm stations |
| 18.5-Inch | 1920 × 1080 Full HD (16:9) | 1500 nits (Circular Polarizer Bond) | Multi-source sonar split-screens, offshore tournament boats |
| 21.5-Inch | 1920 × 1080 Full HD (16:9) | 1500 nits (Circular Polarizer Bond) | Flagship glass helms, luxury fishing yachts, bridge stations |
Comprehensive Technical Specifications
| Technical Parameter | Detailed Specification |
|---|---|
| Panel Technology | Industrial IPS TFT LCD with 89°/89°/89°/89° Symmetrical Viewing Angles |
| Peak Luminance & Dimming | 1500 nits sunlight readable; 0% to 100% stepless PWM dimming for pitch-black night running |
| Polarization & Optical Bond | Circular Polarizer (Quarter-Wave Film) + Full Vacuum Optical Adhesive (OCA/LOCA) |
| Glass Surface Protection | 7H Hardness Chemically Toughened Glass with Anti-Reflective (AR) and Oleophobic Coating |
| Touchscreen Interface | 10-Point Marine PCAP Multi-Touch with Saltwater-Rejection and Glove Recognition |
| Video / Signal Inputs | 1 × HDMI 2.0, 1 × DVI-D, 1 × DisplayPort, 1 × VGA, 2 × BNC AHD/Composite, 1 × Touch USB |
| Ingress Protection | Full IP67 Front Face Washdown Waterproof; IP65 Sealed Rear Chassis |
| Power Input Architecture | Isolated DC 9V–36V Input with TVS Surge Suppression and Trolling Motor Noise Filtering |
| Environmental Standards | Operating: -20°C to 70°C (-4°F to 158°F); Certified for ASTM B117 Salt Spray and IEC 60068-2 Shock |

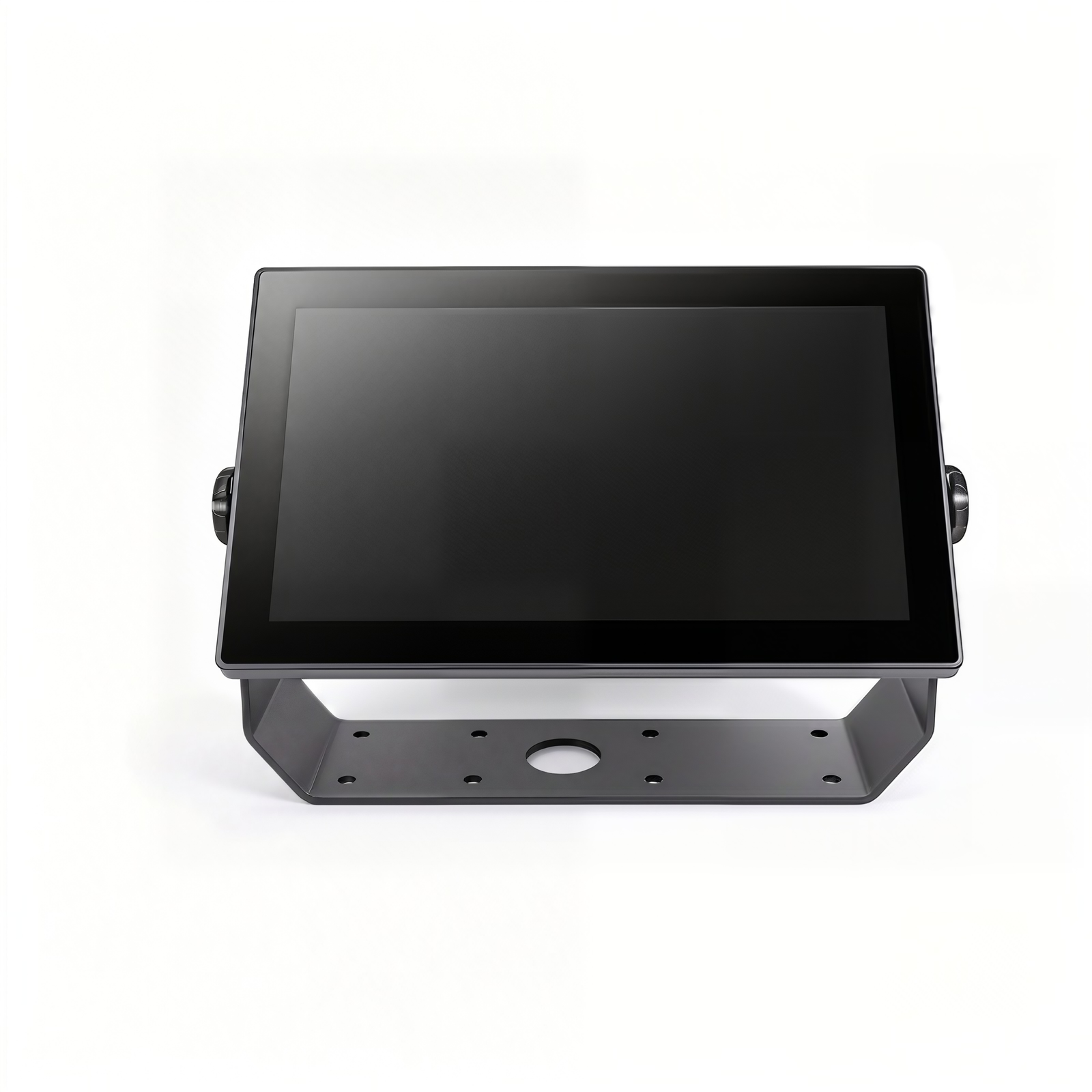

| Mounting Systems | Heavy-Duty Anti-Shock Aluminum U-Bracket, Rear VESA 75×75 / 100×100 mm, Flush Panel Mount |
| System Compatibility | Compatible with Garmin, Lowrance, Simrad, Furuno, Raymarine black-boxes, and TimeZero PCs |
B2B Target Segments & Custom Integration
- Tournament Boat Builders & Marine OEMs: Integrate high-performance, non-glare sunlight-readable displays into your standard factory console offerings across all four sizes.
- Marine Electronics Rigging Dealers: Offer competitive anglers a larger, brighter, open-architecture screen alternative to expensive proprietary multifunction displays.
- Commercial Guide & Charter Fleets: Deliver uncompromised fish-targeting and bathymetric mapping visibility under harsh sun without optical blackout.
- Patrol Craft & Workboat Builders: Ensure mission-critical navigation feeds remain legible through tactical ballistic or polarized sunglasses.
Need custom console cutouts, private-label branding, customized harness breakouts, or 3D CAD STEP files? Contact INNODA’s marine display engineering team to review wholesale pricing and sample availability.
