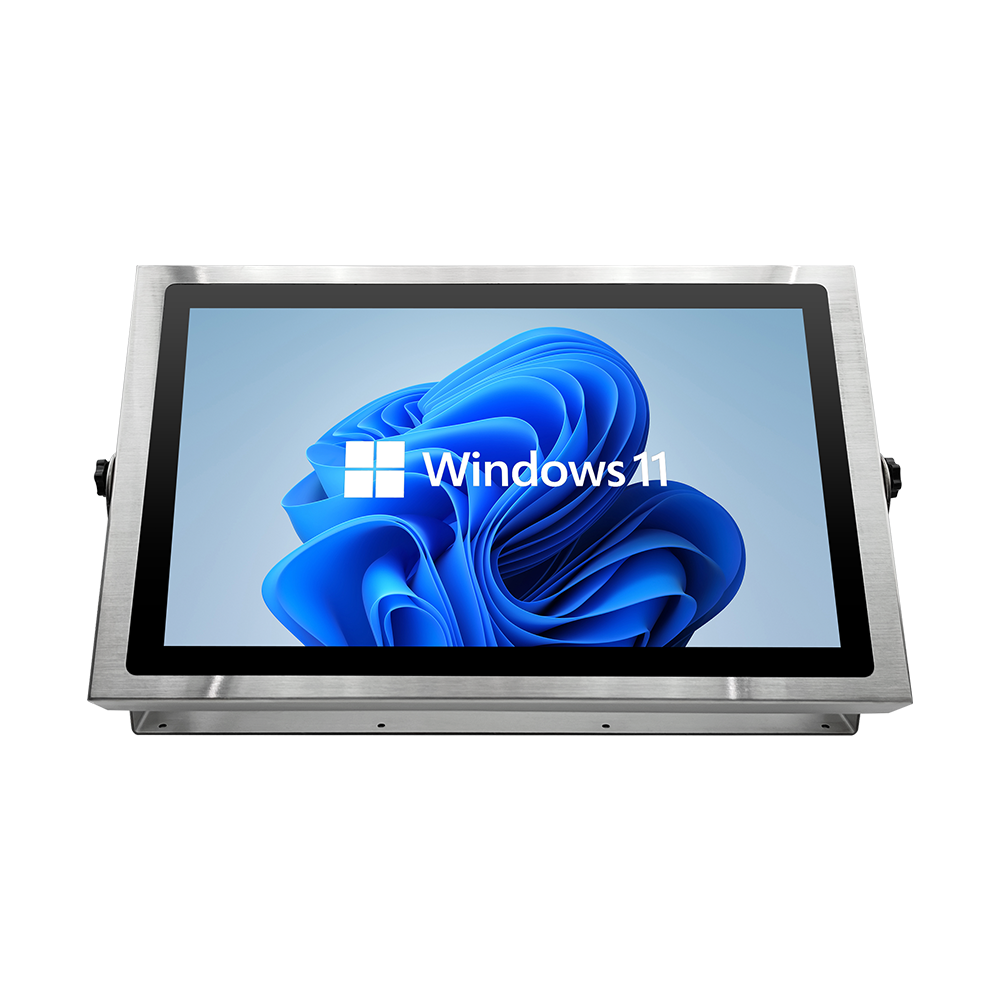

21.5″ Full IP67/IP68 Stainless Steel Touch Panel PC with Yoke Mount

  • Full Stainless Steel Chassis: Fabricated from premium 304/316 grade stainless steel with a completely sealed fanless housing, offering exceptional corrosion resistance.

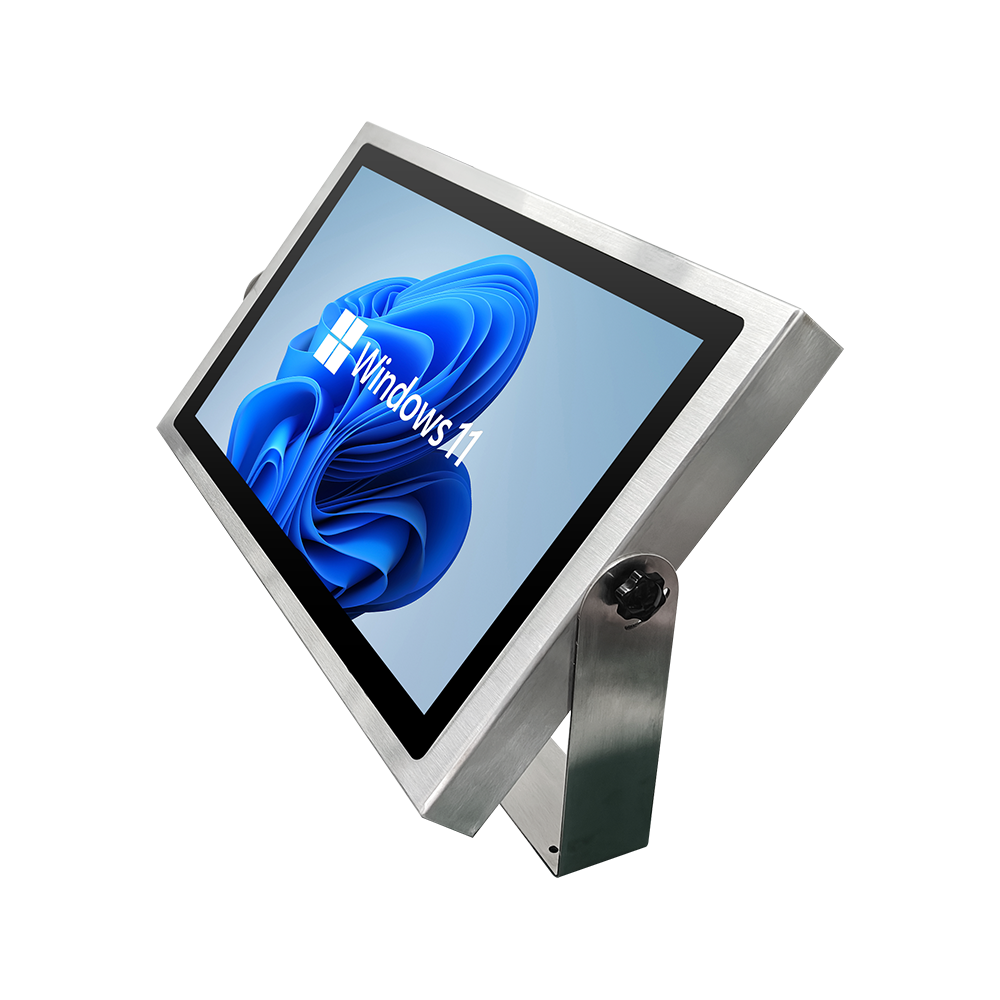

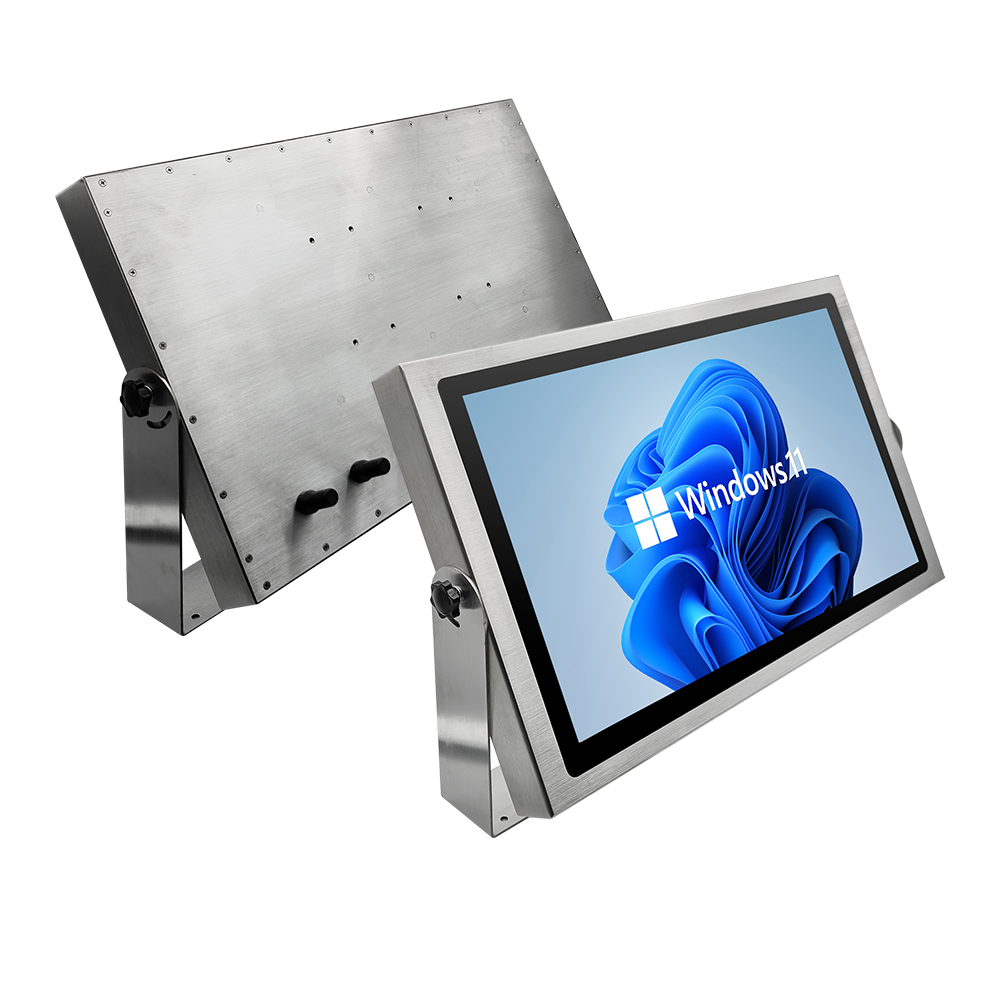

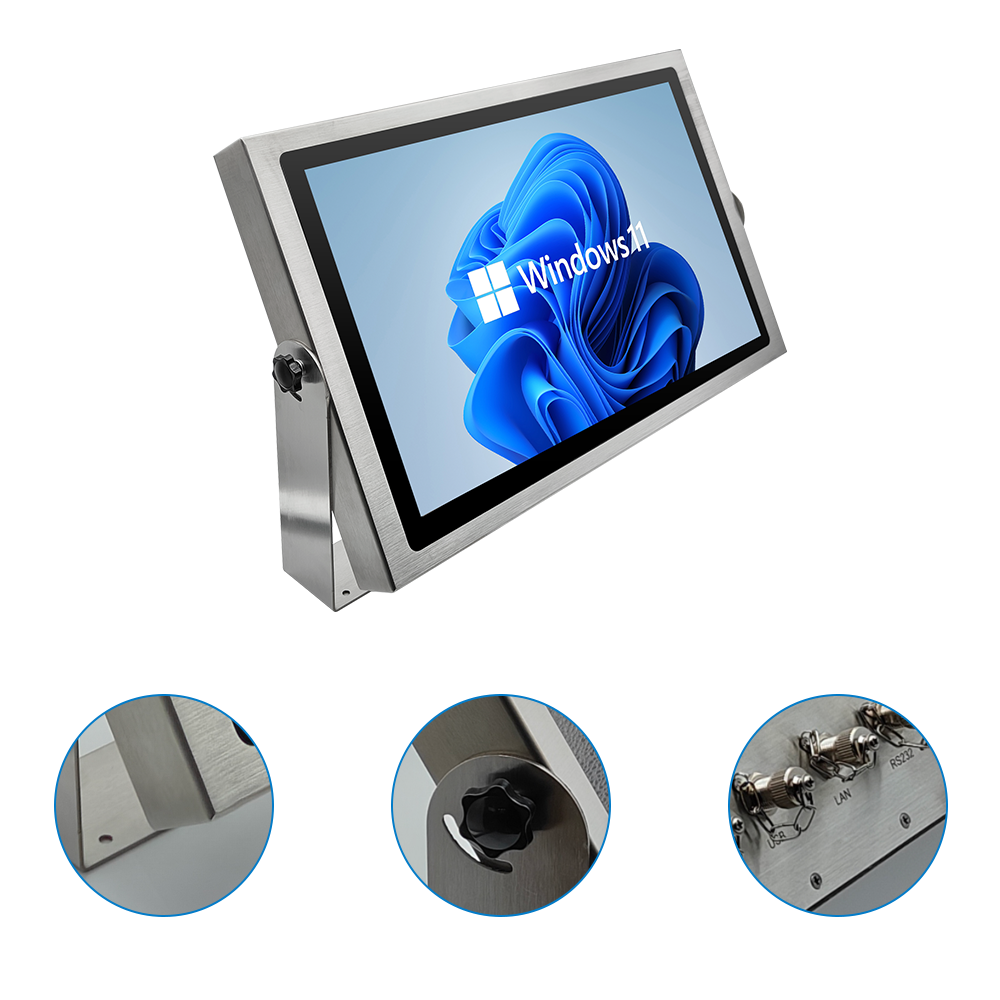

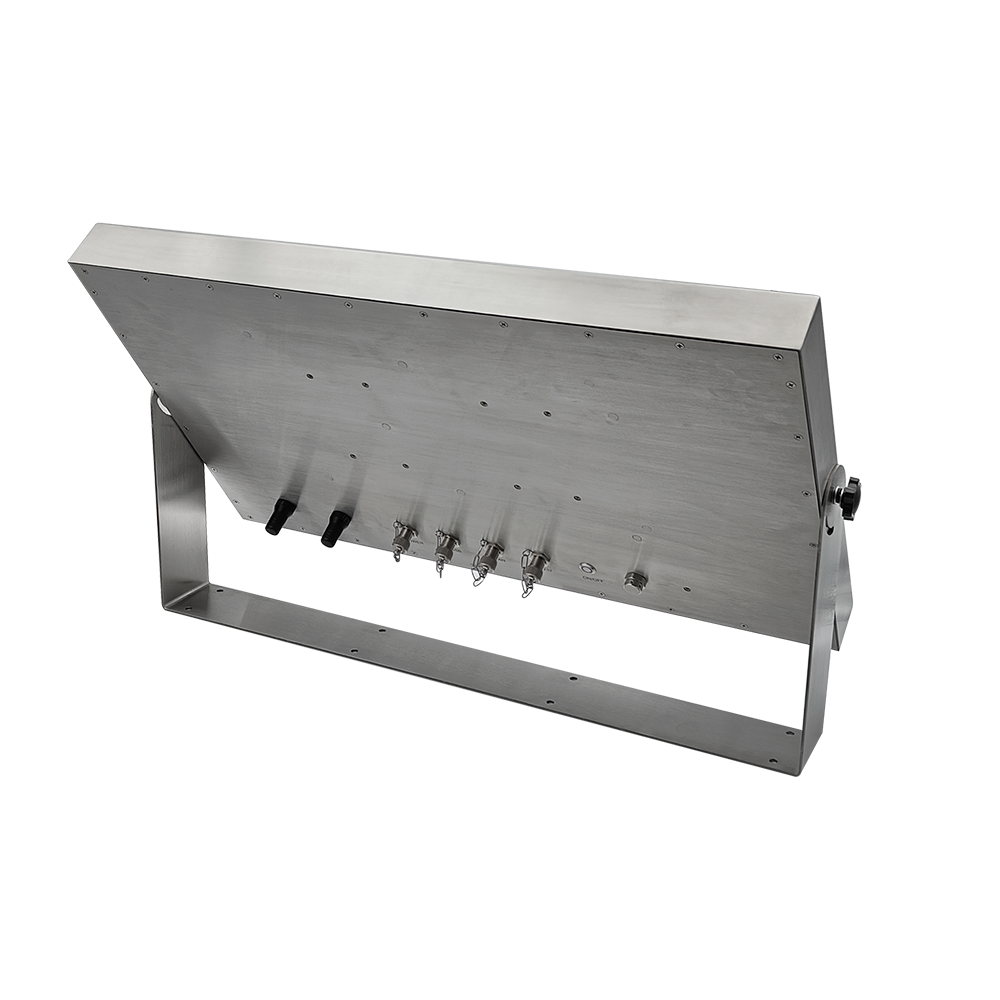

  • Flexible Yoke & Desktop Mounting: Equipped with a heavy-duty stainless steel U-bracket (yoke mount) for flexible desktop tilt adjustment, overhead hanging, or robust wall mounting.

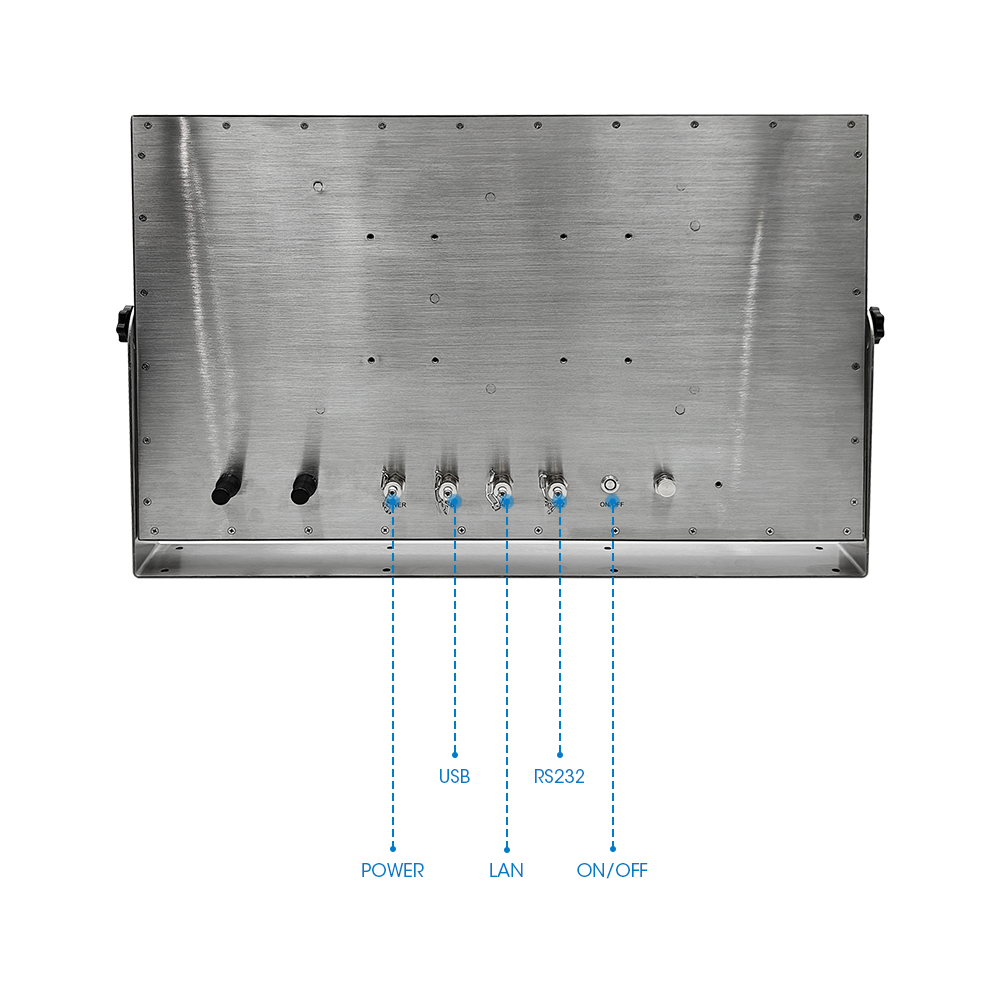

  • Industrial IP67/IP68 Waterproof I/O: Features external metal screw-locking connectors (Power, USB, LAN, RS232) and a waterproof power switch with protective caps.

  • Full HD Capacitive Touch: 21.5″ 1080P widescreen display with high-sensitivity projected capacitive (PCAP) multi-touch, supporting seamless wet-hand and gloved operation.

  • Target Applications: Engineered for wastewater treatment plants, oil & gas drilling consoles, commercial automated car wash tunnels, agricultural greenhouse automation, and outdoor petrochemical processing.

Category:
Item Specifications
System & Hardware Performance
Processor (CPU) Intel Celeron® J1900 / J4125 / J6412 / J6413 (Optional: Intel® Core™ i3 / i5 / i7 / i9)
Memory (RAM) 8GB DDR3/DDR4 (Optional: 4GB / 16GB / 32GB / 64GB)
Storage 128GB SSD (Optional: 256GB / 512GB / 1TB SSD, 2.5″ HDD)
Cooling System Fanless Passive Cooling / Ultra-Quiet Active Cooling
Operating System (OS) Windows 10 / 11 Pro, Windows 10 IoT Enterprise, Linux (Ubuntu, Debian, CentOS)
Expansion Slots 1 × Mini PCIe (for Wi-Fi/4G/Bluetooth), 1 × M.2 (NVMe/SATA), 1 × SIM Card Slot
Industrial Features Watchdog Timer (1–255s), Auto Power On, Wake-on-LAN (WoL)
LCD Panel Characteristics
Screen Size 21.5″ TFT LCD (7″ to 55″ available upon request)
Resolution 1920 × 1080Full HD
Aspect Ratio 16:9
Brightness 350 cd/m² (High Brightness 1000–1500 nits Sunlight Readable Optional)
Viewing Angle 85°/85° (H), 85°/85° (V) (Wide Viewing Angle)
Contrast Ratio 1000:1
Backlight MTBF ≥ 50,000 Hours
Touchscreen Options
Touch Type Projected Capacitive (PCAP 10-Point Multi-Touch) / 5-Wire Resistive / Non-Touch
Surface Hardness ≥ 7H (PCAP Glass) / ≥ 3H (Resistive)
Touch Durability ≥ 50 Million Touches
Light Transmission ≥ 88% (Resistive) / ≥ 90% (PCAP)
I/O Interfaces & Power Supply
Standard I/O Ports 2–4 × USB 3.0/2.0, 1 × HDMI, 1–2 × RJ45 Gigabit LAN, 1 × VGA, 1–4 × RS232/RS485 COM
Audio 1 × 3.5mm Line-out / Mic-in (Built-in Dual Speakers Optional)
Power Input Standard DC 12V / Optional DC 9–36V Wide Voltage Input (AC 100–240V Adapter included)
Optional Modules & Functions
Wireless Connectivity Dual-Band Wi-Fi (2.4G/5G), Bluetooth 5.0, 4G/5G LTE Module
Data Capture & Cameras RFID / NFC Reader, 2D Barcode Scanner, Integrated 2MP/5MP Webcam
Industrial Bus CAN Bus, Isolated GPIO / DIO (Digital I/O)
Light Sensor Auto-Brightness Sensor (Light Sensor)
Mechanical & Environmental
Enclosure Material Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal
Surface Finish Sandblasted Anodized / Powder Coated / CNC Brushed
Housing Color Default Black / Industrial Silver / Custom RAL Colors
IP Protection Front Panel IP65 (Full Sealed IP67/IP69K Waterproof Optional)
Mounting Options VESA 75×75 / 100×100 mm, Panel Mount, Embedded, Desktop Stand
Operating Temperature -20°C to 60°C (-4°F to 140°F) (Optional Wide Temp -30°C to 80°C)
Storage Temperature -30°C to 80°C (-22°F to 176°F)
Certifications CE, FCC, RoHS Compliant
