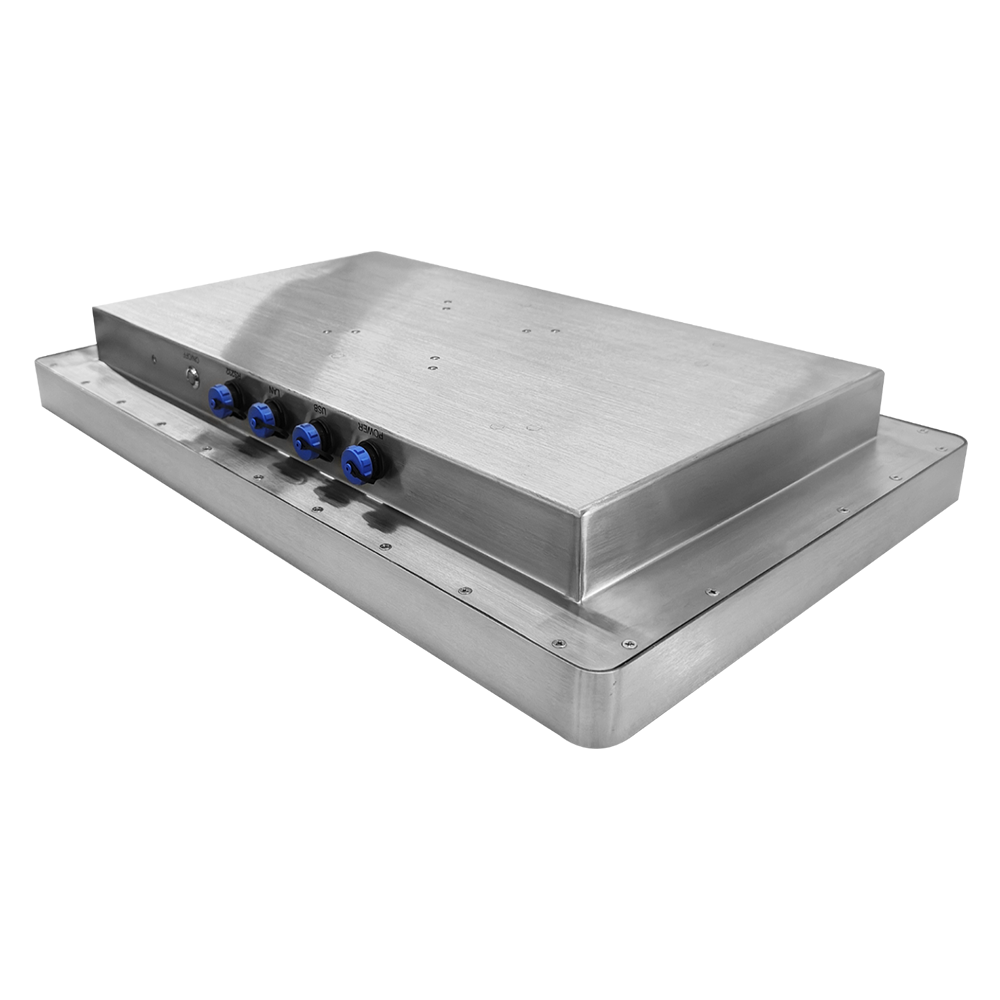

15.6″ Full IP67 Stainless Steel Industrial Panel PC (1500 Nits High Brightness, -20°C~80°C Wide Temp, Fanless Touch HMI)

Engineered for extreme outdoor harsh environments, marine operations, and intensive washdown facilities. The INNODA 15.6″ Full IP67 Stainless Steel Panel PC combines rugged SUS304 construction with an ultra-bright 1500 nits sunlight-readable display and an extreme -20°C to 80°C wide operating temperature range. Equipped with sealed industrial aviation I/O connectors, it delivers 24/7 uninterrupted computing under direct sunlight and high-humidity washdowns.

  • Full IP67 Ingress Protection: Completely dust-tight and submersible up to 1 meter depth

  • Sunlight-Readable Display: 15.6″ 1500 nits high-luminance panel with optical bonding

  • Extreme Wide Temperature: Operates reliably from -20°C to 80°C (-4°F to 176°F)

  • Corrosion-Resistant Housing: Food-grade Grade 304 stainless steel (SUS316L optional)

  • Industrial Aviation I/O: Dedicated sealed ports for DC Power, USB, Gigabit LAN, RS232, and On/Off switch

  • True Fanless Cooling: Heavy-duty passive internal heatsink architecture for zero noise and long MTBF

Categories: , , , Tags: , , , , ,

Built for Direct Sunlight & Severe Industrial Extremes

Standard industrial computers deployed outdoors or in harsh washdown facilities inevitably suffer from screen glare, moisture condensation, and thermal throttling under extreme heat or freezing cold. The INNODA 15.6″ Full IP67 Stainless Steel Panel PC is purpose-built to conquer these challenges, boasting an optical-bonded 1500-nit high-brightness display that remains crystal clear under direct sunlight, paired with a solid SUS304 housing tested across an extreme -20°C to 80°C temperature envelope.

Comprehensive Hardware Specifications

System & Computing Core
Processor (CPU)

• Intel® Celeron® J1900 (Quad-Core, 2.0 GHz up to 2.42 GHz)



• Intel® Celeron® J6412 (Elkhart Lake, Quad-Core up to 2.6 GHz, Low TDP)



• Intel® Core™ i3/i5/i7 (8th/10th/11th Gen) U-Series for High-Demand Edge Vision & MES Processing
System Memory (RAM) DDR3L / DDR4 SO-DIMM, 4GB / 8GB / 16GB / 32GB High-Speed Industrial Memory
Storage Options (SSD)

• 1x High-Reliability mSATA SSD / M.2 NVMe SSD (64GB / 128GB / 256GB / 512GB / 1TB)



• Internal anti-vibration 2.5″ SATA SSD expansion supported
Operating Systems (OS) Windows 10 IoT Enterprise, Windows 11 Pro, Linux (Ubuntu, Debian, Red Hat)
Display & Optical Specifications
Display Size & Aspect Ratio 15.6-inch Industrial Grade A+ TFT LCD / 16:9 Widescreen
Native Resolution Full HD 1920 × 1080 (1080p)
Luminance (Brightness) 1500 nits (cd/m²) Sunlight Readable; Optical Bonding & Auto-Dimming Sensor optional
Touch Screen Technology True-Flat Projected Capacitive (PCAP) Multi-Touch, 7H tempered surface glass; supports wet hands, chemical splash, and heavy glove operation
Enclosure & Waterproof Connectivity
Chassis Material Grade 304 Stainless Steel (Optional SUS316L for salt-spray, offshore, and chemical plants)
Protection Level Full IP67 Ingress Protection (Complete 360-degree dust/waterproof sealing)

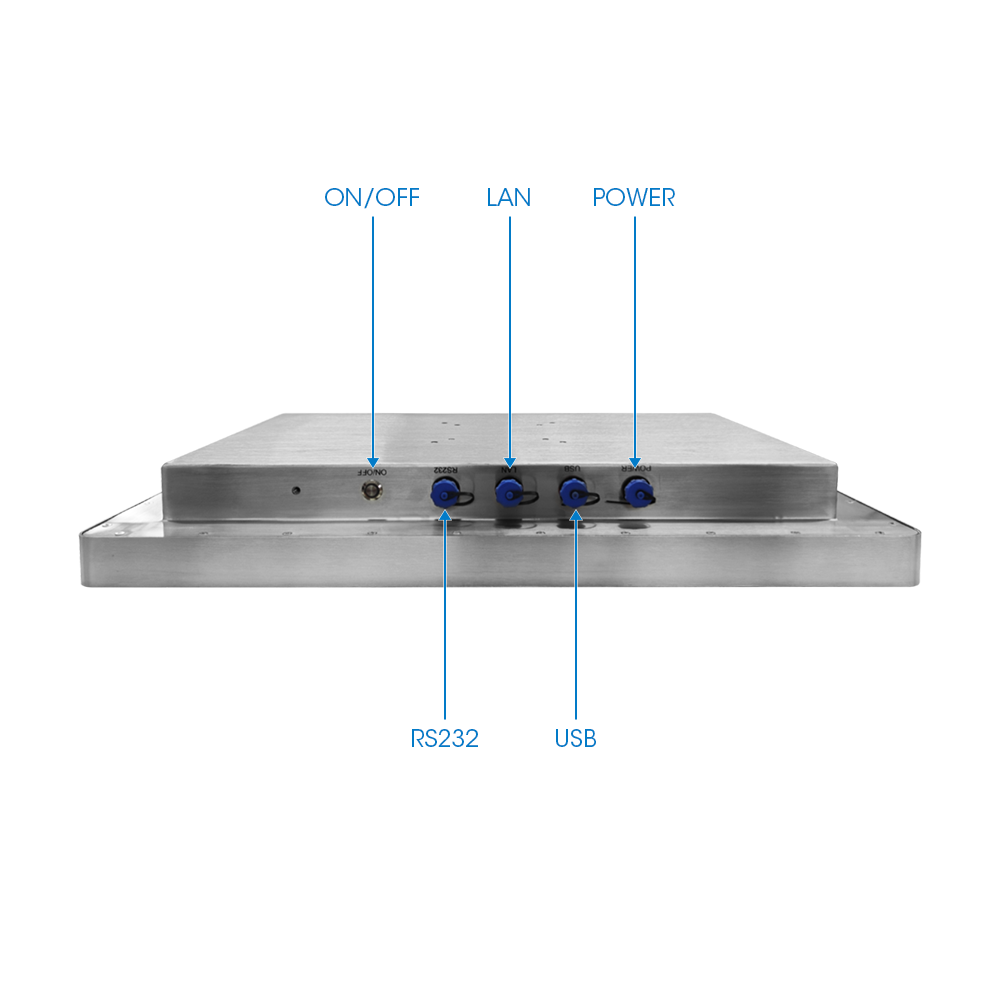

Sealed Aviation I/O Ports

• 1x Sealed Aviation DC Power Input (Locking Thread)



• 1x Sealed Aviation USB 2.0 / USB 3.0 Port (Dual USB supported)



• 1x Sealed Aviation RJ45 Gigabit Ethernet (LAN)



• 1x Sealed Aviation RS232 COM Serial Interface



• 1x Waterproof Metal Push-Button On/Off Switch
Electrical & Environmental Parameters
Power Input Range Wide Voltage DC 9V–36V with over-voltage, over-current, and surge protection (AC 100–240V adapter included)
Operating Temperature -20°C to 80°C (-4°F to 176°F) Wide Temperature Certified
Cooling Architecture Fanless Passive Thermal Dissipation (Zero moving parts, dust-free interior)
Mounting Configurations Rear VESA 75 × 75 mm / 100 × 100 mm, Swing Arm Mount, Panel Mount Brackets optional
Certifications CE, FCC, RoHS, ISO9001
