27″ 1500 Nits Black Stainless Steel Waterproof Touch Monitor

  • Black Powder-Coated Stainless Steel: Heavy-duty 304/316 grade stainless steel housing treated with a specialized black anti-corrosion coating, offering sleek aesthetics and maximum industrial durability.

  • 1500 Nits Sunlight-Readable Display: High-luminance 27″ Full HD screen delivers crystal-clear visibility even under intense outdoor direct sunlight and glare.

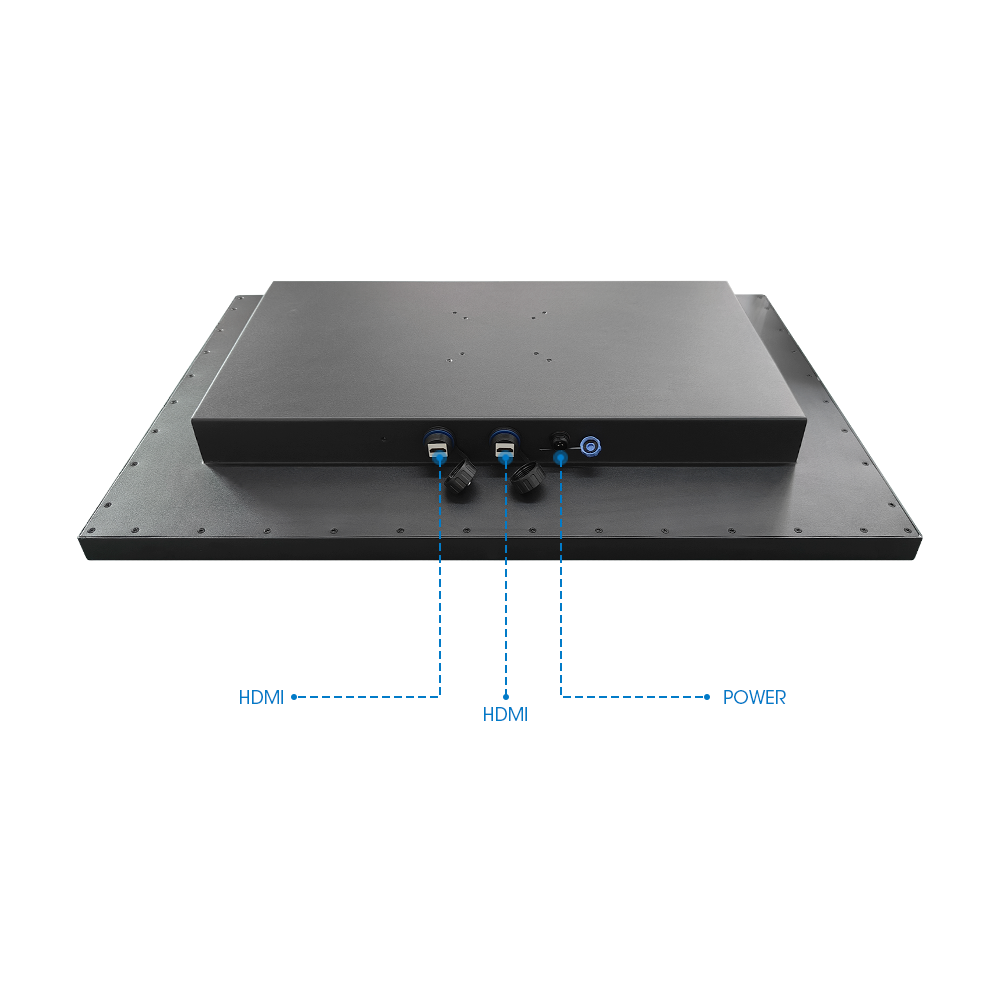

  • Full Sealed Ingress Protection: IP65/IP66 waterproof and dustproof sealed enclosure with industrial locking dual-HDMI and power aviation connectors.

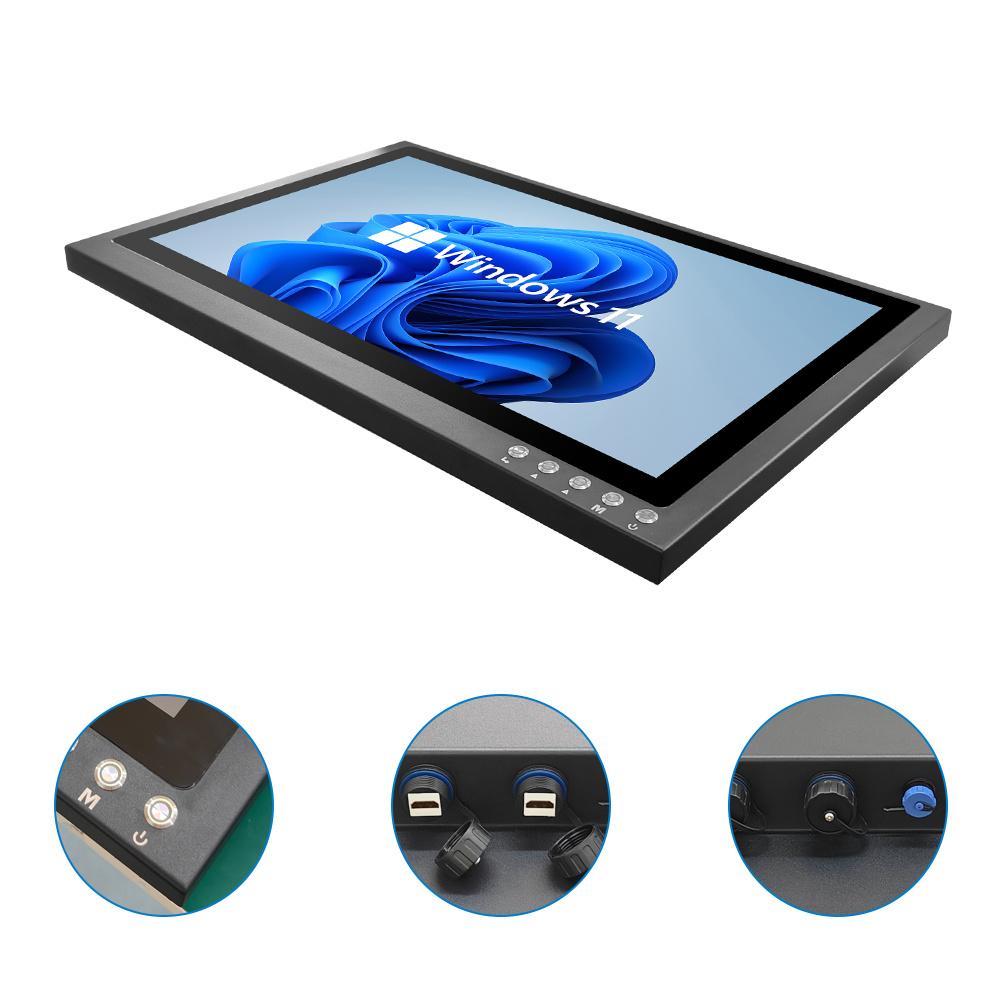

  • Integrated Front OSD Controls: Built-in rugged front-panel membrane push buttons for convenient brightness adjustment and display setup on the fly.

  • Target Applications: Engineered for smart port crane cabins, outdoor EV fast-charging stations, heavy mining vehicle consoles, theme park ticketing displays, and steel metallurgy workshops.

Category:
Item Specifications
LCD Panel Characteristics
Screen Size 27″ (7″ to 55″ available upon request)
Resolution 1920 × 1080 Full HD (Optional 4K available)
Aspect Ratio 16:9
Brightness 1000–1500 cd/m² (Sunlight Readable)
Viewing Angle 80°/80° (H), 80°/80° (V) / Full Viewing Angle Optional
Contrast Ratio 1000:1
Backlight MTBF ≥ 50,000 Hours
Touchscreen Characteristics (Optional)
Touch Type Projected Capacitive (PCAP) / 5-Wire Resistive / Infrared (IR) / Non-Touch
Surface Hardness ≥ 7H (PCAP) / ≥ 3H (Resistive)
Touch Durability ≥ 50 Million Touches (PCAP) / ≥ 35 Million Touches (Resistive)
Light Transmission ≥ 88% (Resistive) / ≥ 90% (PCAP)
I/O & Power Interface
Video Inputs 1 × HDMI, 1 × VGA (Optional: DVI, DisplayPort)
Touch Interface 1 × USB (Type-B / Type-A) or RS232 COM for touch controller
Audio 1 × 3.5mm Audio In/Out (Built-in Speakers Optional)
Power Input Standard DC 12V / Optional DC 9–36V Wide Voltage Input
Mechanical & Environmental
Enclosure Material Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal
Surface Finish Sandblasted Anodized / Powder Coated / CNC Brushed
Housing Color Default Black / Silver / Custom RAL Colors
IP Protection Front Panel IP65 (Full Enclosure IP65/IP67/IP69K Optional)
Mounting Options VESA 75×75 / 100×100 mm, Panel Mount, Open Frame, Desktop Stand
Operating Temperature -20°C to 70°C (-4°F to 158°F)
Storage Temperature -30°C to 80°C (-22°F to 176°F)
Certifications CE, FCC, RoHS Compliant
