The INNODA Fanless Industrial Panel PC series with high-density serial connectivity is engineered to solve communication bottlenecks on modern automated factory floors. Built specifically for industrial IoT gateways, SCADA terminal controls, CNC machinery interfaces, and multi-sensor acquisition skids, this all-in-one panel PC consolidates six independent COM ports (RS232/RS485/RS422) directly into a compact, fanless aluminum chassis.

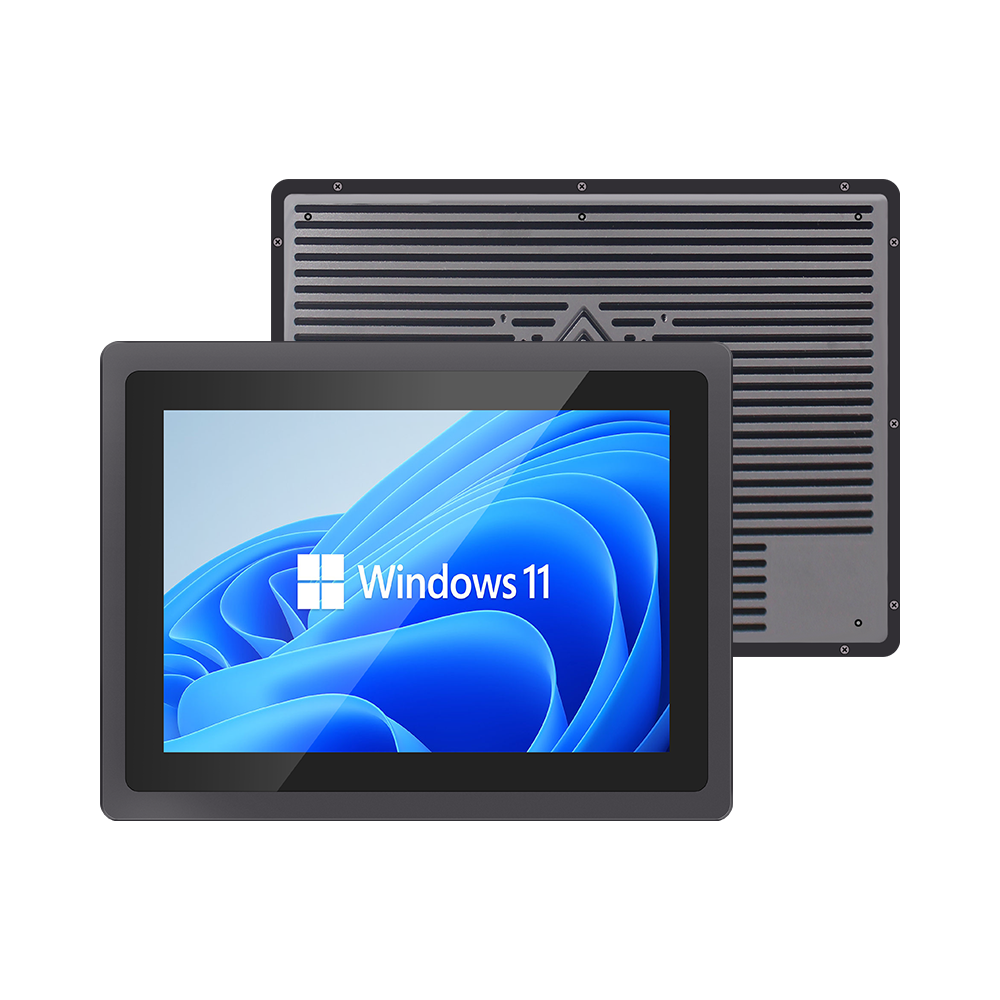

Featuring an edge-to-edge true-flat front touchscreen and a heavy-duty ribbed aluminum heat-sink back cover, this platform operates silently without internal mechanical cooling fans. Equipped with dual power input options—including a Phoenix industrial screw terminal supporting wide 9V–36V DC—it delivers continuous 24/7 reliability across fluctuating plant-floor power grids.
Key Architectural & Engineering Highlights
-

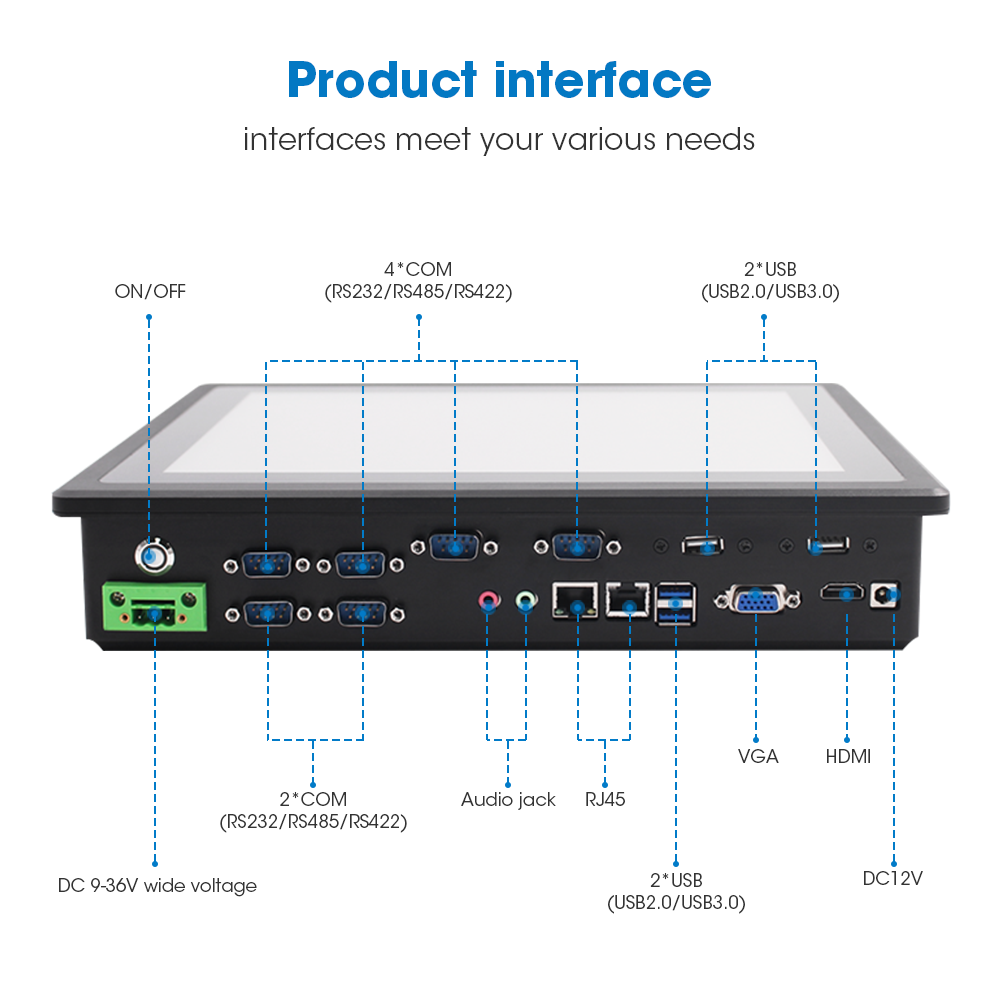

High-Density 6 × COM Port Array: Eliminates the clutter and unreliability of external USB-to-serial conversion hubs. Features 6 hardware DB9 serial ports with software/BIOS switchable RS232, RS485, and RS422 communication protocols to interface seamlessly with PLCs, servo motor drives, weigh scales, and optical scanners.
-
Dual DC Power Input Architecture: Designed for diverse installation environments, offering both a locking 3-pin Phoenix terminal block for wide 9V–36V DC cabinet wiring and a standard 12V DC barrel connector for desktop/test-bench testing.
-

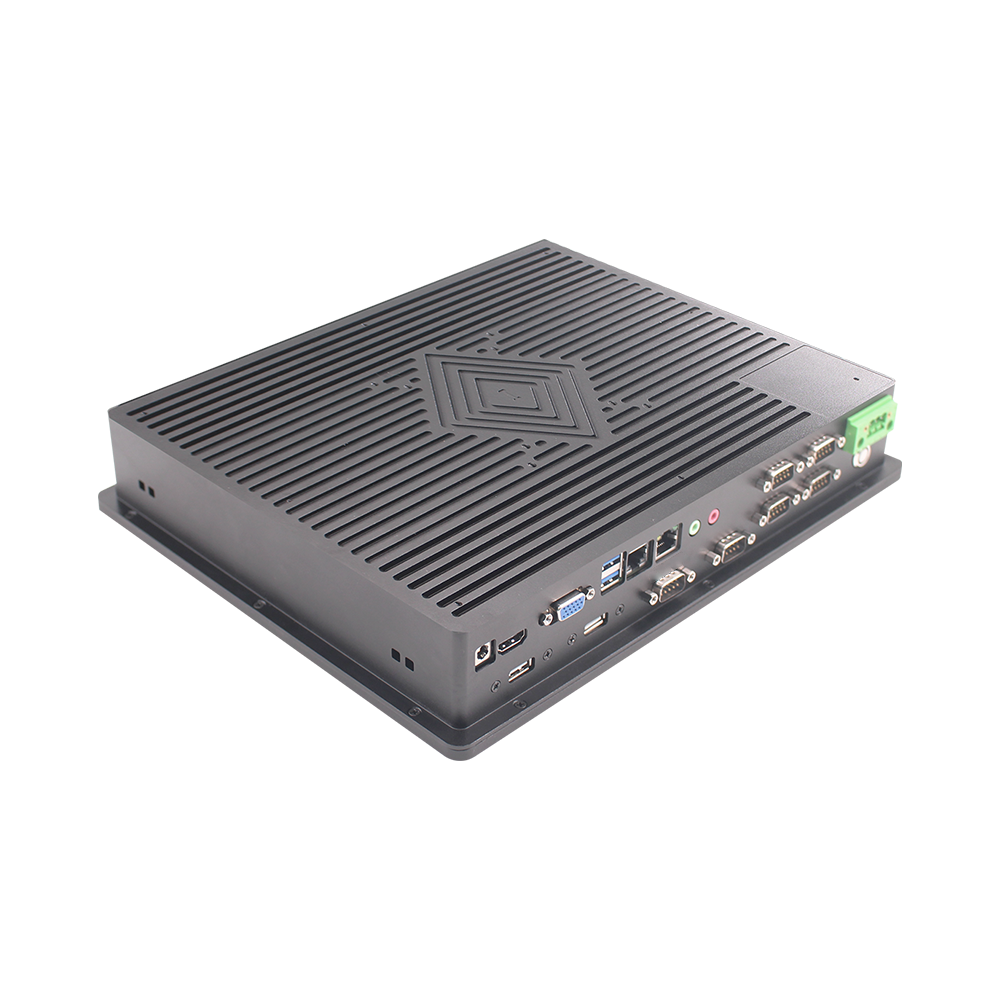

Passive Fanless Aluminum Cooling: The entire rear enclosure is precision-machined with high-surface-area convective cooling fins. Heat is pulled away from the internal processor passively, preventing shop-floor dust, metallic particles, and airborne oils from entering the housing.
-
Dual Independent Display Output: Integrated HDMI and VGA video ports allow engineers to connect a secondary external monitor for extended SCADA control dashboards or overhead production line status boards.
-
True-Flat Front Bezel Design: The IP65-rated front panel prevents dust and liquid ingress when clamped into control cabinet cutouts, while the smooth perimeter allows rapid wipe-down maintenance.
-
Touch Flexibility: Precision Projected Capacitive (PCAP) 10-point multi-touch with 7H chemically strengthened glass, or 5-Wire Resistive touch option for heavy glove operation.
Comprehensive Hardware Specifications
| System Category | Detailed Technical Specification |
| Display Diagonal Sizes | Available in 10.1″, 12.1″, 15.6″, 17.3″, 19″, and 21.5″ LCD options |
| Touchscreen Technology | 10-Point PCAP Multi-Touch (7H Tempered Glass) / Optional 5-Wire Resistive Touch |
| Processor (CPU) Options | Intel Celeron Quad-Core J6412 / J1900 / Core i3/i5/i7 Embedded Processors |
| System Memory (RAM) | DDR4 SO-DIMM Slot, supporting up to 32GB 3200MHz |
| Storage Architecture | 1 × M.2 2280 NVMe/SATA SSD slot + 1 × 2.5″ SATA SSD/HDD bay |
| Operating System Support | Windows 11 / Windows 10 IoT Enterprise, Linux (Ubuntu, Debian, CentOS) |
| Serial Interfaces (COM) | 6 × DB9 COM Ports (COM1–COM6 supporting RS232, with RS485/RS422 pinout configurations) |
| USB Ports | 4 × USB Ports (2 × USB 3.0 High-Speed + 2 × USB 2.0) |
| Network & Audio | 2 × Intel Gigabit RJ45 LAN + 1 × 3.5mm Audio Output / Mic Jack |
| Video Expansion | 1 × HDMI + 1 × VGA (Dual independent display expansion) |
| Power Input Subsystem | Dual Input: 3-pin Phoenix Terminal (DC 9V–36V wide input) + DC 12V barrel socket |
| Thermal & Enclosure | Fanless heavy-duty ribbed aluminum alloy heatsink chassis with IP65 front protection |
| Operating Temperature | -10°C to 60°C (Standard) / -20°C to 70°C (Wide temperature option) |
| Mounting Provisions | Embedded Panel-Mount (Clamping hooks included), Rear VESA 75×75 / 100×100 mm |
Target Industry Automation Applications
-
Factory Automation & PLC Cell Control: Interface with multiple legacy Modbus RS485 field instruments, PLCs, and servo drives without network multiplexers.
-
Warehouse Logistics & AGV Dispatch: Wide 9V–36V voltage tolerance absorbs vehicle battery fluctuations on automated guided vehicles and mobile carts.
-
CNC Machine Tool Interfaces: Heavy-duty aluminum back chassis shields internal processing electronics from high electromagnetic interference (EMI).
-
Environmental & Water Treatment Skids: Long-term 24/7 reliability in unventilated outdoor pump cabinets and SCADA telemetry rooms.
Need custom I/O configurations, specific RS485 isolation modules, or 3D STEP models for cabinet design? Contact INNODA’s technical engineering team to request wholesale pricing and evaluation sample units.
