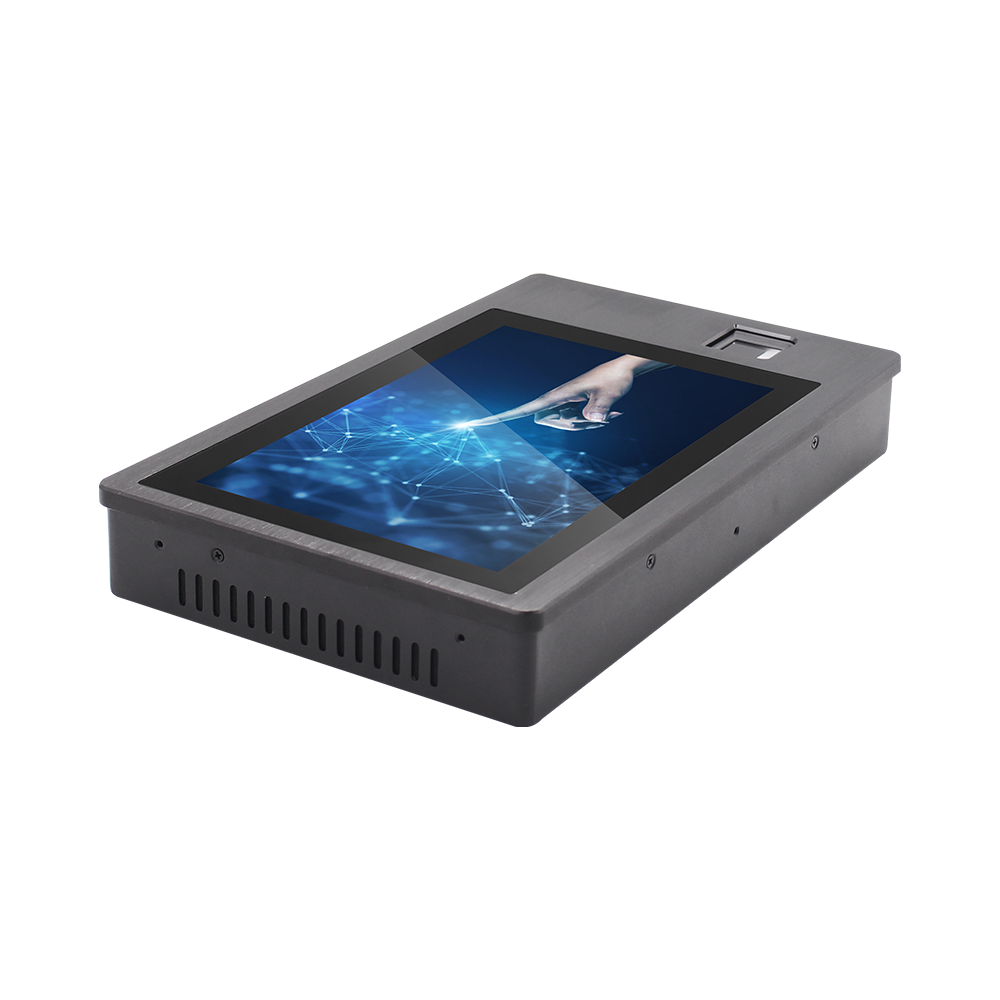

The INNODA 10.1-inch Biometric Fingerprint Industrial Panel PC is purpose-built for smart security checkpoints, automated turnstile barriers, cleanroom airlocks, and industrial operator authorization terminals. Combining responsive touch visualization with a hardware-integrated biometric fingerprint scanner built directly into the front bezel, this compact all-in-one terminal enforces strict role-based access control without external peripheral dongles.
Featuring a brushed anodized aluminum front flange and a reinforced thermal chassis, the system incorporates an innovative recessed L-shaped I/O bay. By sinking communication and power ports into a protected rear cavity, cables route neatly flush against walls, machine frames, or turnstile pillars without bending stress. An independent rear service access cover allows technicians to swap solid-state storage or SIM modules in seconds during routine field maintenance.
Key Architectural & Engineering Highlights
-

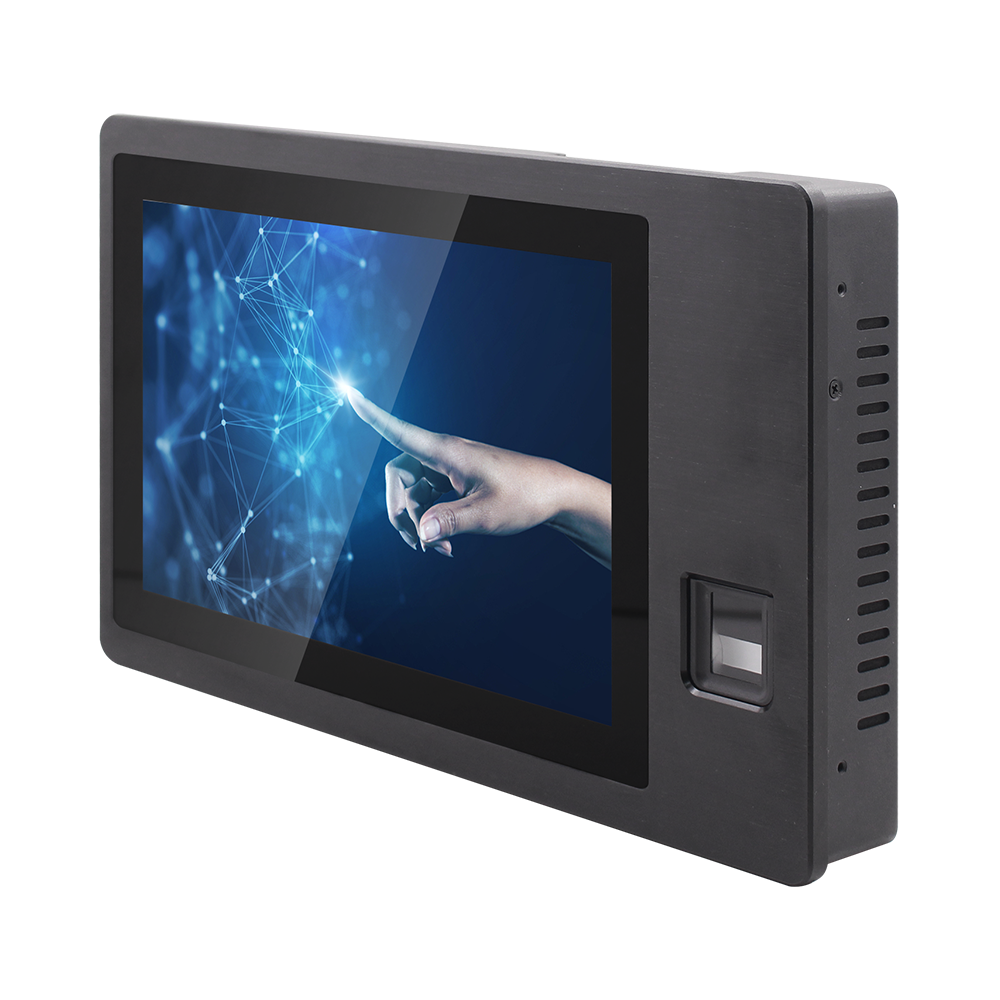

Bezel-Integrated Biometric Fingerprint Sensor: Eliminates loose USB scanner cables on shop floors and public gates. The high-resolution biometric scanner supports rapid 1:1 and 1:N fingerprint verification (<0.5 second matching), preventing identity spoofing in time attendance, pharmaceutical cleanrooms, and secure machine operation.
-

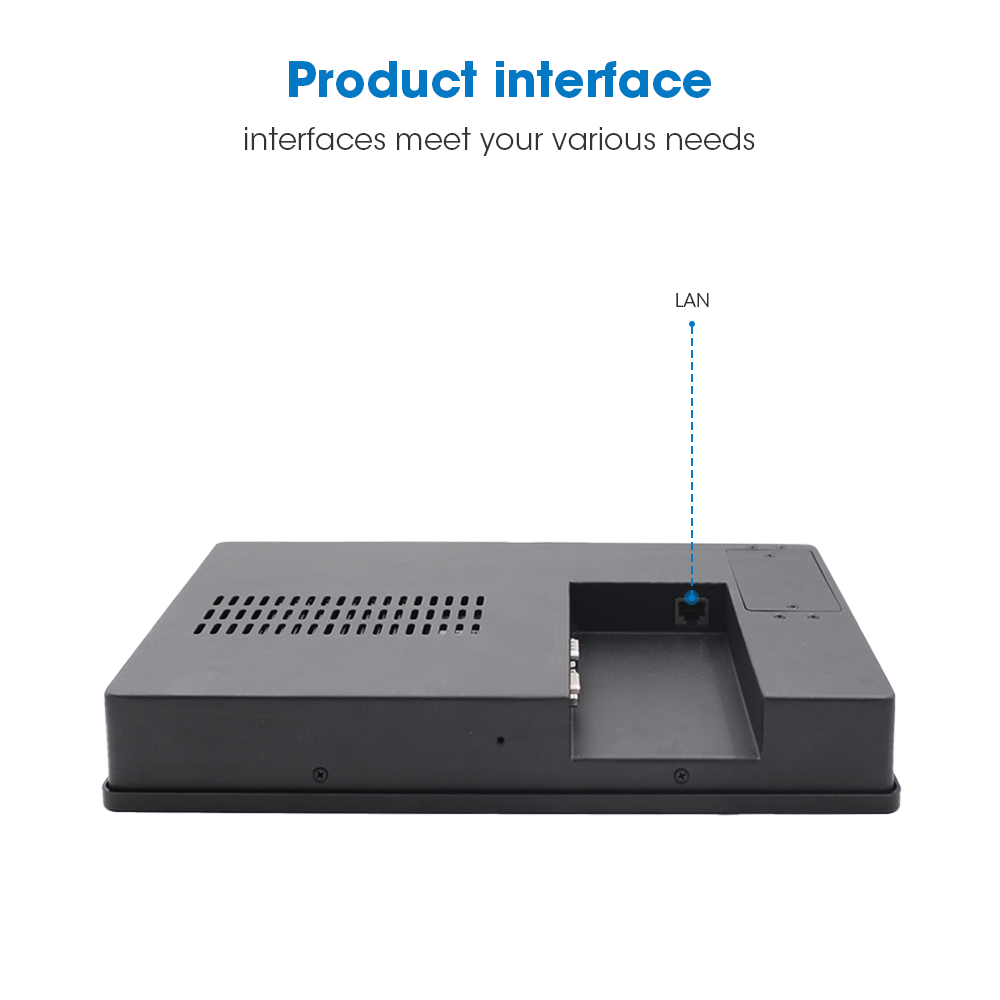

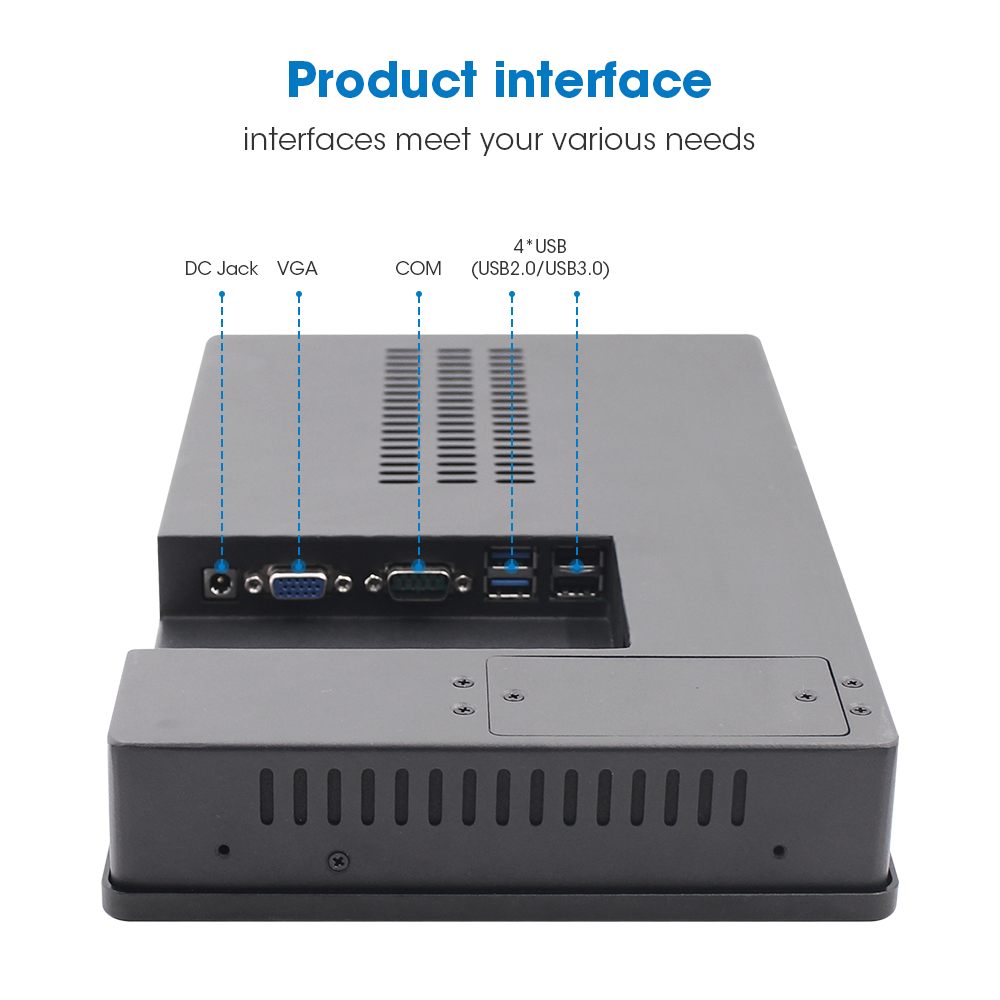

Recessed Concealed I/O Architecture: All essential ports—including RJ45 Gigabit Ethernet, DB9 RS232 serial, 4 × USB ports, and DC power—are positioned inside a sunken enclosure pocket. Cables exit parallel to the housing, ensuring zero connector damage and enabling ultra-flush mounting.
-
Brushed Anodized Aluminum Craftsmanship: Precision-machined front metal bezel with fine hairline brushing delivers an elegant commercial finish while providing structural rigidity against high-traffic physical impact.
-
Quick-Access Modular Service Bay: A dedicated screw-down metal hatch on the rear casing grants direct access to internal storage and wireless slots, slashing maintenance downtime by over 70%.
-
Dual Mounting Versatility: Supports front perimeter clamp panel mounting (for kiosks and equipment doors) as well as rear VESA standard mounting for articulated swing arms and wall brackets.
-
Flexible Operating System Support: Compatible with Windows 10 IoT, Windows 11, and Linux (Ubuntu/Debian) distributions, providing standard biometric SDKs for custom software integration.
Technical Specifications Matrix
| System Category | Detailed Technical Specification |
| Display Diagonal & Ratio | 10.1-inch Active Matrix TFT LCD, 16:10 Widescreen |
| Resolution & Viewing Angle | 1280 × 800 HD Resolution; 85°/85°/85°/85° Wide Viewing Angles |
| Luminance / Brightness | Standard 300–350 nits ($cd/m^2$) / Optional High-Brightness up to 800 nits |
| Touchscreen Interface | 10-Point Projected Capacitive (PCAP) Multi-Touch with 7H Scratch-Resistant Tempered Glass |
| Biometric Fingerprint Scanner | Embedded 500 DPI Optical / Capacitive Fingerprint Module; False Acceptance Rate (FAR) ≤ 0.001% |
| Processor (CPU) Options | Intel Celeron Quad-Core (J1900 / J6412) / Core i3/i5 Embedded x86 Processors |
| System Memory (RAM) | DDR3L / DDR4 SO-DIMM Slot, up to 16GB / 32GB High-Speed Memory |
| Storage Architecture | 1 × M.2 / mSATA SSD Slot (Easily accessible via rear maintenance hatch) |
| Operating System Support | Windows 10 / Windows 11 IoT Enterprise, Linux (Ubuntu, Debian) with Biometric Driver SDK |
| Network Connectivity | 1 × Realtek/Intel Gigabit RJ45 LAN (Recessed side-bay placement) + Optional Wi-Fi/Bluetooth/4G |
| USB Interfaces | 4 × USB Type-A Ports (USB 3.0 / USB 2.0 array for peripheral scanners and card readers) |
| Serial & Display Output | 1 × DB9 COM Port (RS232 protocol) + 1 × VGA output for secondary display mirrors |
| Power Input | DC 12V Barrel Jack (Optional wide DC 9V–36V power input module) |
| Enclosure Construction | Brushed Anodized Aluminum Front Bezel + Heavy-Duty Stamped Metal Rear Enclosure |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) continuous industrial duty |
| Mounting Options | Embedded Panel Mount (Flush Clamping Kit) & Rear VESA 75×75 mm Mounting Holes |
Target Industry & Commercial Deployment Sectors
-
Smart Security Turnstiles & Speed Gates: Integrated fingerprint verification and interactive touchscreen for commercial office lobbies and subway access.
-
Cleanroom & Pharmaceutical Airlocks: Enforces strict biometric operator clearance before opening automated interlock doors.
-
Manufacturing Operator Authentication: Ensures only certified engineers can unlock CNC milling controls, laser cutters, or chemical mixing programs.
-
Enterprise Time & Attendance Kiosks: Prevents “buddy punching” in warehouse logistics hubs, distribution centers, and corporate facilities.
-
Biometric Self-Service Lockers & POS: Secure customer retrieval for high-value retail lockers, gym facilities, and banking kiosks.
Need custom fingerprint SDK integration samples, RFID card reader integration, or 3D STEP models for turnstile cutouts? Contact INNODA’s technical engineering team to request wholesale evaluation units and developer datasheets.
