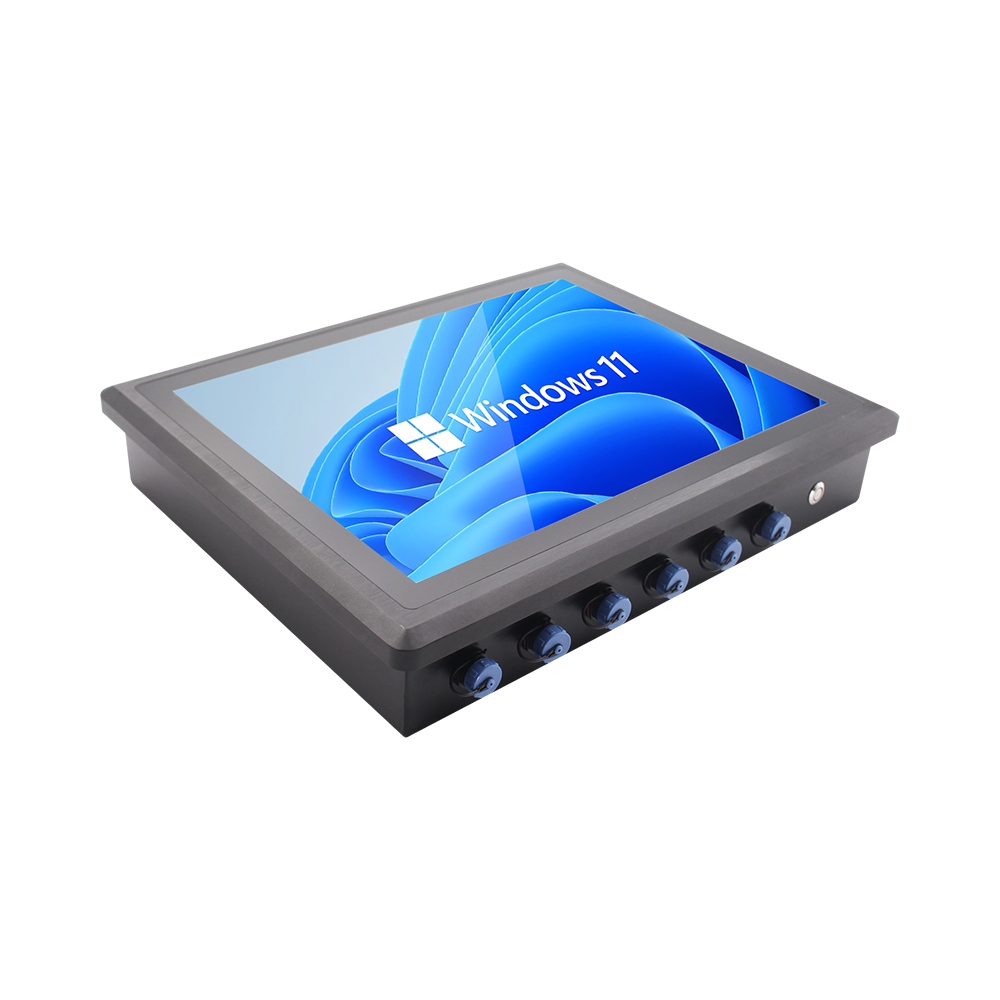

The INNODA 15-inch Full IP67 Waterproof CNC Aluminum Industrial Panel PC is engineered for demanding industrial environments where exposure to direct water washdowns, heavy oil sludge, airborne dust, and mechanical impacts causes standard computing terminals to fail. Designed with a classic 15″ 4:3 industrial aspect ratio, this all-in-one touch computer provides drop-in compatibility for factory SCADA applications, CNC tool stations, food packaging wash-racks, and outdoor marine docks.

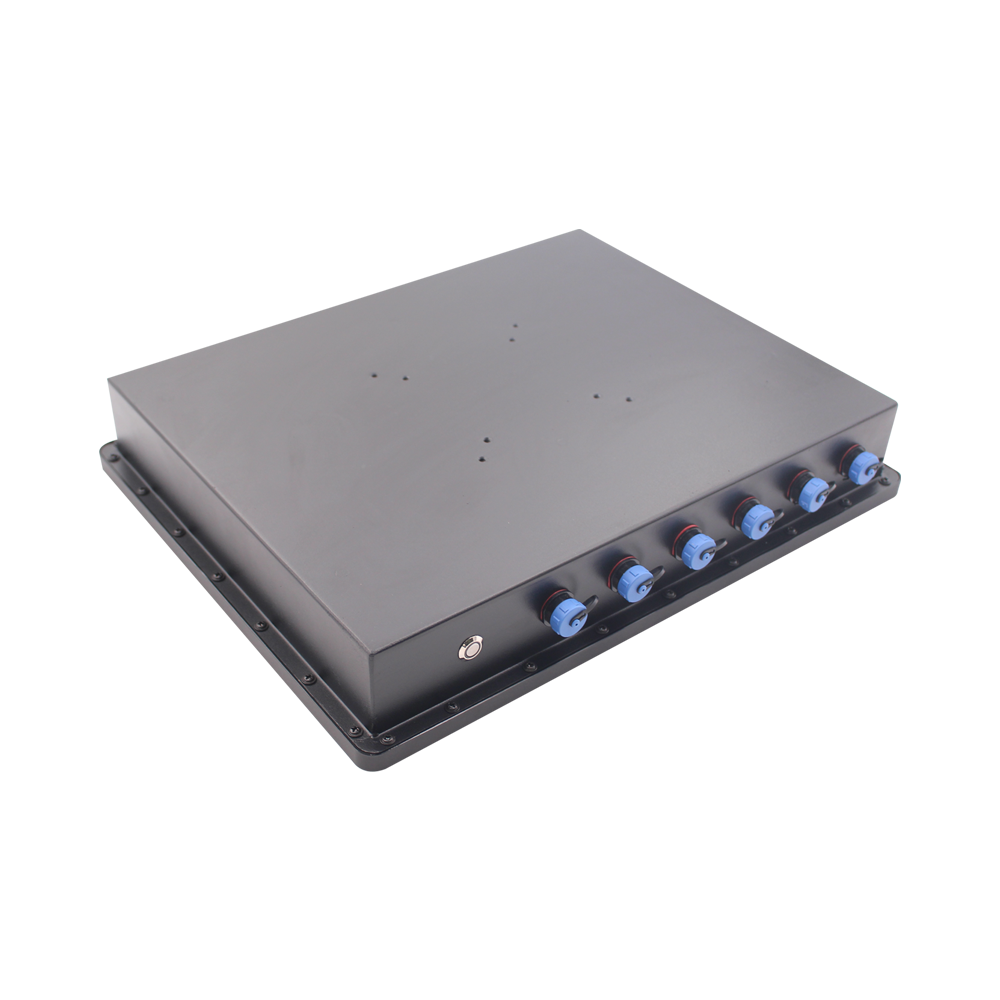

Combining a precision-milled CNC aluminum front frame with an airtight, heavy-gauge steel rear chassis, the unit completely eliminates external cooling vents. All electrical communication and power inputs are routed through sealed, twist-lock aviation-grade connectors equipped with protective tethered rubber caps, guaranteeing certified full-body ingress protection against continuous high-pressure washdown jets.
Key Architectural & Engineering Highlights
-
Full-Body 360-Degree IP65/IP67 Sealing: Unlike displays that only seal the front bezel, this terminal provides hermetic ingress defense across the entire chassis. Engineered with compressed chemical-resistant fluororubber O-rings along all perimeter mating seams.
-
Industrial M12/Twist-Lock Aviation I/O Array: Standard commercial RJ45 and USB ports allow pressurized water and moisture to seep into internal pins. Our circular locking aviation connectors isolate the interface, maintaining high-speed signal integrity under continuous water splashing and severe machine vibration.
-
Classic 4:3 Aspect Ratio (1024 × 768 XGA): The native standard for industrial automation. Legacy software, PLC human-machine interfaces, and machine vision dashboards render pixel-perfect without awkward widescreen stretching or black border letterboxing.
-
CNC Anodized Aluminum + Steel Metallurgy: The front face is milled from a solid billet of aerospace aluminum alloy with chamfered edges, while the rear box is constructed from stamped, anti-corrosion powder-coated steel for maximum electromagnetic shielding (EMI) and structural rigidity.
-
Pure Fanless Conductive Thermal Management: The internal processor conducts heat directly into the rear metal casing, which functions as an expansive passive thermal heatsink. Without moving fan parts, mechanical bearing wear and dust inhalation are eliminated.
-
Dual RS232 Serial & High-Speed I/O: Built-in dedicated waterproof serial ports (COM1/COM2) ensure direct communication with PLCs, flow meters, and weighing scales, complemented by four sealed USB ports and a Gigabit Ethernet uplink.
-
Stainless Steel Waterproof Power Switch: Features a tactile front/bottom metal push button with an integrated silicone O-ring, enabling operators to power-cycle the terminal even while spraying down equipment.
Comprehensive Hardware Specifications
| System Parameter | Detailed Technical Specification |
| Display Diagonal & Ratio | 15.0-inch Active Matrix TFT LCD, 4:3 Aspect Ratio |
| Native Resolution & Colors | 1024 × 768 XGA (Optional 1600 × 1200 high-res); 16.7 Million Colors |
| Luminance / Brightness | Standard 350–400 nits ($cd/m^2$) / Optional High-Brightness Sunlight Readable 1000 nits |
| Touchscreen Technology | True-Flat 10-Point Projected Capacitive (PCAP) Multi-Touch with 7H Tempered Glass |
| Processor (CPU) Options | Intel Celeron Quad-Core J6412 / J1900 or Intel Core i3 / i5 / i7 Embedded Processors |
| System Memory (RAM) | DDR4 / DDR3L SO-DIMM, supporting up to 16GB / 32GB High-Speed Memory |
| Solid-State Storage | Internal M.2 2280 NVMe/SATA SSD (128GB / 256GB / 512GB / 1TB capacities) |
| Operating System Support | Windows 11 Pro / IoT Enterprise, Windows 10, Linux (Ubuntu, Debian, RedHat) |
| Waterproof Aviation Interfaces |

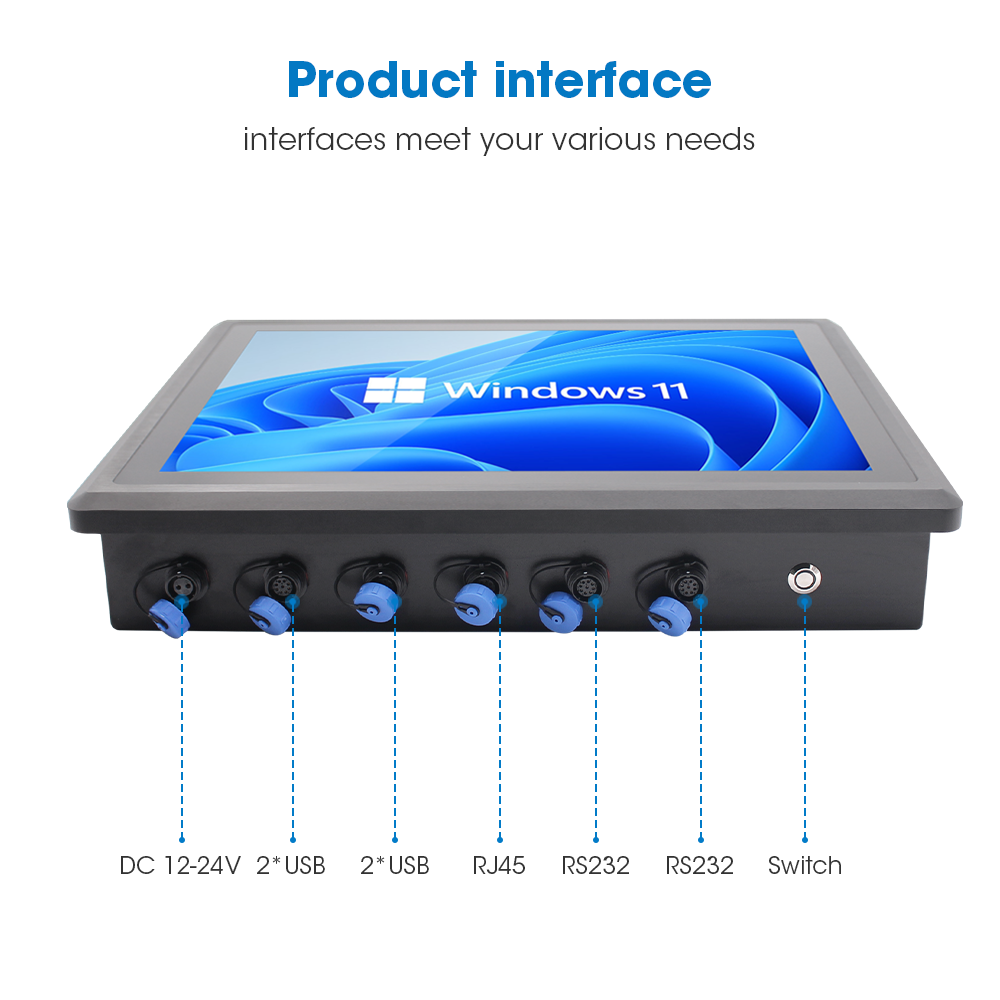

• 1 × DC 12V–24V Power Input (Aviation Socket) • 2 × Dual USB Aviation Connectors (Total 4 × USB Ports) • 1 × Gigabit RJ45 LAN (Aviation Socket) • 2 × RS232 Serial COM Ports (Aviation Sockets) • 1 × Waterproof Metal Push-Button Power Switch |
| Ingress Protection Rating | Full IP65 / IP67 Certified (360-degree dust-tight, immersion, and water jet resistance) |
| Enclosure Construction | Precision CNC Milled Aluminum Front Bezel + Sealed Heavy-Gauge Steel Back Chassis |
| Operating Temperature | -10°C to 60°C (Standard) / -20°C to 70°C (Wide-Temperature Option) |

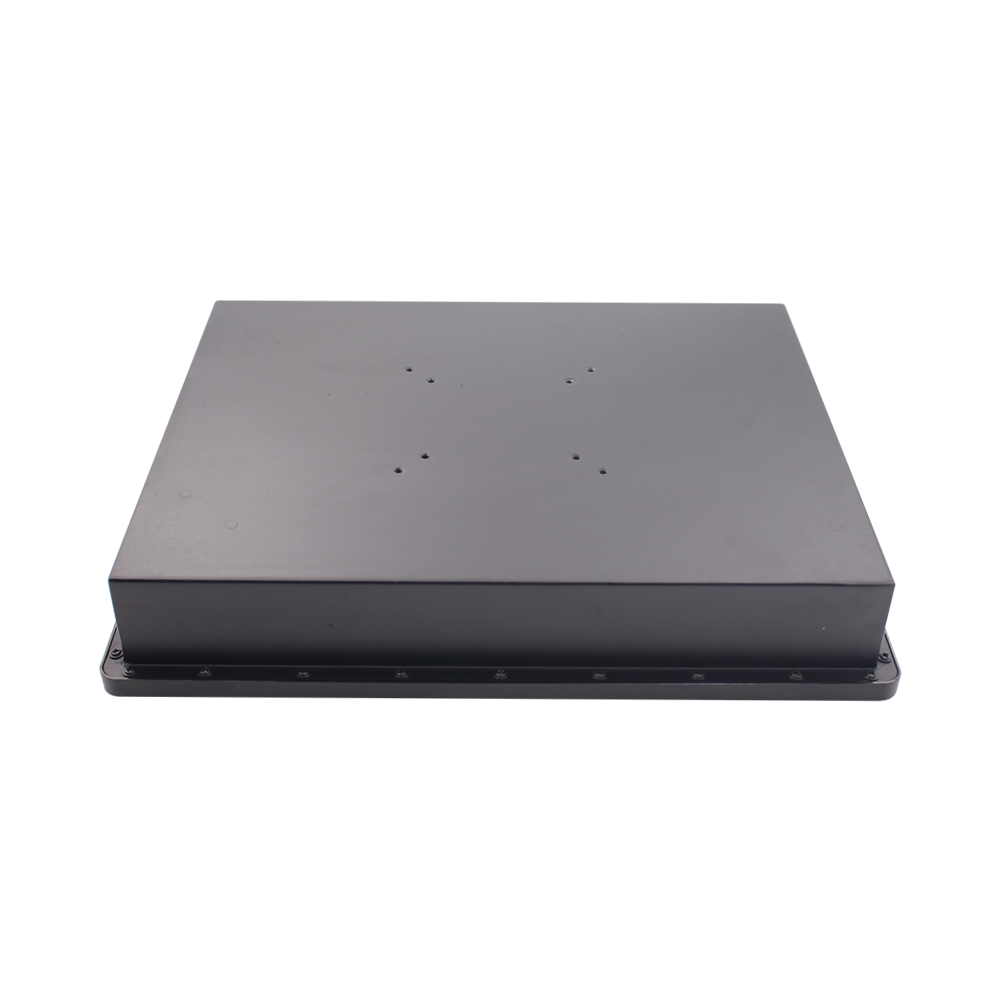

| Mounting Systems | Rear VESA 75×75 mm & 100×100 mm Pattern; Optional Heavy-Duty U-Bracket or Arm Mount |
Target Industry & Commercial Deployment Sectors
-
Food & Beverage Processing Washdowns: Withstands daily pressure cleaning with caustic sanitizers in meat packaging, bottling, and dairy plants.
-
CNC Machining & Metalworking Cells: Impermeable to coolant splashes, heavy metal cutting fluids, and flying abrasive chips.
-
Outdoor Mining & Construction Fleets: Fully sealed against blowing dust and rain when installed in wheel loaders, rock crushers, and drill rigs.
-
Chemical & Pharmaceutical Processing: Zero external ventilation grilles prevent corrosive chemical fumes and airborne vapors from attacking internal components.
-
Marine Deck & Dockside Terminals: Resists saltwater mist, rain, and heavy humidity on outdoor vessel loading cranes and shipboard work stations.
Need custom aviation cable harness lengths, optical bonding for direct sunlight, or 3D STEP models for mechanical integration? Contact INNODA’s technical engineering team to request wholesale evaluation units and custom configuration quotes.
