| Item | Specifications |
| System & Hardware Performance | |
| Processor (CPU) | Rockchip® RK3568 / RK3588 / RK3399 / RK3288 Quad/Octa-Core Cortex Processor |
| AI Computing (NPU) | Integrated NPU up to 1.0 TOPs (RK3568) / 6.0 TOPs (RK3588) for Edge AI & Vision |
| Memory (RAM) | 2GB / 4GB / 8GB / 16GB LPDDR4/LPDDR4X |
| Storage (eMMC) | 16GB / 32GB / 64GB / 128GB eMMC 5.1 (Micro SD / TF Card Expansion up to 256GB) |
| Operating System | Android 11.0 / 12.0 / 13.0 (Optional: Linux Ubuntu, Debian, Buildroot) |
| System Features | Root Access, SDK / API Provided, ADB Debugging, Watchdog Timer, Auto Power On |
| LCD Panel Characteristics | |
| Screen Size | 17.3″ TFT LCD (7″ to 55″ available upon request) |
| Resolution | 1920× 1080XGA (Optional: 1920 × 1080 Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m² (High Brightness 1000–1500 nits Sunlight Readable Optional) |
| Viewing Angle | 80°/80° (H), 80°/80° (V) / Full Viewing Angle Optional |
| Contrast Ratio | 800:1 / 1000:1 |
| Backlight MTBF | ≥ 50,000 Hours |
| Touchscreen Options | |
| Touch Type | Projected Capacitive (PCAP 10-Point Multi-Touch) / 5-Wire Resistive / Non-Touch |
| Surface Hardness | ≥ 7H (PCAP Glass) / ≥ 3H (Resistive) |
| Touch Durability | ≥ 50 Million Touches |
| Light Transmission | ≥ 88% (Resistive) / ≥ 90% (PCAP) |
| I/O Interfaces & Connectivity | |
| Standard I/O Ports | 2–4 × USB 2.0/3.0, 1 × USB OTG, 1 × HDMI Output, 1 × RJ45 LAN (100/1000M) |
| Serial Ports | 1–4 × RS232 / RS485 COM (Isolated Optional) |
| Wireless Connectivity | Dual-Band Wi-Fi (2.4GHz/5GHz), Bluetooth 5.0, 4G/5G LTE Module with SIM Slot |
| Audio | 1 × 3.5mm Audio Output / Built-in Dual Speakers (8Ω 2W) |
| Power Input | Standard DC 12V / Optional DC 9–36V Wide Voltage Input |
| Optional Modules & Expansion | |
| Data Capture & Camera | Integrated 2MP/5MP/8MP Camera, 2D Barcode Scanner, RFID / NFC Reader |
| Industrial Bus | CAN Bus, Isolated GPIO / DIO (Digital I/O) |
| Mechanical & Environmental | |
| Enclosure Material | Heavy-Duty Aluminum Alloy / 304/316 Stainless Steel / Sheet Metal |
| Surface Finish | Sandblasted Anodized / Powder Coated / CNC Brushed |
| Housing Color | Default Black / Industrial Silver / Custom RAL Colors |
| IP Protection | Front Panel IP65 (Full Enclosure IP65/IP67 Waterproof Optional) |
| Mounting Options | VESA 75×75 / 100×100 mm, Panel Mount, Embedded, Desktop Stand |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) (Wide Temp -30°C to 80°C Optional) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Certifications | CE, FCC, RoHS Compliant |
Industrial Android Tablet PC, Industrial Panel Pc, Touch Panel Pc

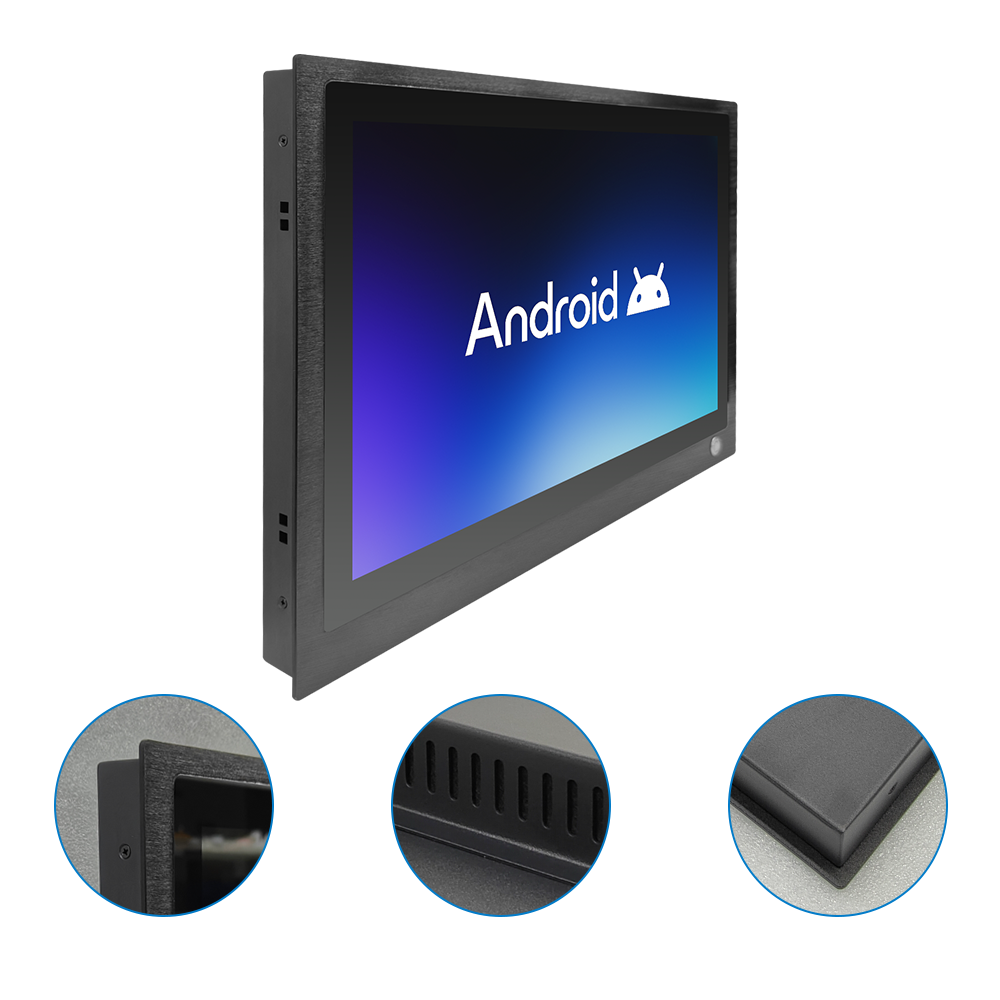

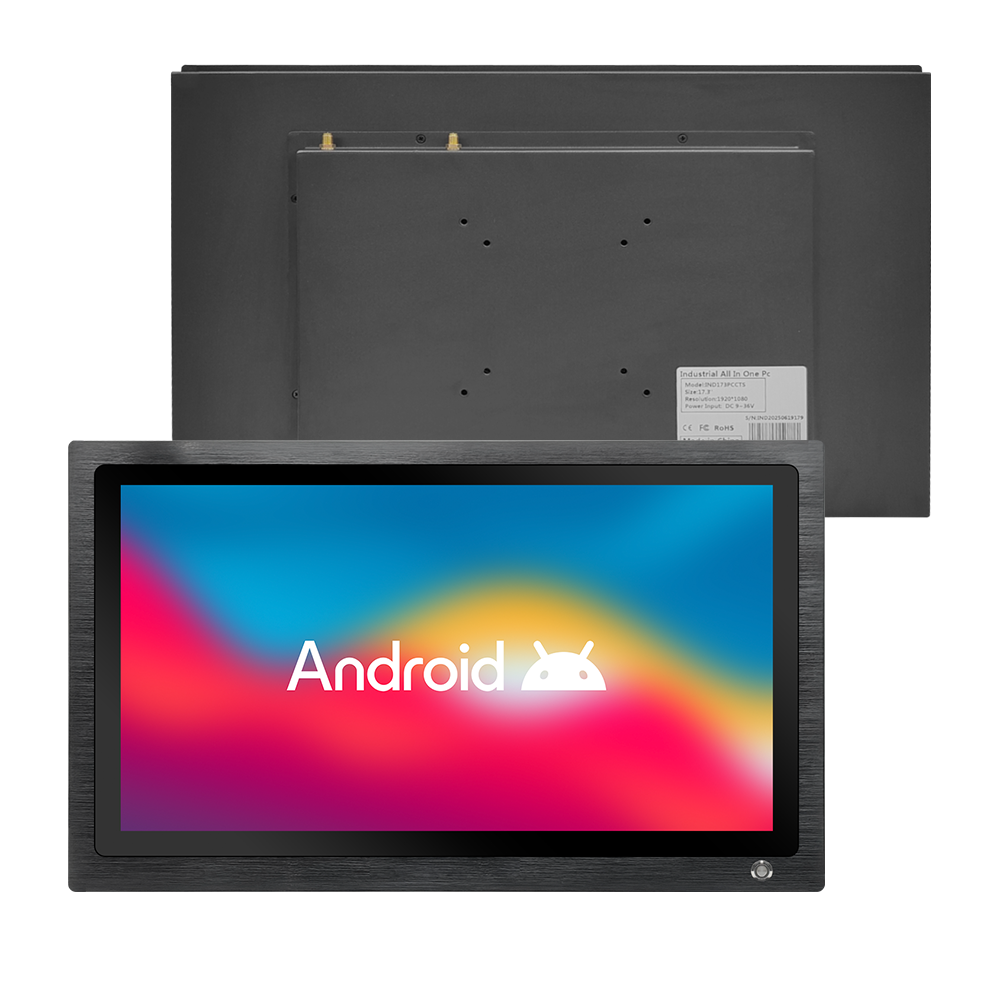

17.3″ CNC Aluminum Android Industrial Touch Panel PC
-
Full HD CNC Aluminum Front Bezel: Premium brushed CNC aluminum front frame with true-flat IP65 waterproof sealing and front-accessible metal power switch.
-
High-Performance Android Architecture: Fast and responsive Android platform supporting seamless APK deployment, cloud synchronization, and low-power 24/7 reliability.
-

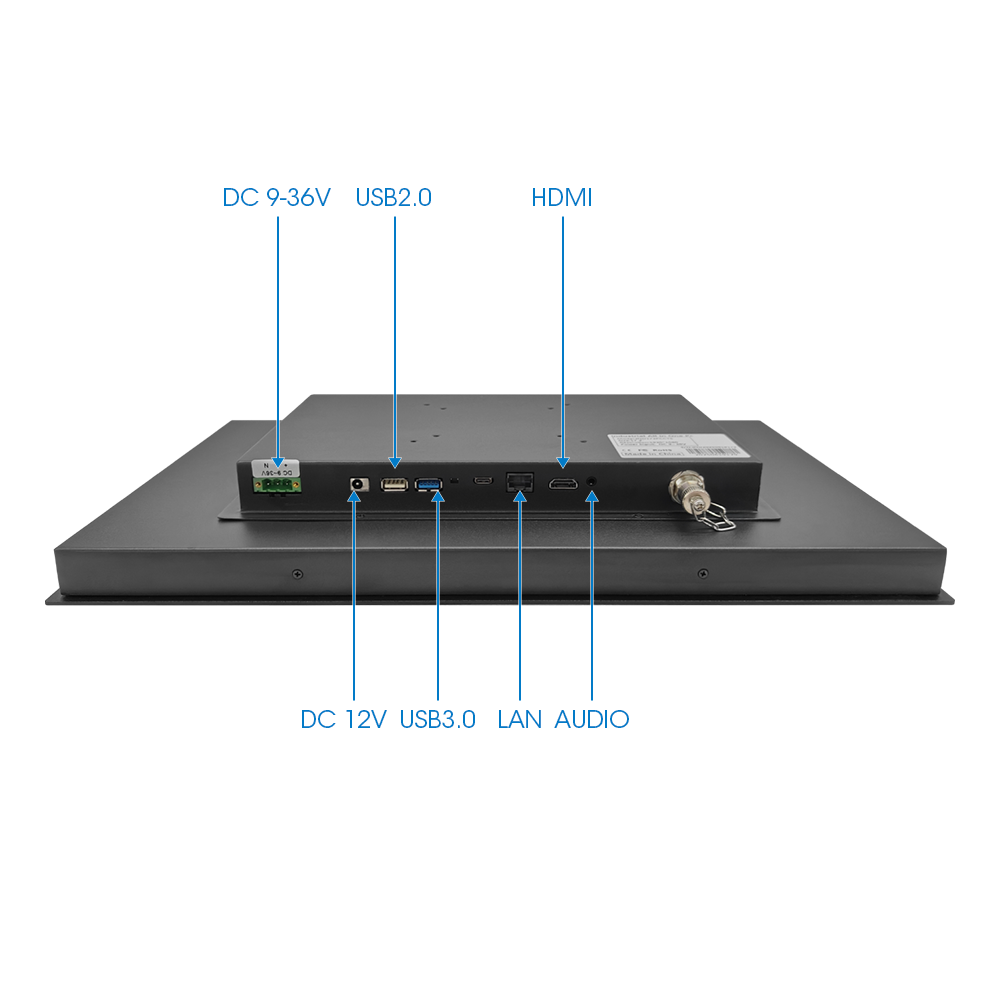

Dual Wide-Voltage & Rich Connectivity: Supports Phoenix terminal DC 9–36V wide voltage (plus DC 12V), USB 3.0/2.0, Type-C, LAN, HDMI, dual external antennas, and security lock slot.
-
Precision Capacitive Multi-Touch: 17.3″ Full HD (1920×1080) 16:9 widescreen LCD with projected capacitive (PCAP) multi-touch for sensitive operation even with gloves.
-
Target Applications: Engineered for automated warehouse sorting stations, hospital pharmacy dispensing machines, commercial kitchen display systems (KDS), robotics workcells, and semiconductor assembly MES terminals.
