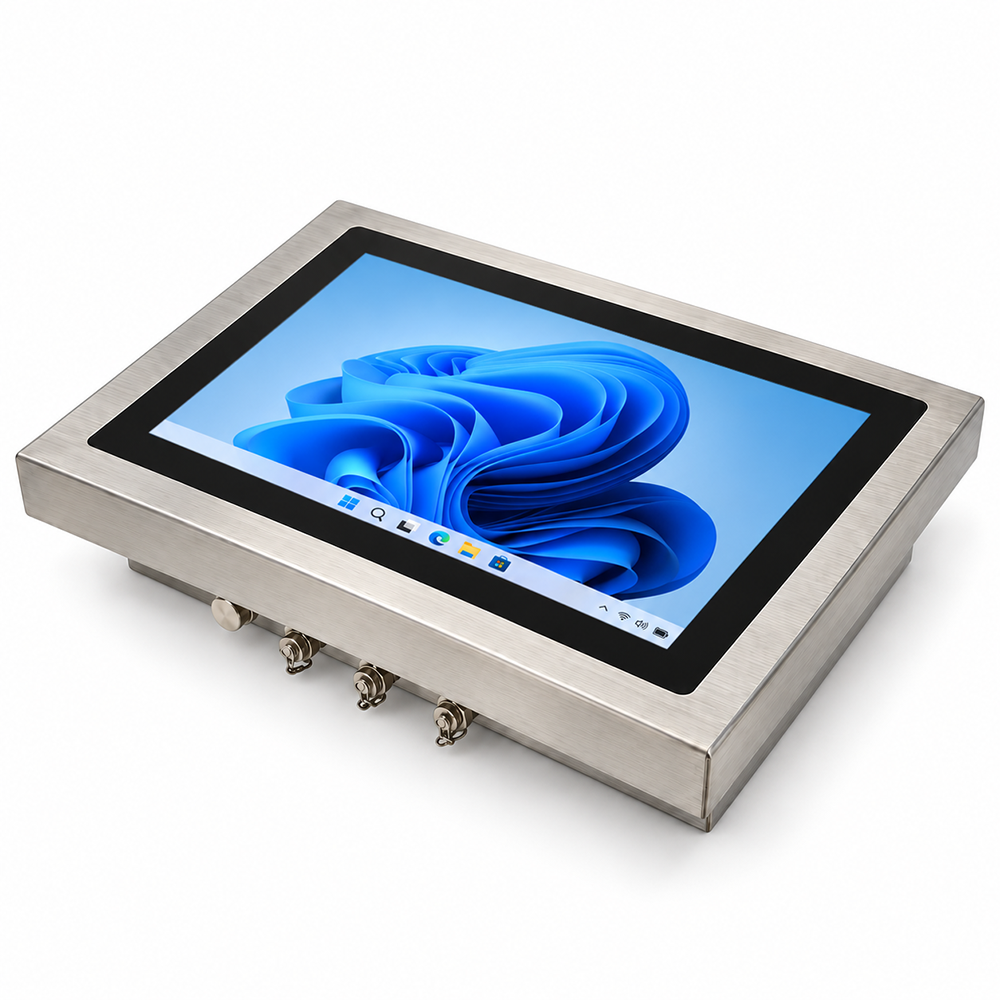

Front and bottom perspective of 12.1 inch cleanroom HMI showing tethered metal sealing caps and rugged push button switch

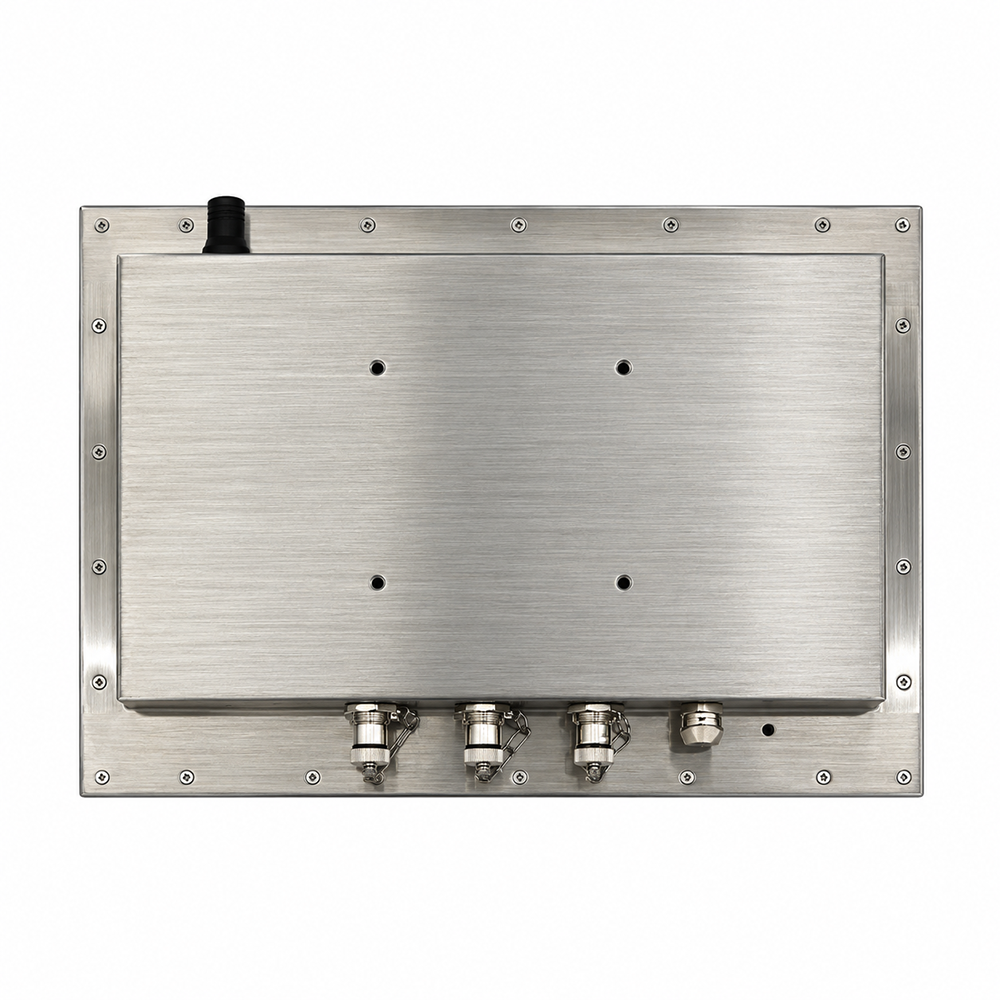

Rear view of SUS304 SUS316L stainless steel enclosure with perimeter panel mount flange holes and VESA 75 100 pattern
Rear view of SUS304 SUS316L stainless steel enclosure with perimeter panel mount flange holes and VESA 75 100 pattern

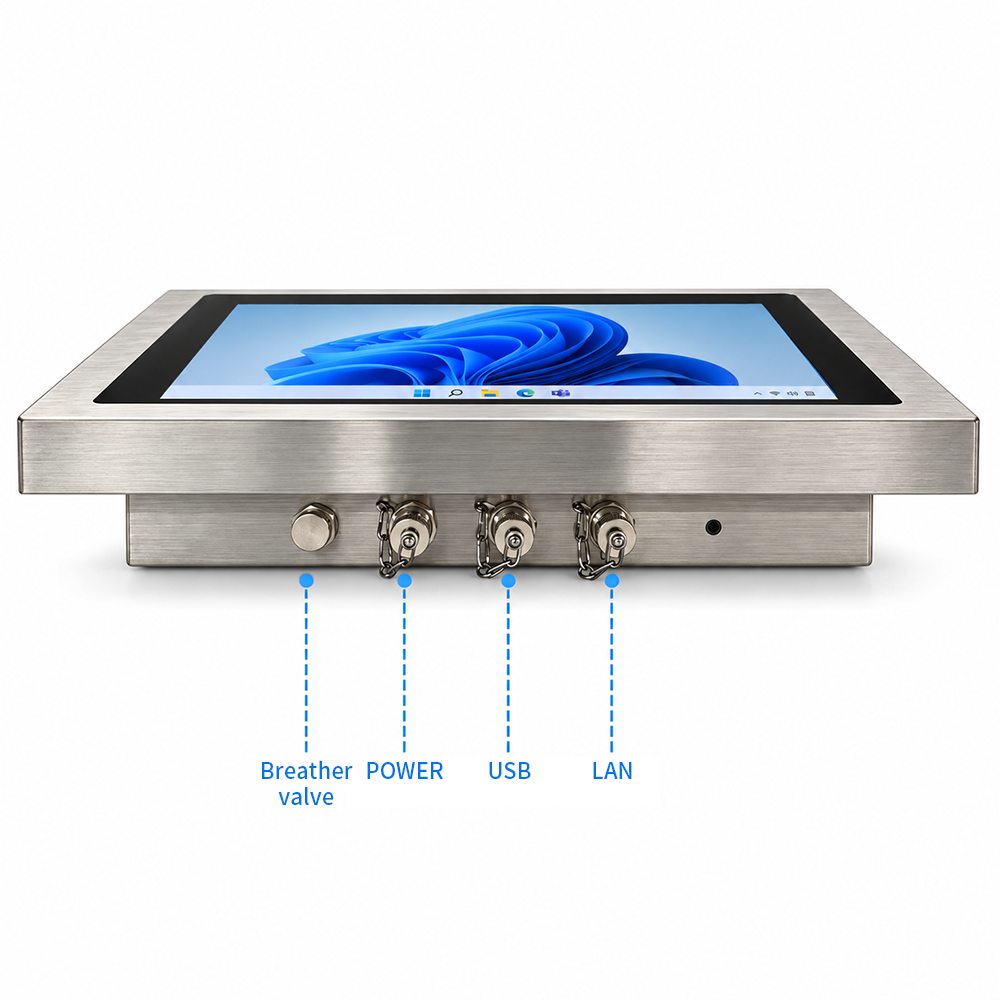

Interface layout diagram with Breather Valve Power USB and LAN waterproof aviation connectors on 12.1 inch stainless steel PC
, ,

12.1″ Full IP66/IP69K Waterproof Stainless Steel Android Industrial Panel PC, Flat Resistive Touch Screen, M12 Aviation I/O & Breather Valve (SUS304/316L Fanless)

Engineered for food processing washdown areas, chemical packaging, and pharmaceutical cleanrooms, this 12.1-inch fully sealed stainless steel Android panel PC features a true-flat 5-wire resistive touch screen, M12 circular aviation connectors, and an integrated pressure-equalizing breather valve.

  • True-Flat 5-Wire Resistive Touch: Seamless edge-to-edge flat resistive screen engineered for zero false touches, providing 100% reliable pressure-based actuation even when drenched in thick fluids, oils, or operated with heavy-duty insulated work gloves.
  • Hygienic SUS304 / SUS316L Stainless Steel: Continuous laser-welded food-grade stainless steel body with no bacterial harbor crevices, highly resistant to aggressive chemical sanitizers, caustic acids, and daily disinfection wipes.
  • Full IP66 / IP69K Ingress Protection: Fully sealed 6-sided design capable of withstanding intense high-pressure, high-temperature washdown sprays (up to 80°C and 100 bar) without water ingress.
  • Industrial M12 Circular Aviation Ports: Robust screw-locking waterproof connectors (DC Power, USB, RJ45 LAN) equipped with chain-tethered solid metal protective caps for fail-safe waterproof sealing.
  • Anti-Condensation Breather Valve: Side-mounted waterproof breathing vent automatically balances internal atmospheric pressure, completely eliminating internal moisture condensation and screen fogging during thermal shifts.
  • Fanless Wide-Temperature ARM Architecture: Powered by an energy-efficient Rockchip ARM processor running Android OS, ensuring silent operation, zero dust circulation, and reliable performance from -20°C to 70°C.
Categories: , , Tags: , , , , , , , , , ,

Hygienic Crevice-Free Engineering & True-Flat Resistive Touch Reliability

The 12.1-inch fully enclosed stainless steel Android panel PC is purpose-built for cleanroom production floors, abattoirs, food packaging lines, and chemical processing plants where liquid splashes, heavy chemical washdowns, and operator glove requirements preclude the use of standard consumer interfaces. Constructed from continuous seam-welded SUS304 (optional marine-grade SUS316L) brushed stainless steel, the chassis features an entirely smooth, crevice-free front bezel that prevents dirt and microbial accumulation, fully meeting strict HACCP and FDA hygiene directives.

Unlike capacitive screens that can be triggered accidentally by water droplets or steam, the unit utilizes a high-precision true-flat 5-wire resistive touch interface. It provides tactile, fail-safe pressure actuation regardless of water spray, dense oil film, chemical foam, or thick multi-layered safety gloves. The bottom profile incorporates heavy-duty screw-locking M12 aviation connectors and an integrated metallic waterproof breather valve, dynamically equalizing internal enclosure pressure during rapid temperature transitions between hot-water CIP washdowns and chilled cold-storage environments.

Comprehensive Hardware Specifications

System & Computing Core
Processor Platform • Rockchip RK3568 Quad-Core Cortex-A55 @ 2.0GHz (Standard Low-Power Fanless ARM SoC)
• Rockchip RK3588 Octa-Core with 6 TOPS NPU (Optional High-Performance AI Vision SoC)
• Allwinner / NXP i.MX8M Industrial Processors (Customizable upon request)
System Memory (RAM) 2GB / 4GB / 8GB High-Speed LPDDR4/LPDDR4x
Onboard Storage 16GB / 32GB / 64GB / 128GB High-Reliability eMMC 5.1 Flash
Operating Systems Android 11 / Android 12 / Android 13, Linux (Ubuntu 20.04/22.04, Debian 11), Buildroot
Display & Touch Panel
Screen Size & Ratio 12.1-inch Industrial Grade A+ TFT LCD / 4:3 Aspect Ratio
Native Resolution 1024 × 768 XGA (Optional 800 × 600 SVGA legacy resolution supported)
Luminance (Brightness) 350 nits standard (Optional 1000 nits sunlight-readable optical bonding customization)
Contrast & View Angle 1000:1 Contrast Ratio / 80°/80°/80°/80° (L/R/U/D) Full Viewing Angles
Touch Technology • True-Flat 5-Wire Industrial Resistive Touch Screen (Edge-to-edge seamless film)
• Complete immunity to fluid dripping, soapy bubbles, chemical splatter, and grease
• High-precision stylus, bare hand, heavy leather/rubber insulated glove actuation
Chassis & Waterproof Aviation I/O
Chassis Material Laser-welded brushed SUS304 Food-Grade Stainless Steel (Optional SUS316L for marine acid/alkali environments)
Ingress Protection Full IP66 / IP69K (Complete 6-sided 360° dust-tight and high-pressure hot water washdown certified)
Pressure Equalization Bottom-mounted waterproof breathable breather valve (prevents vacuum buildup, seal deformation, and internal condensation)
Waterproof Aviation Ports • 1x Circular M12/aviation screw-locking DC Power Input Connector
• 1x Circular M12/aviation screw-locking USB Port (USB 2.0 / OTG Host)
• 1x Circular M12/aviation screw-locking RJ45 Gigabit Ethernet Port
• All I/O equipped with chain-tethered solid metal waterproof sealing caps
• Optional: Waterproof RS232 / RS485 serial aviation port expansion available
System Switch 1x IP67 Waterproof stainless steel push-button power switch with integrated LED status ring
Power, Cooling & Environmental
Power Input Range DC 12V Input (Optional DC 9V ~ 36V wide-range industrial voltage module with reverse-polarity protection)
Thermal Dissipation 100% Fanless thermal conduction directly through the stainless steel chassis (cleanroom compliant, zero dust circulation)
Operating Temperature -20°C to 70°C (-4°F to 158°F) wide operating temperature range (Optional -30°C cold storage support)
Mounting Configurations Perimeter Flange Flush Panel Mount (multi-screw sealing) + Rear Standard VESA 75×75mm / 100×100mm swing-arm support
Certifications & Testing CE, FCC Class A, RoHS, IP66/IP69K Ingress Test Report, ISO9001
