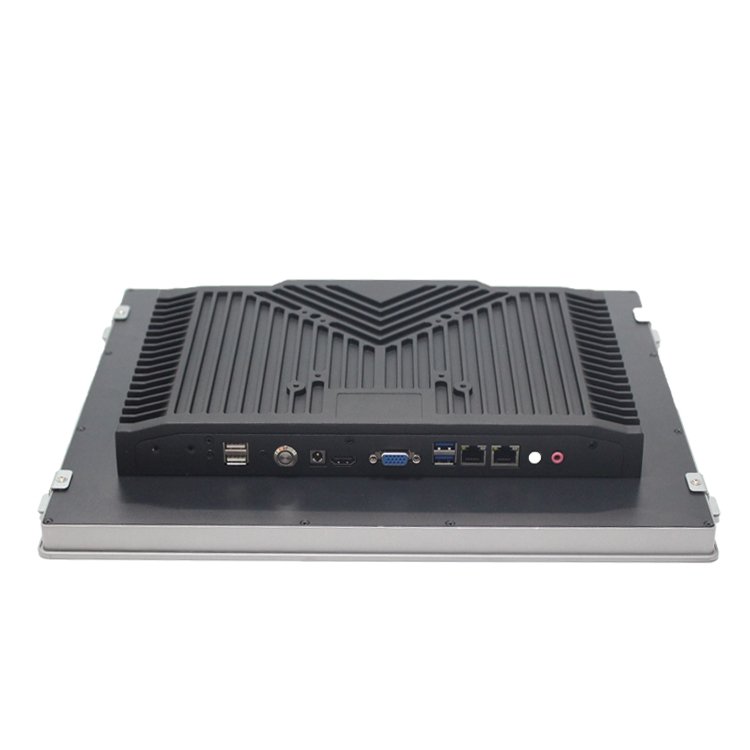

Bottom interface layout with 2x LAN HDMI VGA 4x USB DC power lock jack of 15 inch industrial PC

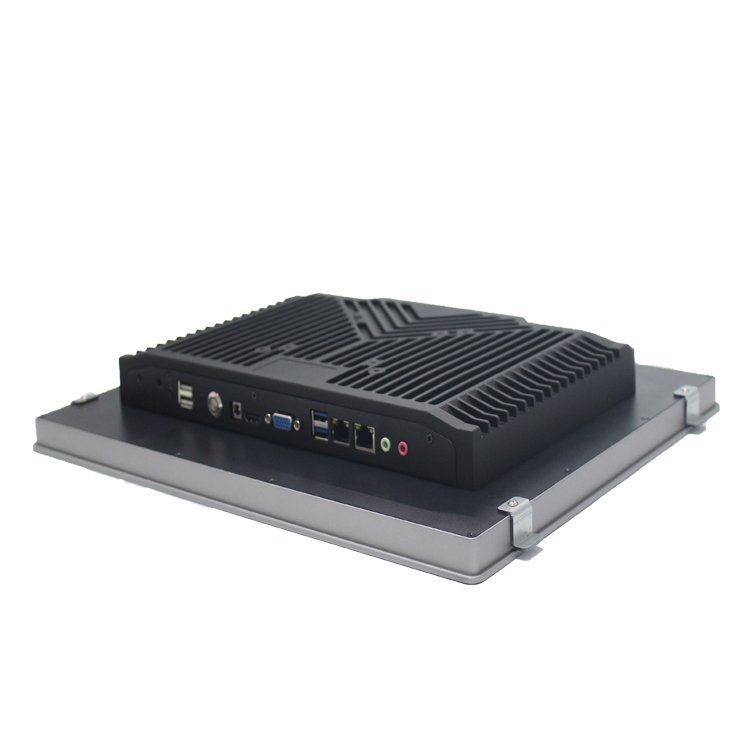

Side panel mount clips and slim aluminum front bezel of 15 inch industrial panel computer

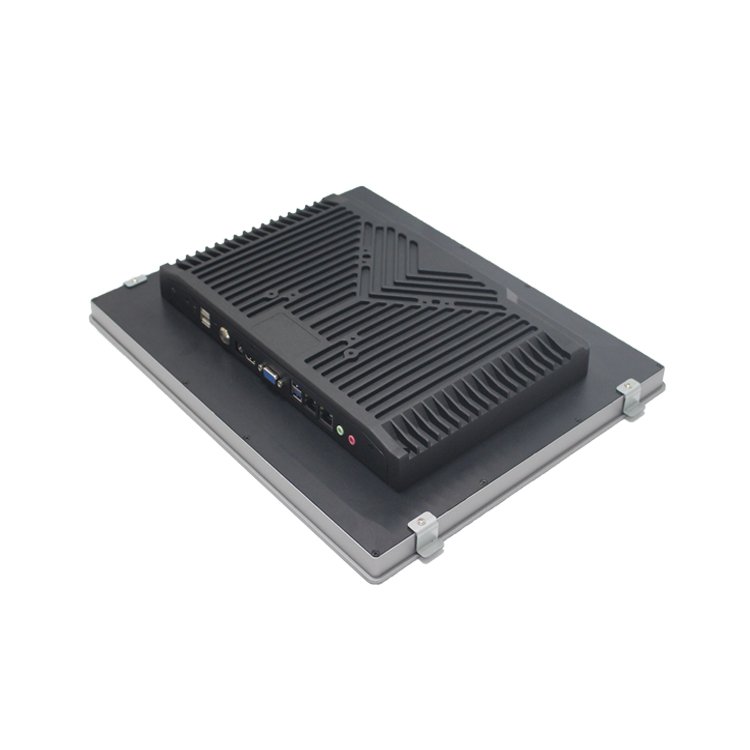

Heavy-duty die-cast aluminum rear heat sink chassis with V-pattern cooling fins for fanless operation
, ,

15″ Die-Cast Fanless Industrial Panel PC IP65 Capacitive Touch (Dual LAN, HDMI, VGA, 300-1500 Nits, -20°C~70°C)

Engineered for mission-critical industrial automation, CNC machinery control, and smart outdoor kiosks, this 15-inch fanless industrial panel PC combines a heavy-duty die-cast aluminum passive cooling chassis with rugged IP65 front protection.

  • Heavy-Duty Die-Cast Chassis: Solid die-cast aluminum enclosure with integrated cooling fins for 100% silent, fanless, and reliable 24/7 passive thermal dissipation.
  • IP65 Ingress Protection: True-flat front bezel sealed with an industrial rubber gasket, fully resistant to dust ingress, water spray, and oil splashes.
  • Projected Capacitive Multi-Touch: Responsive 10-point PCAP touch screen with 7H surface hardness, supporting gloved hands and water droplet immunity.
  • Sunlight Readable Customization: Standard 300 nits brightness with optional high-brightness customization ranging from 250 up to 1500 nits for outdoor readability.
  • Wide Operating Temperature: Industrial-grade components engineered for continuous operation in severe thermal conditions from -20°C to 70°C.
  • Industrial I/O Connectivity: Equipped with dual GbE LAN, HDMI + VGA dual independent displays, 4x USB ports, and a top DB9 serial COM port.
Categories: , , Tags: , , , , , , ,

Heavy-Duty Die-Cast Construction & High-Efficiency Fanless Passive Cooling

The 15-inch die-cast industrial panel PC is engineered to meet the demanding reliability requirements of smart factories, machine automation, and outdoor energy kiosks. Built with an all-in-one die-cast aluminum rear housing featuring specialized V-shaped and vertical heat-dissipation fins, it eliminates mechanical cooling fans to prevent dust intake and mechanical wear. Combined with an IP65-sealed front bezel and an industrial wide-temperature design (-20°C to 70°C), this unit guarantees uninterrupted 24/7 productivity under rigorous industrial environments.

Comprehensive Hardware Specifications

System & Computing Core
Processor Platform • Intel® Celeron® J6412 / J1900 Quad-Core (Default Low Power Fanless)
• Optional: Intel® Core™ i3 / i5 / i7 (6th to 11th Gen U-Series) customizable
System Memory 1x DDR4 / DDR3L SO-DIMM slot, 4GB / 8GB / 16GB / 32GB High-Speed RAM
Storage Options • 1x M.2 NVMe / mSATA SSD (128GB / 256GB / 512GB / 1TB)
• 1x Internal 2.5″ SATA III HDD/SSD drive bay supported
Graphics & Audio Integrated Intel® UHD / HD Graphics, Realtek ALC662 High-Definition Audio Controller
Operating System Windows 10 Pro / IoT Enterprise, Windows 11, Linux (Ubuntu, Debian)
Display & Touch Panel
Screen Size & Ratio 15.0-inch Industrial Grade TFT LCD / 4:3 Aspect Ratio
Native Resolution 1024 × 768 XGA (Industrial Grade A+ Panel)
Luminance (Brightness) 300 nits standard (Optional 250 to 1500 nits high-brightness sunlight readable customization)
Contrast & View Angle 1000:1 Contrast Ratio / 80°/80°/80°/80° (L/R/U/D) Wide Viewing Angles
Touch Technology Projected Capacitive (PCAP) 10-Point Multi-Touch, ≥7H Surface Hardness, Anti-Scratch (5-Wire Resistive optional)
Chassis & External I/O
Chassis Construction Precision CNC aluminum front bezel + heavy-duty die-cast aluminum rear heat sink housing
Front Ingress Protection IP65 dust-tight and water-spray proof front surface sealed with industrial silicone gasket
Ethernet (LAN) 2x RJ45 Gigabit Ethernet ports (Intel/Realtek GbE controllers, Wake-on-LAN supported)
Serial Interfaces (COM) 1x DB9 RS232/RS485 COM port on top chassis (Expandable up to 4x COM via internal headers)
USB & Video Output • 2x USB 3.0 Type-A + 2x USB 2.0 Type-A
• 1x HDMI Port + 1x VGA Port (Supports independent synchronous/asynchronous dual display)
Audio & Expansion 1x 3.5mm Line-out, 1x 3.5mm Mic-in, 1x SMA Antenna Port for Wi-Fi / 4G LTE wireless connectivity
Power, Cooling & Environmental
Power Input & Switch • DC 12V lockable DC-in jack (Optional 9V~36V wide DC voltage input module)
• 1x Industrial metal push button power switch with integrated LED status light
Thermal Management Fanless passive cooling architecture via high-conductivity die-cast aluminum rear heat sink
Operating Temperature -20°C to 70°C (-4°F to 158°F) wide temperature industrial reliability
Mounting Options Panel Mount (embedded installation clips included), Standard VESA 75×75mm / 100×100mm cantilever mounting
Certifications & Quality CE, FCC, RoHS, ISO9001
