Precision CNC Aluminum Craftsmanship & Heavy-Duty Steel Construction

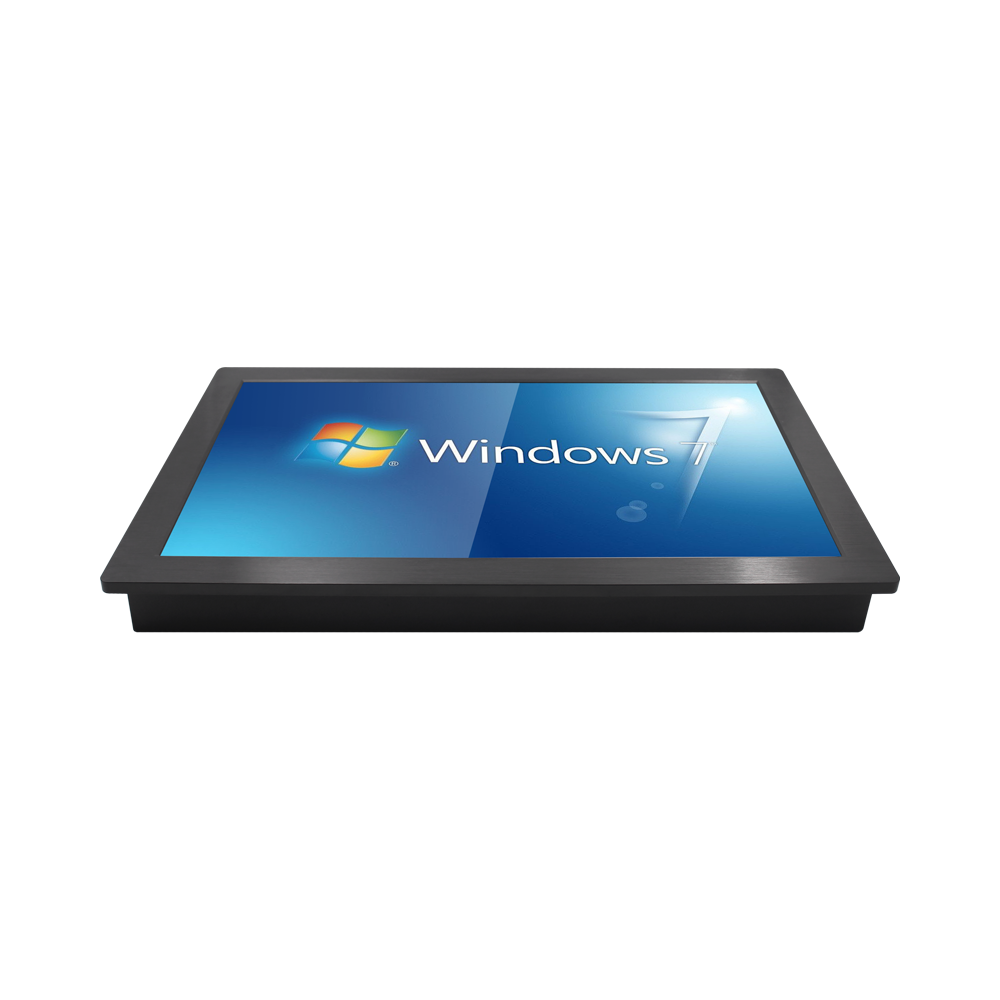

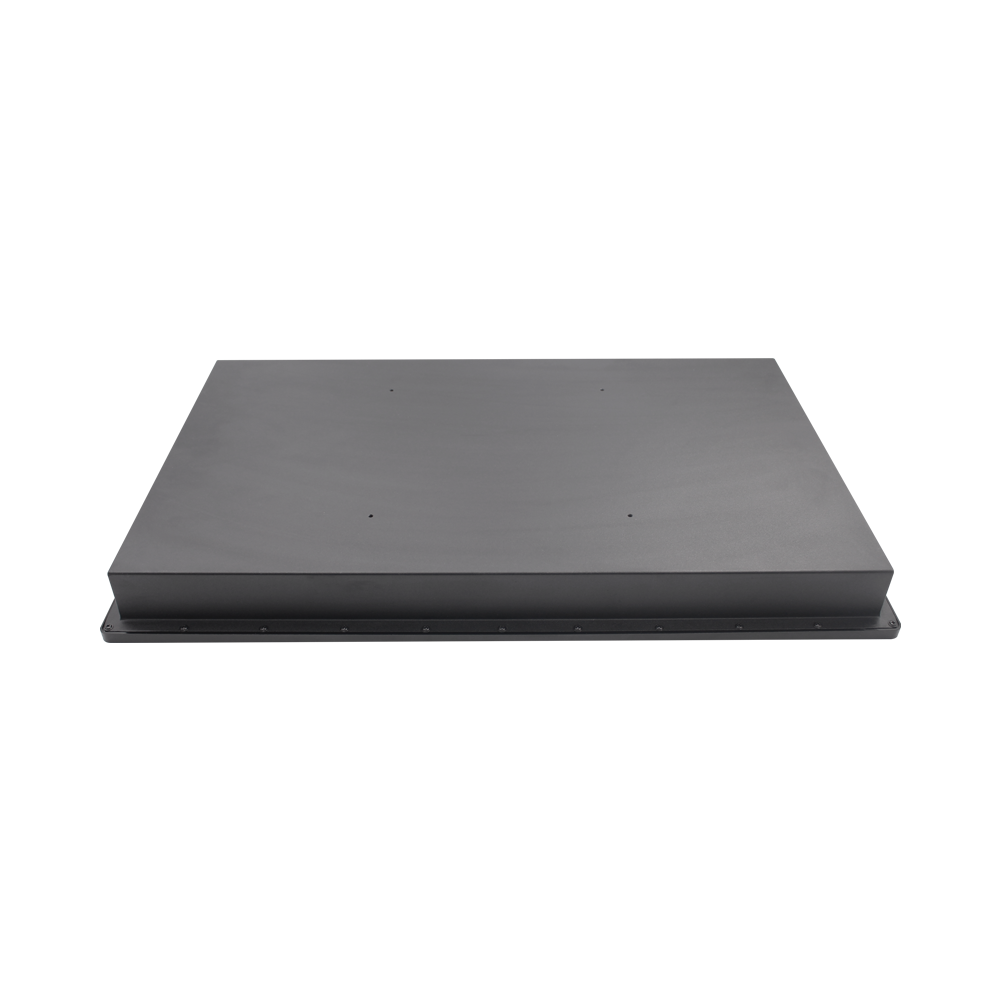

The 23.8-inch full waterproof industrial panel PC is engineered for demanding industrial control environments where large-screen visualization, structural impact resistance, and complete liquid/particulate ingress protection are essential. The front enclosure is precision-milled from high-grade CNC aluminum alloy with an anodized brushed finish, providing an elegant yet extremely durable barrier against physical shock. The rear chassis is constructed from heavy-gauge powder-coated structural steel, delivering outstanding heat conduction and EMI shielding.
The unit features a complete 6-sided waterproof architecture with dedicated circular screw-locking aviation connectors across all external ports—including Power, Dual Intel Gigabit LAN, USB, RS232, and high-speed RS422/RS485 serial communication. Every interface is equipped with a tethered protective seal cap, ensuring fail-safe reliability in outdoor automated terminals, marine vessels, smart energy systems, and dusty CNC production floors.
Comprehensive Hardware Specifications
| System & Computing Core | |
| Processor Platform | • Intel® Celeron® J6412 / J1900 Quad-Core (Ultra-Low Power Fanless Architecture) • Intel® Core™ i3 / i5 / i7 (6th, 8th, 10th, 11th Gen U-Series) High-Performance Computing • Rockchip RK3568 / RK3588 (Optional for Industrial Android Solutions) |
| System Memory | 1x DDR4 / DDR3L SO-DIMM slot, 4GB / 8GB / 16GB / 32GB High-Speed RAM |
| Storage Configuration | • 1x High-speed M.2 NVMe / mSATA SSD (128GB / 256GB / 512GB / 1TB) • 1x Internal shock-mounted 2.5″ SATA III SSD bay supported |
| Operating Systems | Windows 10 Pro / IoT Enterprise, Windows 11, Linux (Ubuntu, Debian), Android (ARM models) |
| Display & Touch Panel | |
| Screen Size & Ratio | 23.8-inch Industrial Grade A+ TFT LCD / 16:9 Widescreen Ratio |
| Native Resolution | 1920 × 1080 Full HD (1080P Widescreen Industrial Display) |
| Luminance (Brightness) | 300 nits standard (Optional: 1000 / 1200 / 1500 nits Sunlight Readable High-Brightness with Auto-Dimming Ambient Light Sensor) |
| Contrast & View Angle | 1000:1 Contrast Ratio / 89°/89°/89°/89° (L/R/U/D) Full Viewing Angles |
| Touch Technology | • True-Flat Projected Capacitive (PCAP) Multi-Touch Screen, ≥7H Hardness Tempered Glass • Anti-Glare (AG), Anti-Reflective (AR), Anti-Fingerprint (AF) Coating & Optical Bonding available • Supports thick industrial gloves, wet-finger operation, and water droplet rejection |
| Chassis & Waterproof I/O | |
| Chassis Construction | Precision CNC-machined anodized aluminum front bezel + rugged powder-coated cold-rolled steel rear cover |
| Ingress Protection | Full IP65 / IP66 (Complete 6-sided dust-tight & all-round water-jet resistance) |

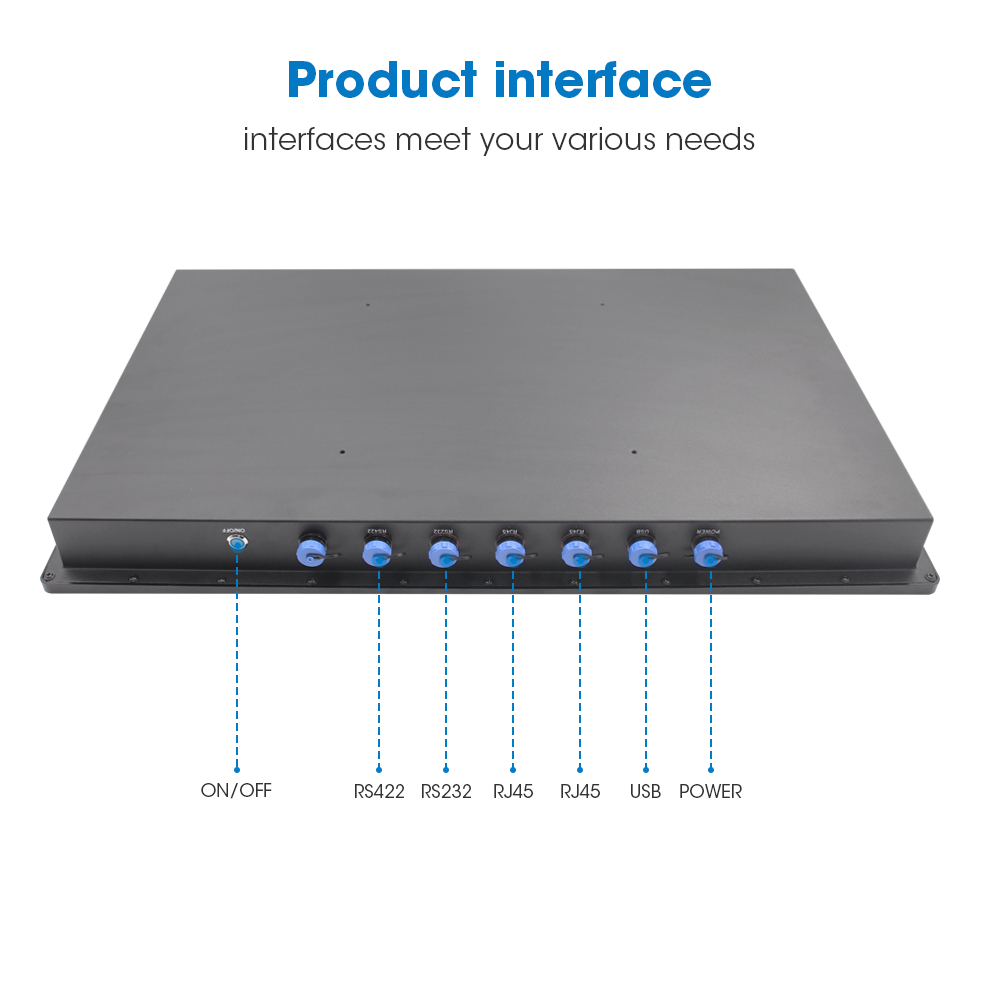

| Waterproof Aviation I/O | • 1x Circular Waterproof DC Power Input Connector • 1x Circular Waterproof USB Port (USB 2.0 / USB 3.0 Type-A) • 2x Circular Waterproof RJ45 Gigabit Ethernet Ports (LAN1 / LAN2) • 1x Circular Waterproof DB9 RS-232 Serial COM Port • 1x Circular Waterproof DB9 RS-422 / RS-485 Serial COM Port • 1x Circular Waterproof Expansion Port (Reserved for additional USB/Audio/GPIO) • All I/O equipped with flexible silicone protective dust and water sealing caps |
| System Switch | 1x IP67 Waterproof metal push-button power switch with integrated LED indicator ring |
| Power, Cooling & Environmental | |
| Power Input Range | DC 12V Input (Optional DC 9V ~ 36V wide-range voltage input with over-voltage, over-current, and reverse-polarity protection) |
| Thermal Dissipation | Conduction-cooling fanless architecture through heavy-duty aluminum/steel chassis (Zero dust accumulation) |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) wide temperature operation (Optional -30°C to 80°C customization) |
| Mounting Configurations | Front-flange perimeter screw-locking flush panel mount + Rear standard VESA 100×100mm cantilever swing-arm installation |
| Certifications & Testing | CE, FCC Class A, RoHS, IP65/IP66 Ingress Test Report, ISO9001 |
