The INNODA Tournament Marine Fishing Touch Monitor series is engineered to support high-stakes tournament angling, commercial charter operations, and professional guide vessels. Available in four standardized marine geometries—12.1-inch, 15.8-inch, 18.5-inch, and 21.5-inch—this display family empowers boat rigging specialists, marine electronics dealers, and competitive teams to deploy high-resolution visual stations without the costly lock-in of single-vendor multifunction displays.

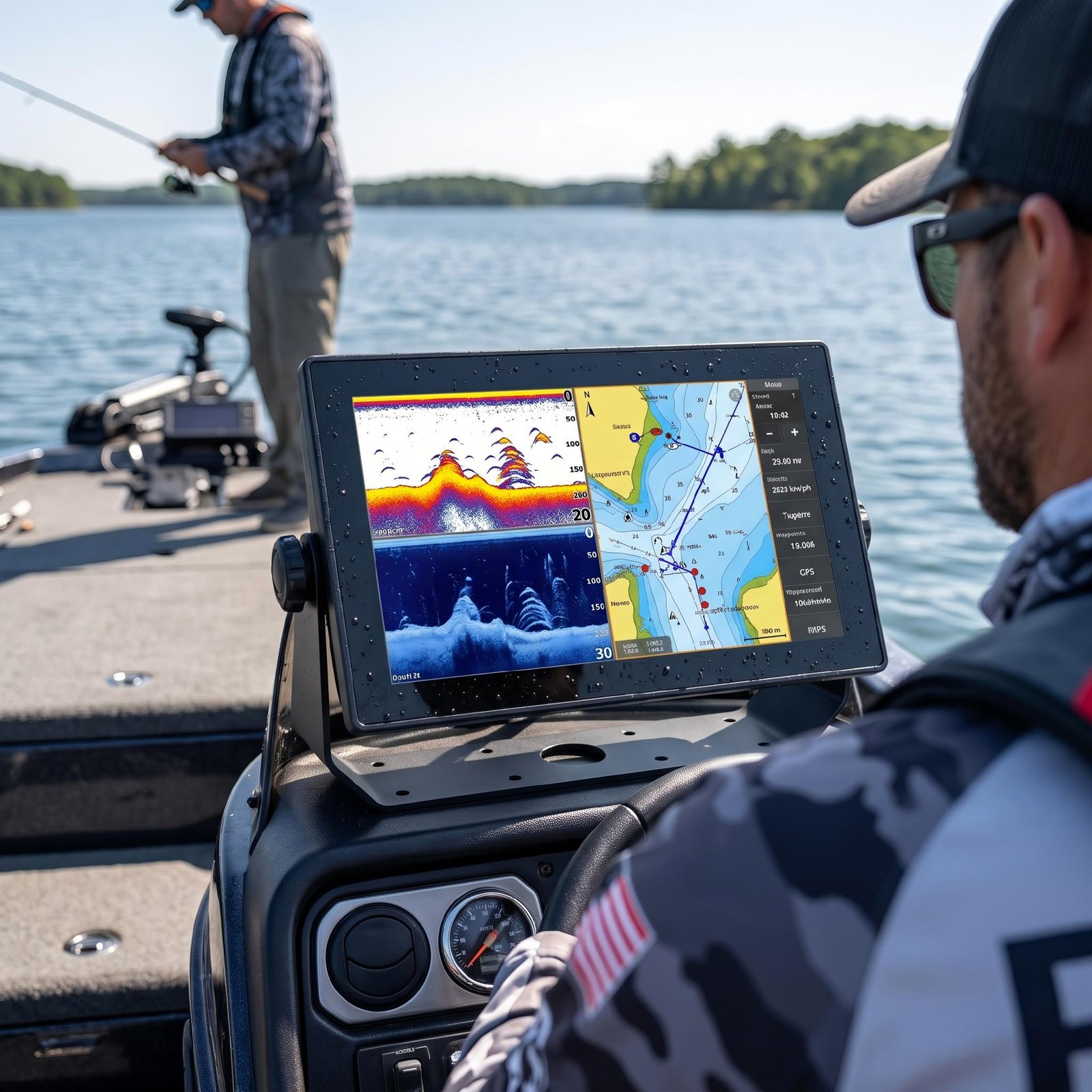

In modern tournament angling, success depends on seamless coordination between the bow deck caster and the console navigator. The helm pilot reads bathymetric depth contours and bottom structure in real time, steering the vessel along submerged creek beds while guiding the caster to feeding gamefish. To maintain tactical advantage, displays must deliver zero-latency sonar redraws, survive intense hull slamming at 60 MPH, eliminate polarized sunglasses blackout, and reject false touches from flying spray.
Key Architectural & Engineering Highlights
- Four Standardized Marine Formats for Dual-Station Rigging:
- 12.1″ Model: The go-to footprint for bow casting deck foot-pedal mounts, secondary tower pods, and shallow skiff consoles.
- 15.8″ Model: The universal standard for dual-console bass boat dashes, dedicating one screen to high-speed mapping and the second to live-sonar imaging.
- 18.5″ Model: Wide-aspect visual powerhouse optimized for simultaneous multi-panel splitting (Forward Live Sonar, DownScan, SideScan, and Lake Contours).
- 21.5″ Model: Flagship multi-transducer bridge monitor for offshore tournament catamarans, saltwater center consoles, and charter vessels.
- Zero Latency for Live Forward-Facing Sonar: When tracking fast-moving pelagic predators or reacting to fish strikes in real time, standard monitors with heavy internal processing introduce video lag. INNODA marine monitors feature direct, hardware-level video decoders that render live transducer pings instantaneously with zero perceived motion blur.
- 360-Degree Polarized Sunglasses Visibility (Quarter-Wave Technology): Built with integrated optical retardation filters that convert linearly polarized LCD output into circular polarization. Anglers wearing polarized fishing glasses enjoy full-color clarity and zero dark extinction zones from any standing or seated vantage point.
- Vacuum Optical Bonding (Anti-Condensation): Offshore angling exposes hardware to sudden thermal shocks, shifting from cool dawn air to intense midday solar heat. By sealing the cover glass to the LCD matrix with solid optical silicone, internal moisture condensation and air-gap fogging are permanently prevented.
- Salt-Mist & Spray-Immune Marine PCAP: Specialized controller firmware calculates touch surface area and impedance variations, rejecting continuous water sheeting, flying rain, and wet deck glove contact while maintaining precision waypoint touch response.
- Heavy-Gauge Anti-Vibration Trunnion Mounting: Reinforced powder-coated aluminum U-brackets with high-friction knurled locking knobs maintain your designated viewing angle even during extreme wave pounding and high-speed wake crossings.
Product Matrix by Rigging Position & Boat Layout
| Screen Size | Resolution & Aspect | Luminance & Optical Bond | Recommended Rigging Location |
|---|---|---|---|
| 12.1-Inch | 1280 × 800 (16:10) | 1000–1500 nits (Full Optical Bond) | Bow deck casting bracket, compact tiller consoles, secondary bridge wings |
| 15.8-Inch | 1920 × 1080 Full HD (16:9) | 1500 nits (Full Optical Bond) | Dual-screen helm console dash, offshore tournament skiffs |
| 18.5-Inch | 1920 × 1080 Full HD (16:9) | 1500 nits (Full Optical Bond) | Multi-split live sonar helm, commercial charter guide stations |
| 21.5-Inch | 1920 × 1080 Full HD (16:9) | 1500 nits (Full Optical Bond) | Main glass bridge consoles, sportfishing tournament catamarans |
Hardware Architecture & Connectivity Specifications
| System Parameter | Engineering Specification |
|---|---|
| LCD Panel Type | Industrial IPS Wide-Viewing Active Matrix TFT LCD (89°/89°/89°/89° Symmetrical) |
| Luminance & Dimming | 1500 nits ultra-high brightness; Smooth 0% to 100% PWM dimming for night vision preservation |
| Optical Treatment | Full Vacuum Optical Silicone Adhesive (OCA/LOCA) + Circular Polarizer + Anti-Reflective (AR) |
| Glass Durability | 7H Hardness Chemically Toughened Cover Glass with Anti-Smudge Oleophobic Coating |
| Touch Sensor | 10-Point Marine PCAP with Tuned Water Rejection & Tournament Glove Mode |
| Video / Signal Inputs | 1 × HDMI 2.0, 1 × DVI-D, 1 × DisplayPort, 1 × VGA, 2 × BNC Composite/AHD, 1 × USB Touch |
| Ingress Protection | Full IP67 Front Washdown Proof; IP65 Sealed Corrosion-Resistant Rear Housing |
| Power Input Range | Isolated DC 9V–36V with Reverse Polarity Lockout and High-Current Trolling Motor Surge Chokes |
| Environmental Tolerance | Operating: -20°C to 70°C (-4°F to 158°F); Tested for ASTM B117 Salt Spray & 50G Impact Shock |
| Mounting Flexibility | Heavy-Duty Aluminum Trunnion U-Bracket, Rear VESA 75×75 / 100×100 mm, Console Flush Mount |
| Marine Black-Box Support | Plug-and-play with Garmin, Lowrance, Simrad, Furuno, Raymarine black-boxes, and TimeZero PCs |
B2B Target Markets & Commercial Rigging Opportunities
- Bass Boat & Skiff Rigging Shops: Offer tournament anglers multi-screen setups with open-architecture flexibility at competitive margins.
- Professional Charter & Guide Fleets: Equip dual-helm vessels with independent display feeds to let paying guests track sonar targets while the captain navigates.
- Boat Builders & Marine OEMs: Consolidate helm dash manufacturing across 12.1″, 15.8″, 18.5″, and 21.5″ displays using uniform styling, brackets, and wiring harnesses.
- Commercial Fishing Integrators: Supply reliable, washdown-rated displays for deep-sea acoustic sounders and vessel monitoring systems.
Need custom console flush-mount templates, private-label branding, specialized breakout cables, or 3D CAD models? Contact INNODA’s marine engineering team to request commercial pricing and evaluation test units.
