Commercial fishing vessels, offshore tugboats, and naval navigation stations operate in extreme marine environments. Open helm stations and flying bridges expose navigation electronics to direct midday tropical sunlight, dense salt fog, corrosive green-water spray, and heavy diesel vibration.
When engineering marine helm displays and chartplotter interfaces, consumer marine screens often suffer from optical wash-out or water-induced touch freezes. Selecting purpose-built commercial displays requires addressing sunlight luminance, water-rejection firmware, and hermetic corrosion sealing.
1. Conquering Direct Solar Glare: Why 1500 Nits is Mandatory
Open water lacks ambient shading. Solar irradiance reflected off water waves easily exceeds 15,000 lux. Standard 300-nit displays turn completely dark under these conditions.
- 1500 Nits Ultra-High Backlight: Deploying hardware such as the 1500 Nits Marine Fishing Touch Monitor ensures charts, radar overlays, and sonar profiles remain readable from wide viewing angles under direct midday sun.
- Polarized Lens Compatibility: Skippers wear polarized sunglasses to cut water glare. Standard LCD polarizers produce black blind spots (“polarizer blackout”) when viewed through polarized lenses. Marine-grade panels integrate circular or linear depolarization films to guarantee 360-degree clear visibility.

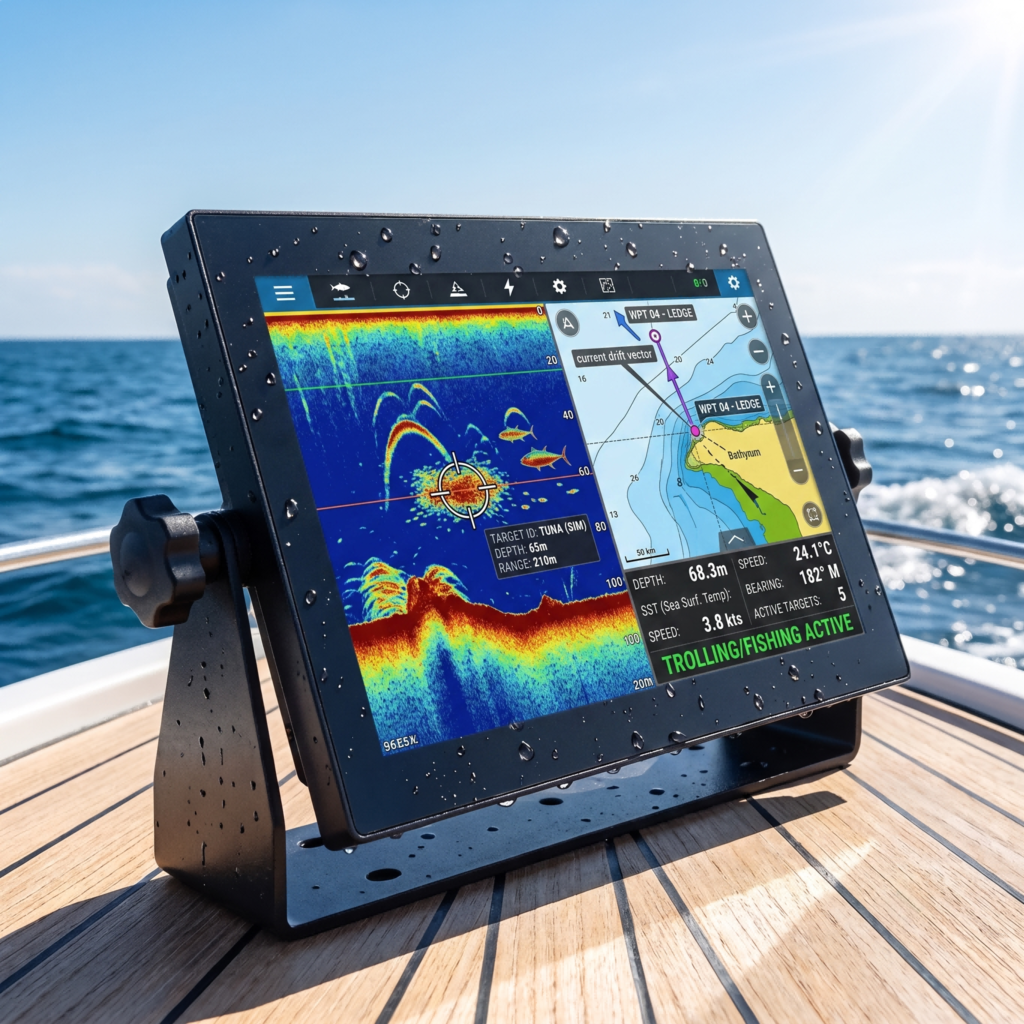

1500 Nits Sunlight-Readable Marine Fishing Touch Monitor
Engineered for open-water fishing vessels and commercial helm consoles. Features a 1500-nit optically bonded panel, polarized sunglass readability, IP67 waterproof sealing, and wide DC 9V–36V power input.
2. Salt-Fog Resistance: 304/316 Stainless Steel vs. Coated Aluminum
Salt spray continuously corrodes perimeter seals and aluminum housings. Salt crystallization can compromise internal circuit boards.
For deck-mounted machinery and open consoles, units engineered with corrosion-proof enclosures, such as the 1000 Nits IP67 Outdoor Stainless Steel Panel PC, provide complete resistance to salt pitting and humidity creep, backed by full IP67 watertight sealing.
Marine Display Specification Matrix
| Operational Parameter | Standard Marine Screen | Commercial Marine Grade |
| Backlight Luminance | 350–500 nits (Washed out in sun) | 1000–1500 nits Sunlight Readable |
| Ingress Protection | Front IP65 only (Rear unsealed) | Full IP67 All-Around Hermetic Seal |
| Chassis Material | Painted aluminum or plastic | Marine Grade SUS304 / CNC Aluminum |
Upgrading your vessel navigation bridge or fishing sonar console? Contact INNODA’s marine engineering team for technical specifications and custom mounting solutions.
