True-Flat Seamless Bezels: Eliminating Gasket Traps, Liquid Siphoning, and Dust Crevices in Cleanrooms

In pharmaceutical compounding suites, semiconductor cleanrooms, and food packaging plants, mechanical human-machine interfaces must satisfy strict sanitary guidelines. Beyond internal processing power and IP ratings, the mechanical profile of the front bezel dictates whether an operator interface can be sanitized thoroughly or becomes a continuous source of microbial and particle contamination.

Traditional industrial touch displays feature a raised outer metal or plastic bezel surrounding the touch glass. While cost-effective to assemble, this stepped mechanical rim creates a physical 90-degree corner that traps biological residue, cleaning fluid puddles, and airborne dust particles. Transitioning to a True-Flat Seamless Front Bezel Architecture permanently eliminates these maintenance hazards.

Mechanical Architecture: Stepped Bezel vs. True-Flat Seamless Glass

Engineering Feature	Traditional Stepped Raised Bezel	True-Flat Seamless Glass Architecture
Front Transition Profile	Raised 2 mm to 4 mm rim over touch glass	Continuous edge-to-edge flush glass surface
Liquid & Biological Trapping	Fluid pools in perimeter grooves; harbors mold	Liquids run off freely; zero fluid pooling
Wipe-Down Sanitation Speed	Requires dental picks/brushes to clear corners	Rapid single-swipe microfiber wipe-down
Liquid Siphoning via Capillary Action	High risk through worn edge perimeter gaskets	Sealed beneath continuous tempered glass cover
Touch Corner Ergonomics	Raised lip interferes with edge touch gestures	Smooth, unrestricted swipe gestures to glass edge

Eliminating the “Capillary Puddle” Risk

In cleanrooms and food lines, sanitation personnel spray alcohol disinfectants and foam cleaners continuously:

• With stepped bezels, surface tension causes liquid to cling to the inner corner where the raised frame meets the touch glass.
• Even after an operator wipes the screen dry, residual cleaning fluid remains trapped in the groove. Over weeks of thermal cycling, capillary action siphons this fluid beneath the bezel gasket, corroding internal touch sensor flex cables.
• True-flat designs bond the cover glass edge-to-edge across the front flange. Liquids have no ledge to pool on, rolling off the screen naturally during gravity drainage.

Optimizing True-Flat Enclosures for Industrial Machinery

Integrating true-flat front faces into machine frames requires rigid mechanical backing:

• Thin plastic bezels can flex under tight panel-mount clamping, introducing uneven gasket compression that leads to corner touch drift.

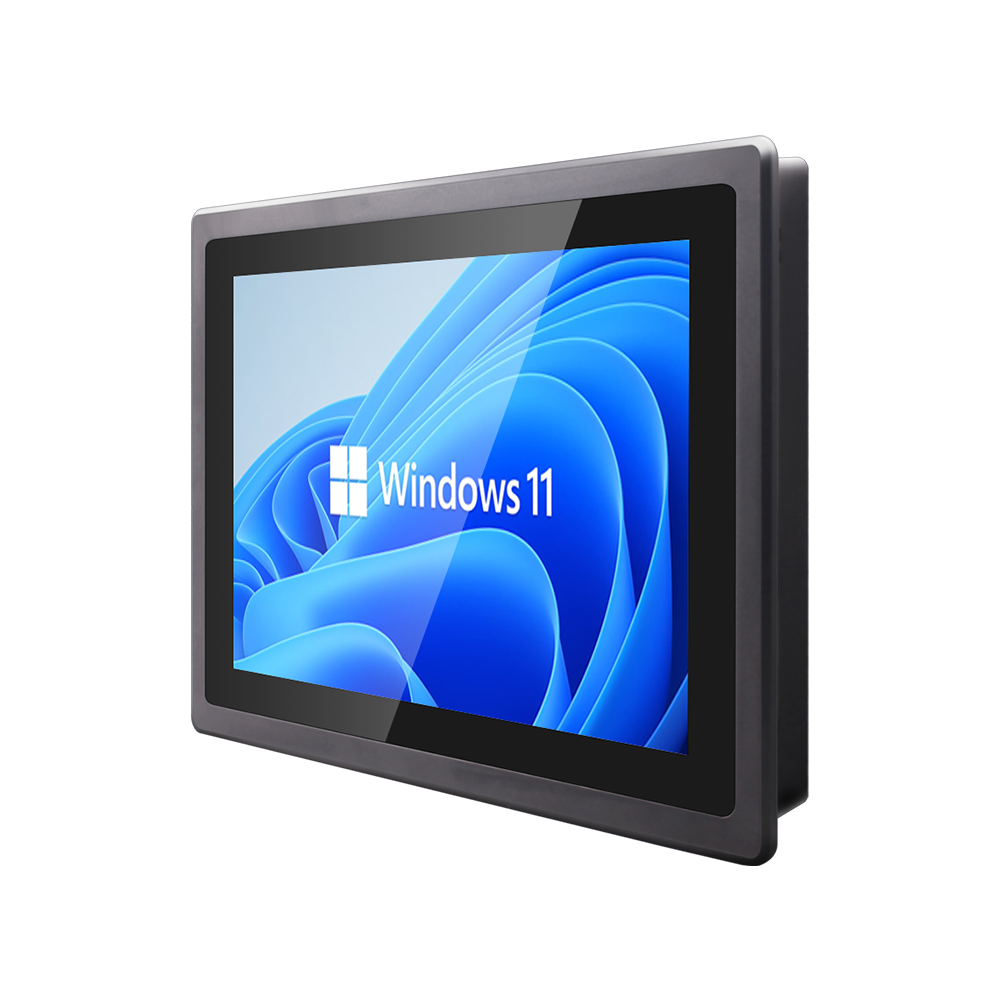

• Deploying platforms like the Fanless Industrial Panel PC with 6x COM Ports pairs a true-flat IP65 front glass face with a heavy-duty ribbed aluminum heatsink back cover, ensuring uniform gasket sealing across electrical cabinet doors.
• For larger supervisory control stations, displays such as the 21.5″ CNC Aluminum Panel Mount Touch Industrial Monitor utilize precision CNC-machined front aluminum flanges to support flush, crevice-free mounting in high-visibility control rooms.

Engineering Recommendations for Cleanroom Designers

0. Mandate IP65 True-Flat Fronts for all operator interfaces inside ISO Class 5 to Class 8 cleanrooms to comply with sanitary washdown directives.
1. Specify Chemically Toughened 7H Glass to prevent fine abrasive cleaning agents from hazing the optical surface.
2. Verify Solvent Compatibility of the outer glass perimeter adhesive against aggressive cleanroom reagents like IPA (isopropyl alcohol) and hydrogen peroxide.

Need 3D CAD STEP models for flush panel-mount cutouts or cleanroom chemical resistance reports? Contact INNODA’s mechanical integration engineering team for technical specifications and evaluation samples.
